UKP

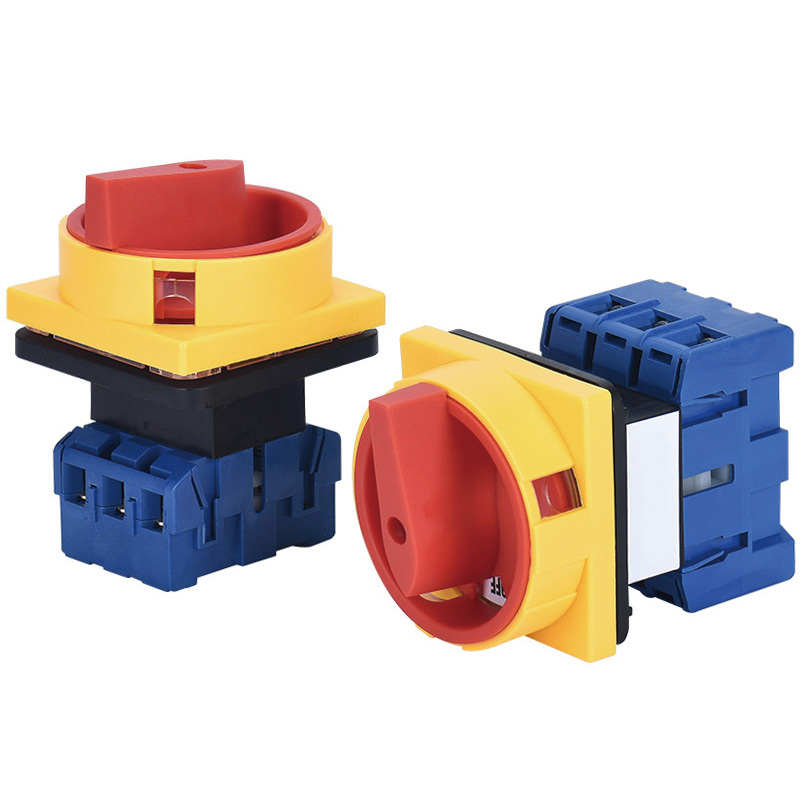

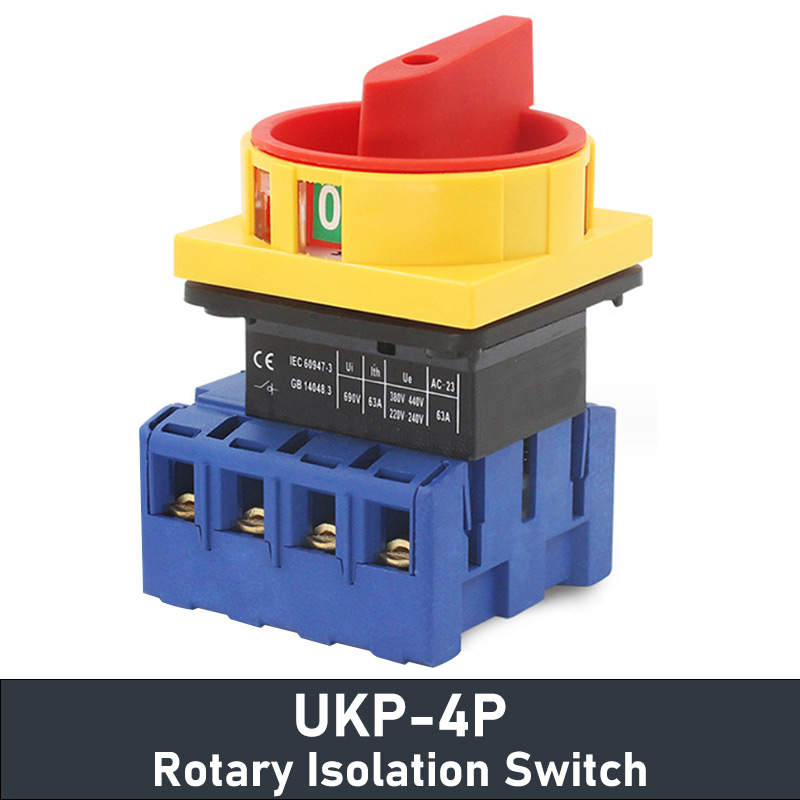

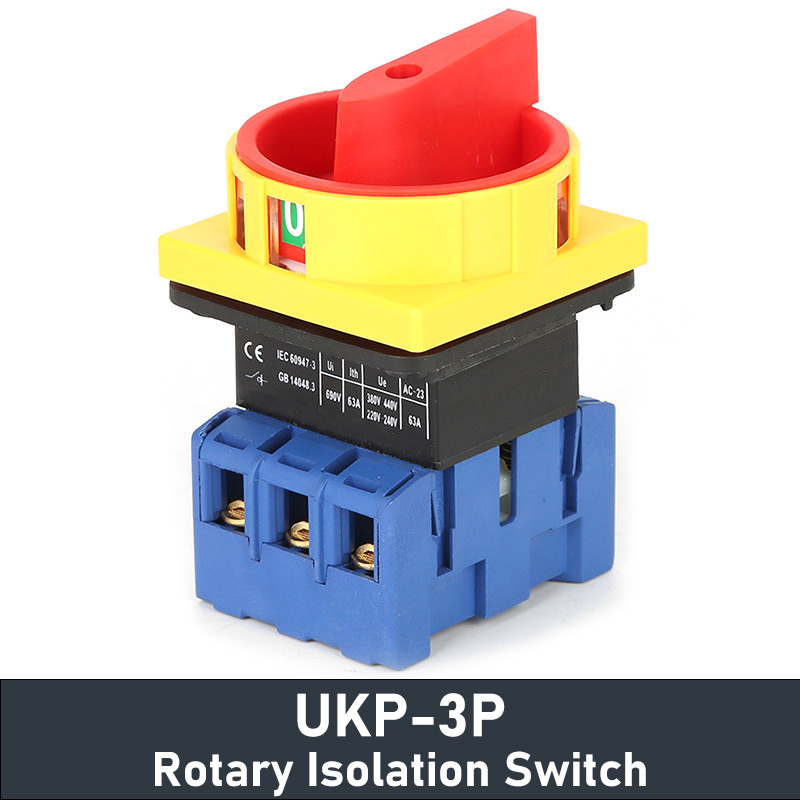

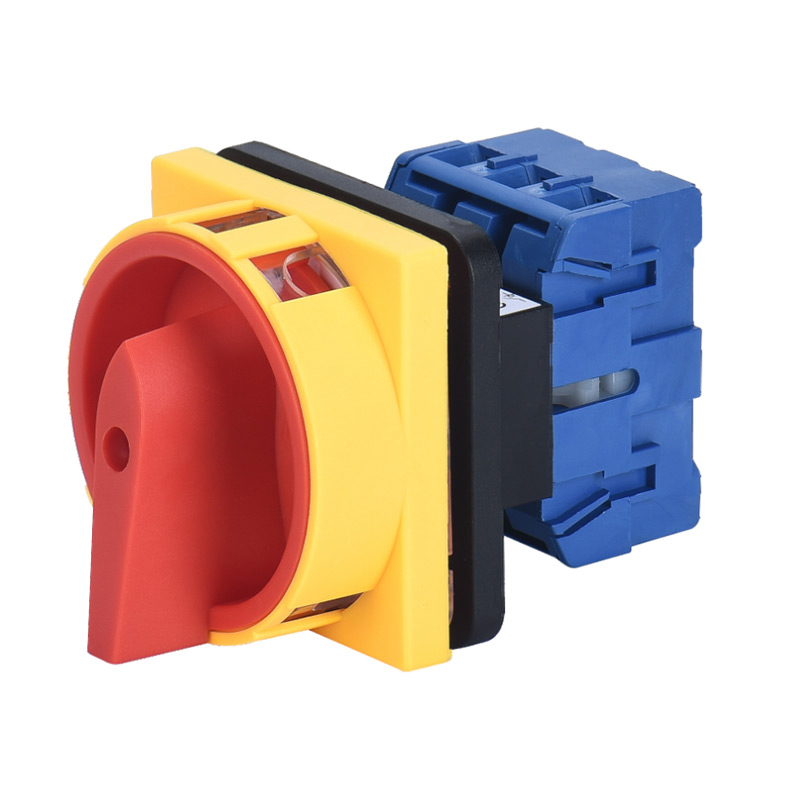

UKP IP20 Waterproof Padlock Rotary Isolator Cam Switch OFF-ON Disconnect Switch 32A 63A 125A

Pole:
  • 3P
  • 4P
Current:
  • 32A
  • 63A
  • 125A
Quantity:




Application

- Used as the main switch for ventilation equipment, air conditioning, and water systems, it can also directly control small capacity AC motors.




AC Breaker & Box
Technical Data
Download




Product Description

ModelUKP-32UKP-63UKP-125
Poles3P/4P
Conventional Thermal Current Ith (A)32A63A125A
Operating Voltage Ue (V)220V~440V220V~440V220V~440V
Rated Value Ie/kwAC-21A  A/KW32/-  32/-63/-  63/-125/-  125/-
AC-22A  A/KW32/-  32/-63/-  63/-125/-  125/-
AC-23A  A/KW22/5.5  22/1143/11  43/2270/22  70/37
AC-3  A/KW15/4  15/7.536/11  36/18.557/18.5  57/30
Standards CompliantCB14048.3  IEC60947-3
Ambient Temperature-25°C~+40°C
Altitude≤2000 Meter
Humidity+40°C is not more than 50%, the wettest month is 90%
Waterproof And Dustproof GradeIP20
Usage Frequency8-hour working system, with an operating frequency of 30 times/h
Electrical Life10000 times for AC-23, 6000 times for AC-3, and 2000 times for auxiliary contacts

Outline Dimension Drawing

ModelDimensions(mm)Installation Size(mm)
ABCLEFD1D2
UKP-326413.542.5554848Φ10Φ4.5
UKP-63641650624848Φ10Φ4.5
UKP-125642270714848Φ10Φ4.5
