Model | TXB1A2 | |||
Poles | 1P | 2P | 3P | 4P |
Rated Current | 2-50A | |||
Rated Voltage Ue | AC240V DC80V | |||
Rated Frequency | 50/60Hz | |||
Allowable Pollution Level | Level 2 | |||
Installation Category | III | |||
Ambient Temperature | -40°C ~ +85°C | |||
Installation | Screw Installation | |||
Wiring Method | Connecting Plate Type, Screw Type | |||
Altitude | ≤6000m | |||
Mechanical Life | 20000 | |||
Circuit Type | SO: Switch, S1: Series Current Line, S2: Series Current Line With Auxiliary Switch | |||
Delay Trip Types | AS: AC short-time delay, AM: AC mid-time delay, AL: AC long-time delay, DS: AC short-time delay, DM: AC mid-time delay, DL: AC long-time delay | |||
Identifier Indicates | A: Parallel ON-OFF/I-O, B: Vertical ON-OFF/I-O, C: Parallel ON-OFF | |||
International Standard | GB17701-1999, IEC60934: 1993, C22.2 | |||
Applicable Environment | Used for on-off operation of lines or equipment, and can be used to protect the overload and short circuit of lines and motors. Especially suitable for use in situations with shock or vibration. |

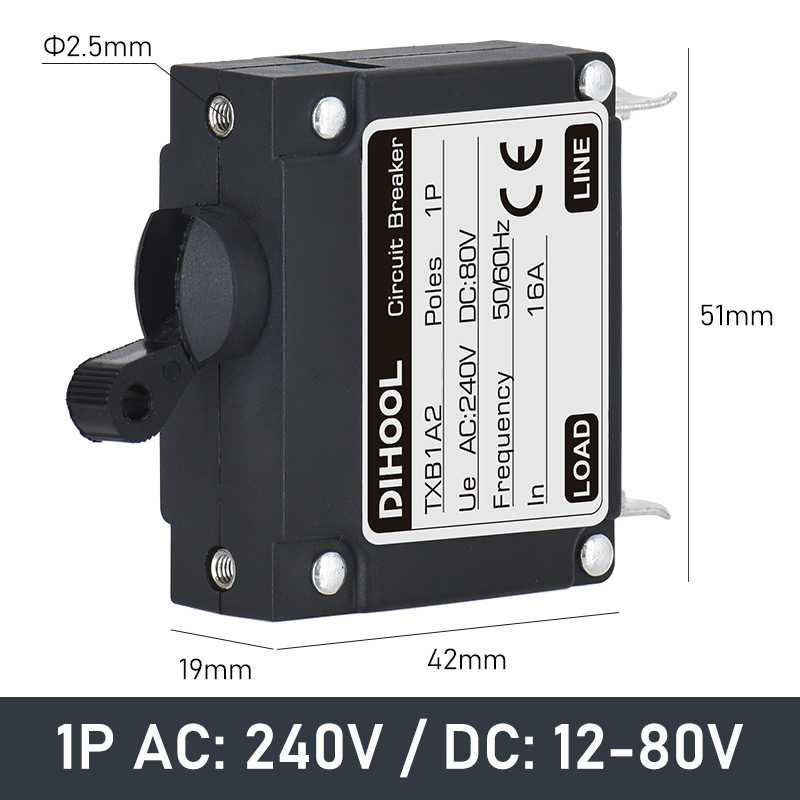

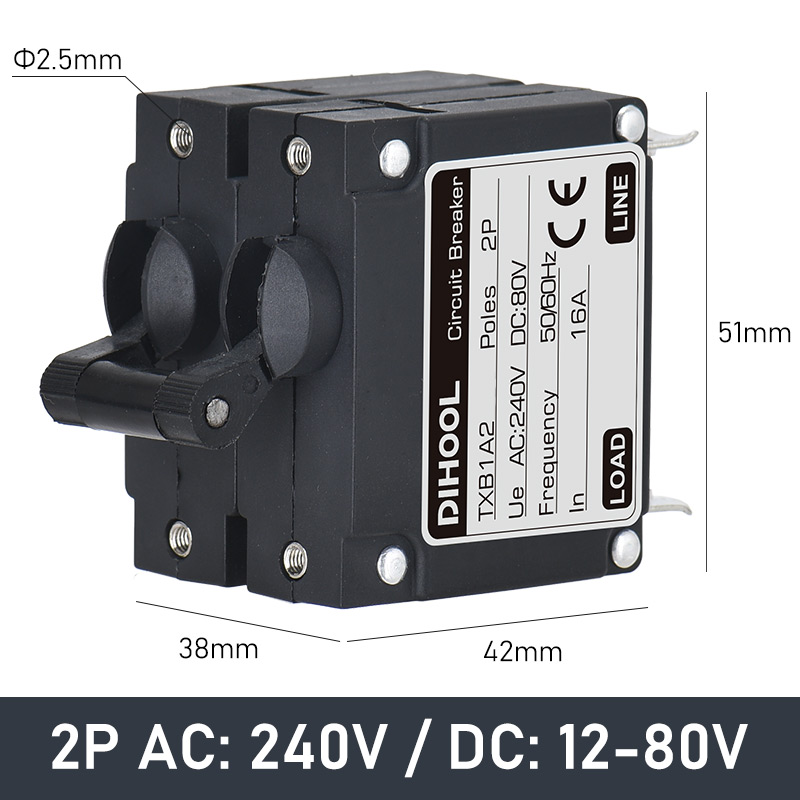

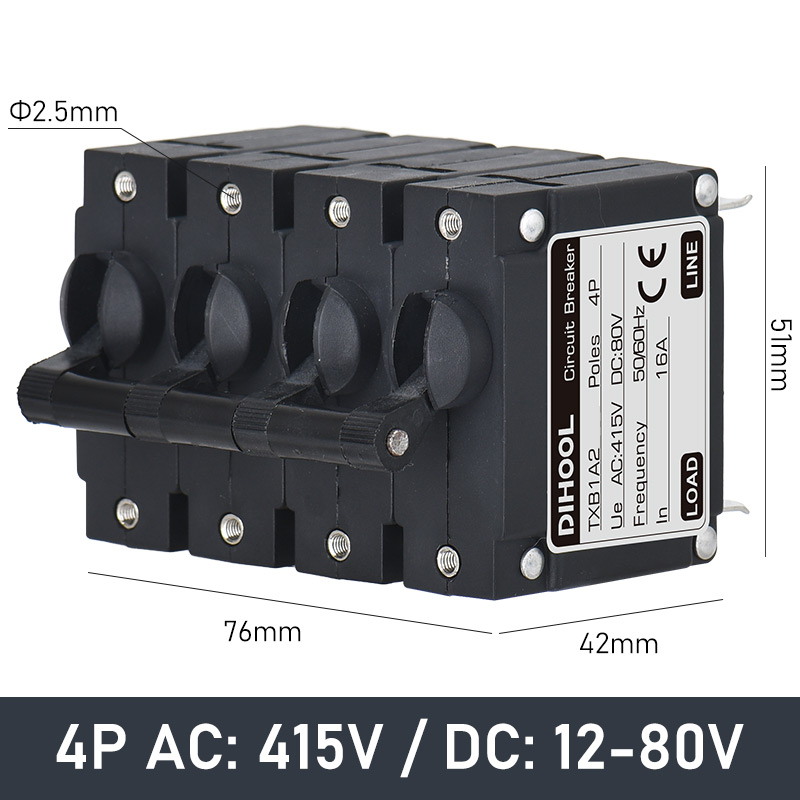

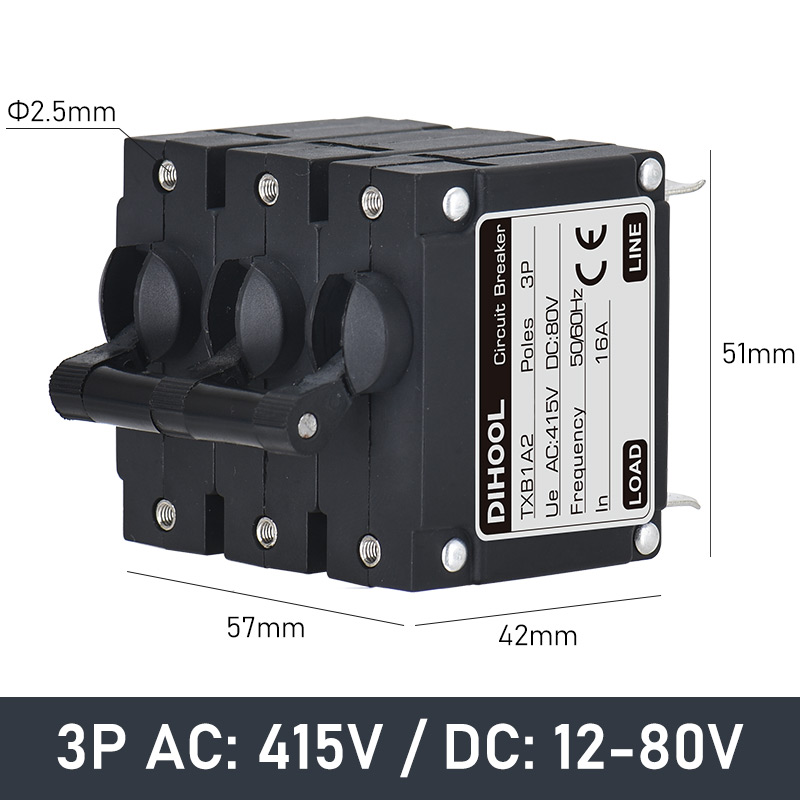

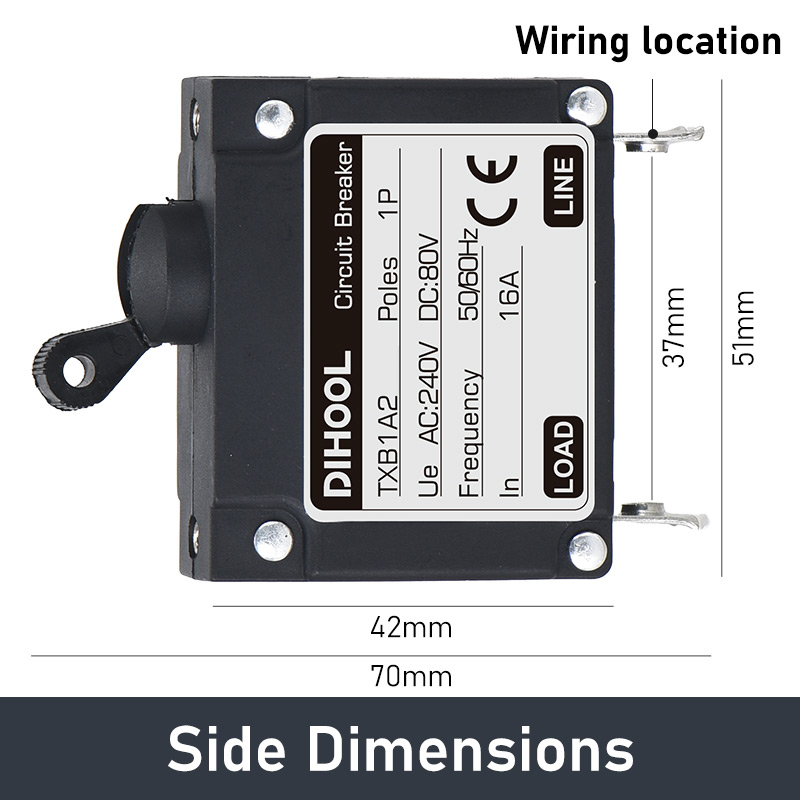

Poles | Dimensions | Installation Dimensions | |||||||
A | B | C | A1 | D | E | J | Y | H | |
1P | 19.2 | 51 | 41 | 42 | 32° | M4 | Φ14.9 | M3*5 | |
2P | 38.4 | 51 | 41 | 19.2 | 42 | 32° | M4 | Φ14.9 | M3*5 |
3P | 57.6 | 51 | 41 | 19.2*2 | 42 | 32° | M4 | Φ14.9 | M3*5 |
4P | 76.8 | 51 | 41 | 19.2*3 | 42 | 32° | M4 | Φ14.9 | M3*5 |
