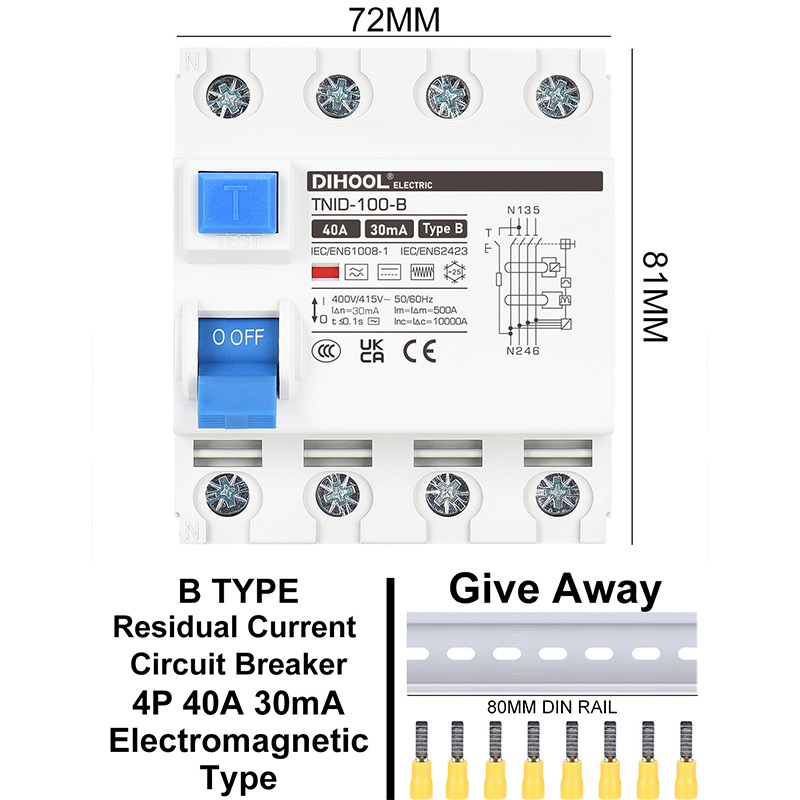

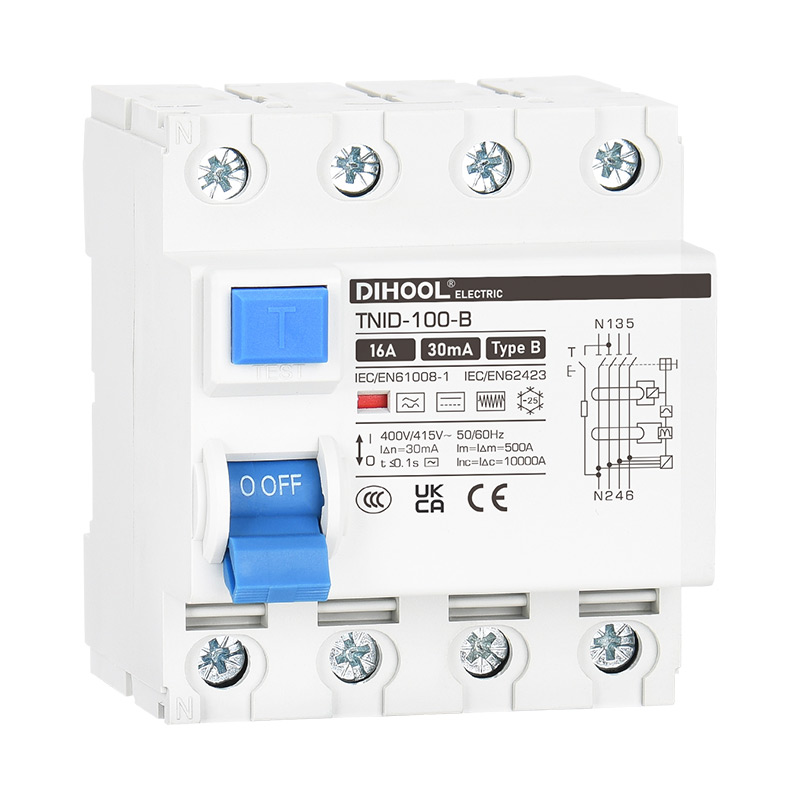

Model | TNID | |
Poles | 1P+N | 3P+N |
Rated Current In | 16A, 20A, 25A,40A,63A,100A | |
Rated Voltage Ue | 230V (1P+N), 440V (3P+N) | |
Insulation Voltage Ui | 500V (1P+N), 900V (3P+N) | |
Sensitivity | 15mA, 30mA, 100mA, 300mA | |

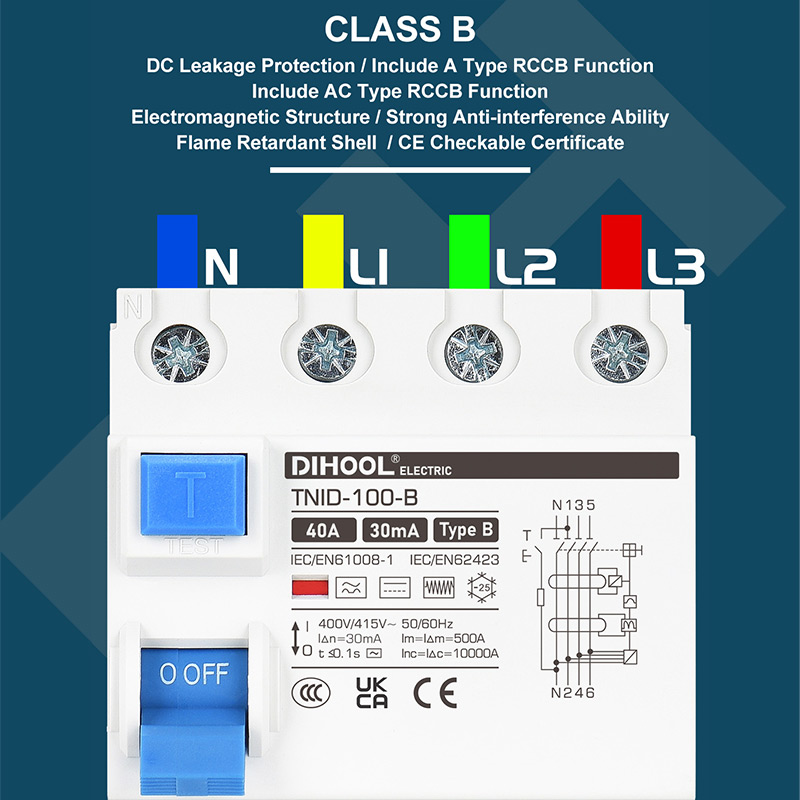

Residual Current Working Type | Type B | |
Rated Frequency | 50Hz / 60Hz | |
Residual Making And Breaking Capacity IΔm | 1500A | |
Short Circuit Current Inc=IΔc | 10000A | |
SCPD Fuse | 10000 | |
Rated Impulse Withstand Current 1.2/50µs | 6000V | |
Mechanical Working Life | 4000 Times | |
Electrical Life | 2000 Times | |
Dielectric test voltage at and ind. Freq. for 1min | 2.5kV | |
Pollution Degree | II | |
Break Time Under IΔn | ≤0.1s | |
Degree of Protection | IP20 | |

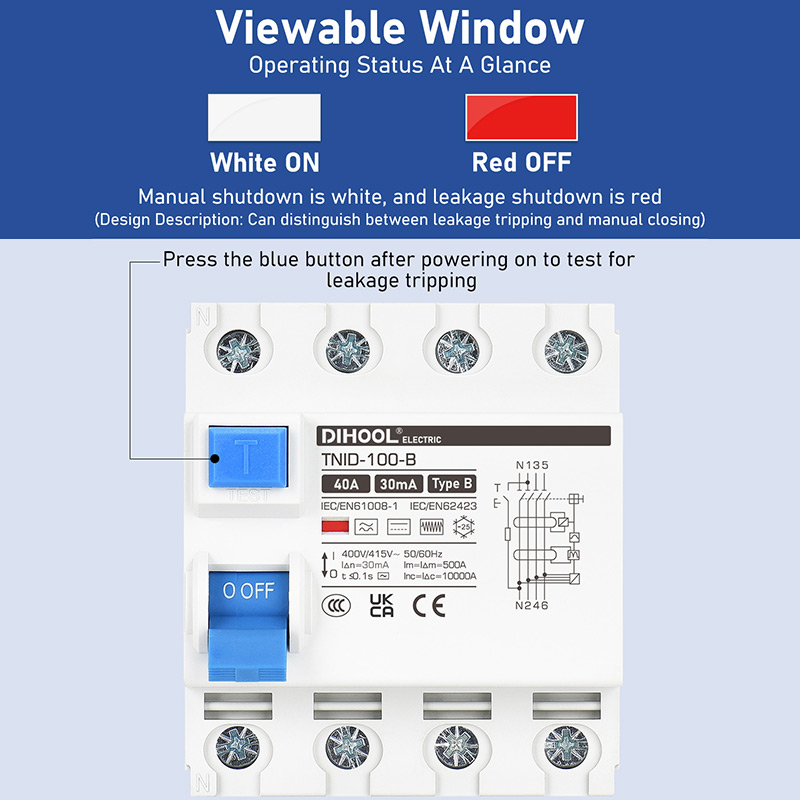

Contact Flag Indication | White for ON, Red for OFF | |
Residual Current Protection Type | Electromagnetic | |
Standards | IEC/EN61008-1 IEC/EN62955 | |

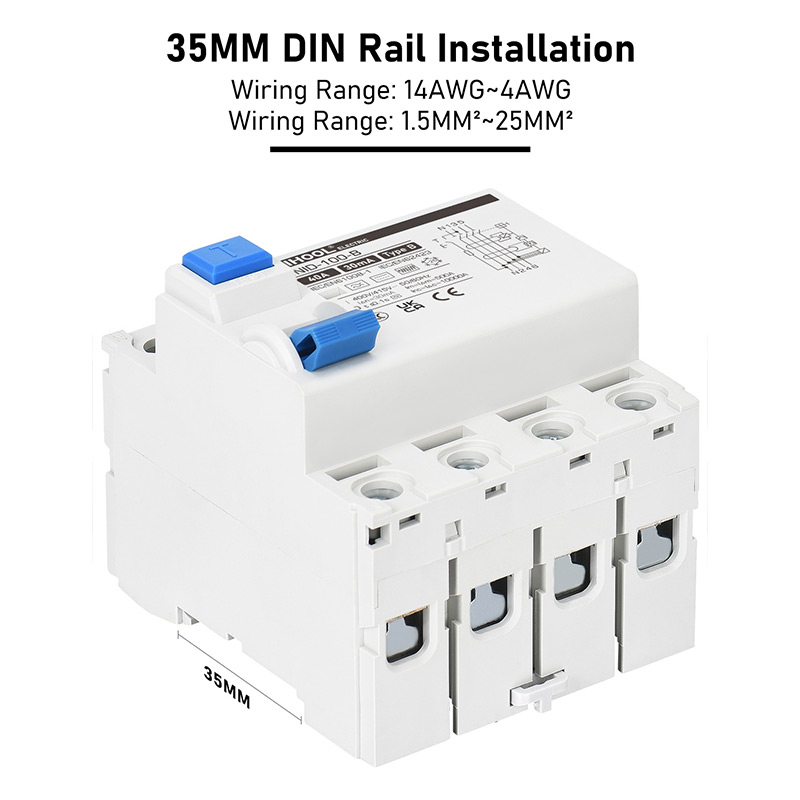

Installation | DIN Rail | |
Wiring | 1.5mm² - 25mm² | |
Tightening Torque | 3.5*N.m | |

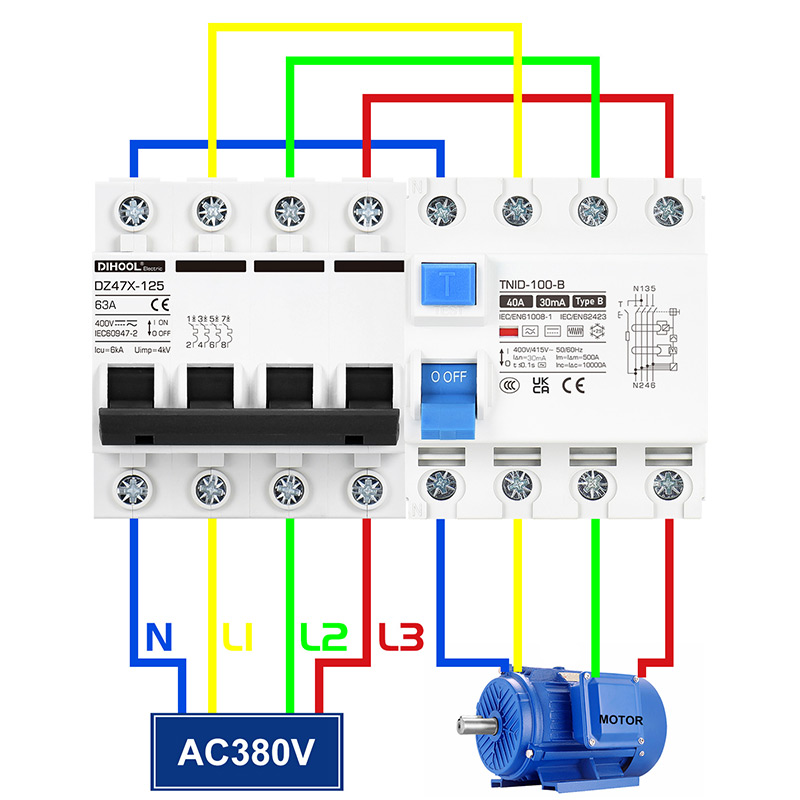

Connection | Up input and down output |
