Rated Current: 80A/160A/320A
Rated Voltage: 150V
Terminal material: Silver-plated copper
Insulation material: PP
Protection level: IP23
Flame retardant rating: UL94V-0
Interface type: AC/DC
Operating Temperature: -20°C-105°C

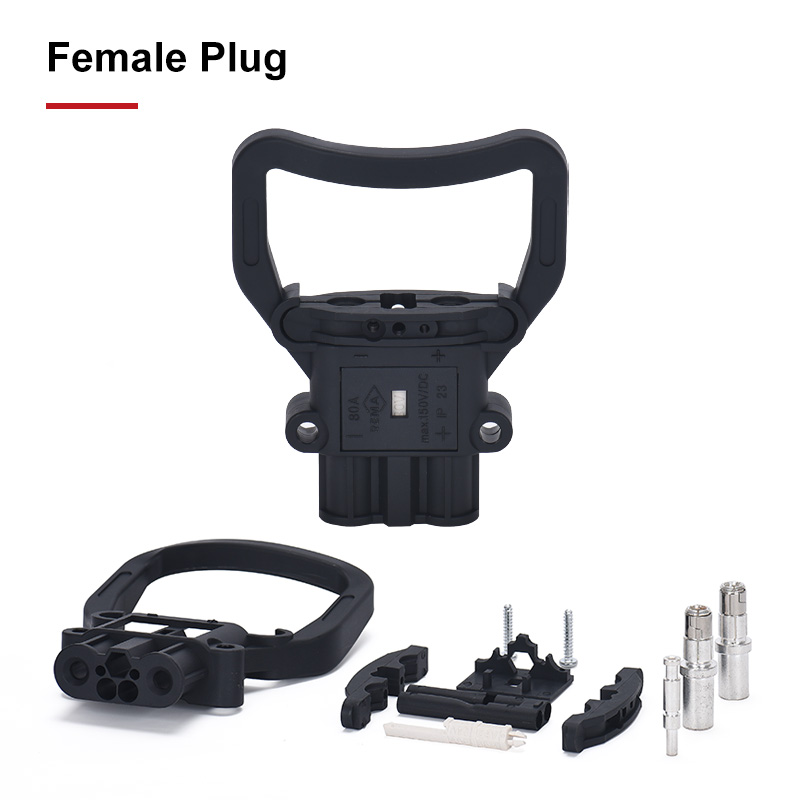

Accessories: One plug comes with two main terminals and one signal terminal

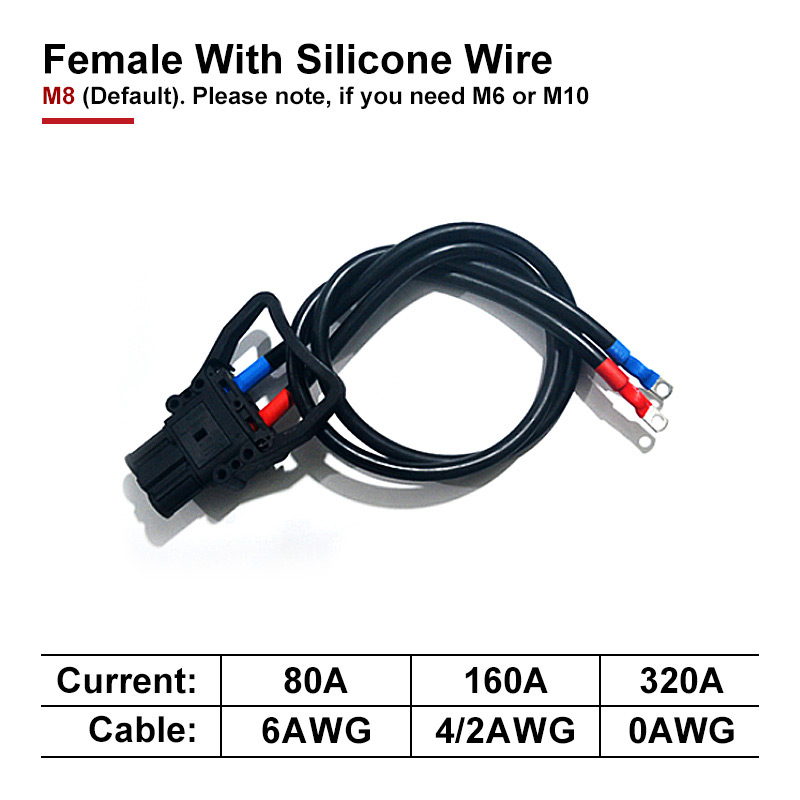

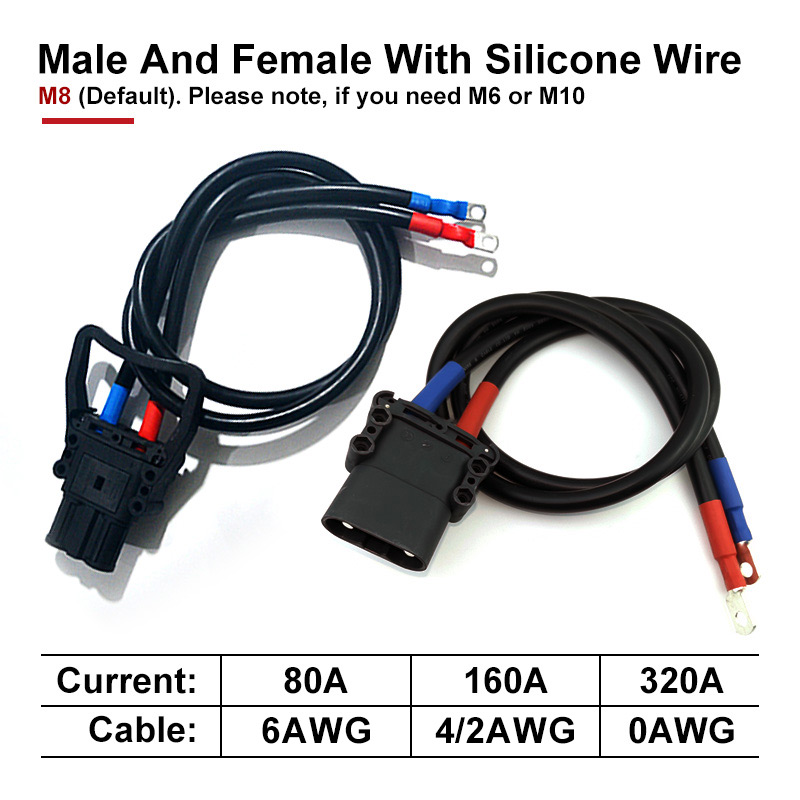

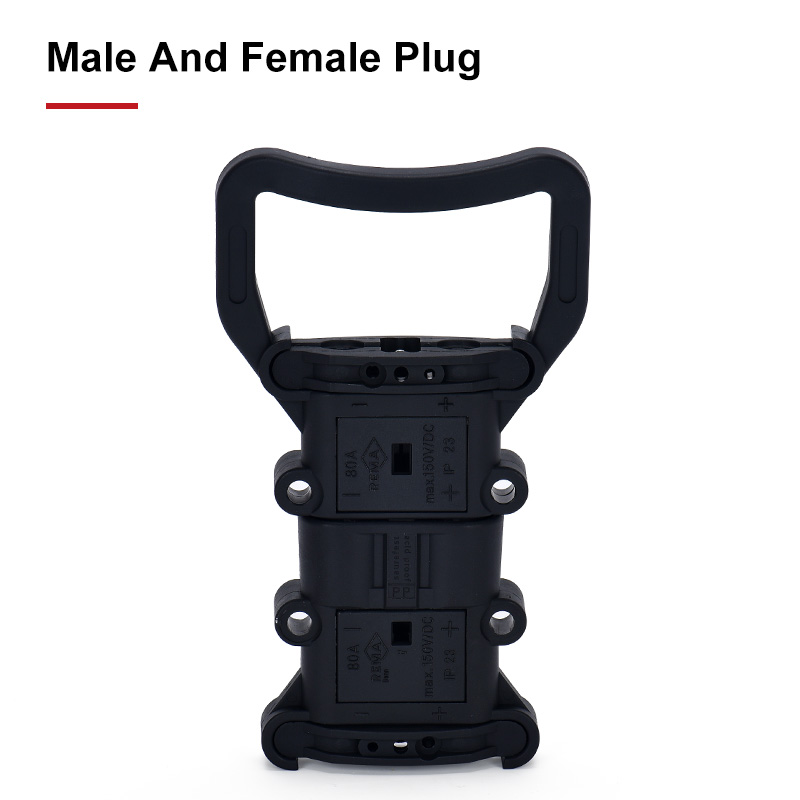

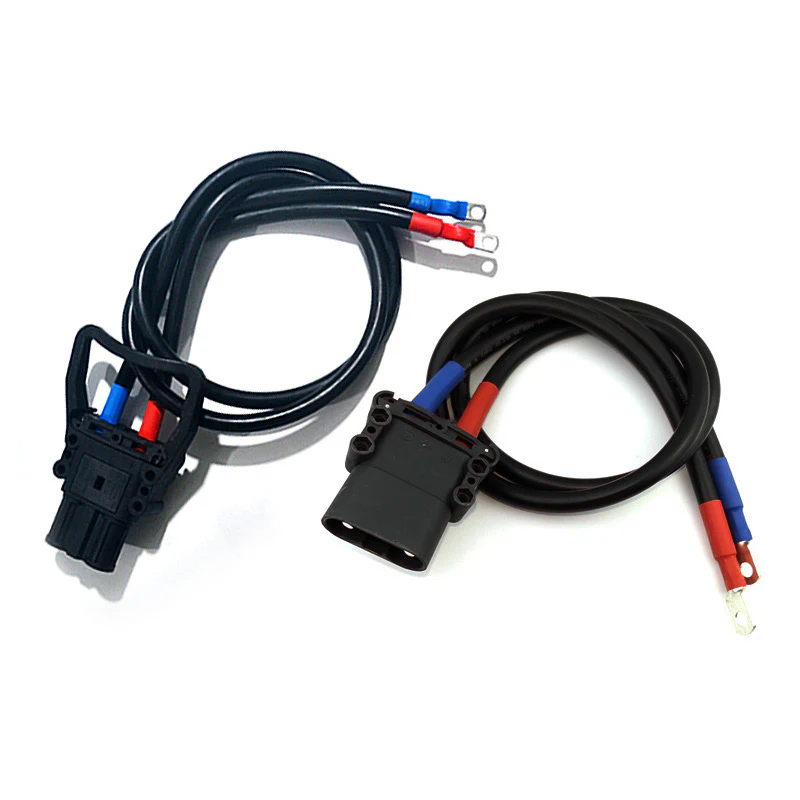

Features: The connector is separated from male and female, and the female connector has a handle
Use range: Be used for electric vehicles, electric forklifts, stackers, electric sightseeing cars, UPS and other high-current circuit connections
Model | Current (A) | Terminal Inner-diameter (mm) | Wiring Range | |
80A Male & Female | 80 | φ8 | 6AWG / 4AWG | 16mm² / 25mm² |
160A Male & Female | 160 | φ9/φ11 | 4AWG / 2AWG | 25mm² / 35mm² |
320A Male & Female | 320 | φ11/φ13 | 2AWG / 0AWG | 35mm² / 50mm² |
