SPD4

SPD4 AC Surge Protector

Voltage-Pole:
  • 275V-2P
  • 385V-2P
  • 275V-4P
  • 385V-4P
Quantity:

AC Breaker & Box
Technical Data
Download

Product Parameters

ModelDHSPD4
StandardIEC EN50539-11; GB18802.11
Protection GradeT2, Class II
Max Continuous Working Voltage UcAC275V/AC385V
Nominal Discharge Current In 8/20μs20KA
Max Discharge Current In 8/20μs40KA
Voltage Protection Level Up2KV
Number of PolesL, NL1, L2, L3, N
Response Time Ta≤25ns

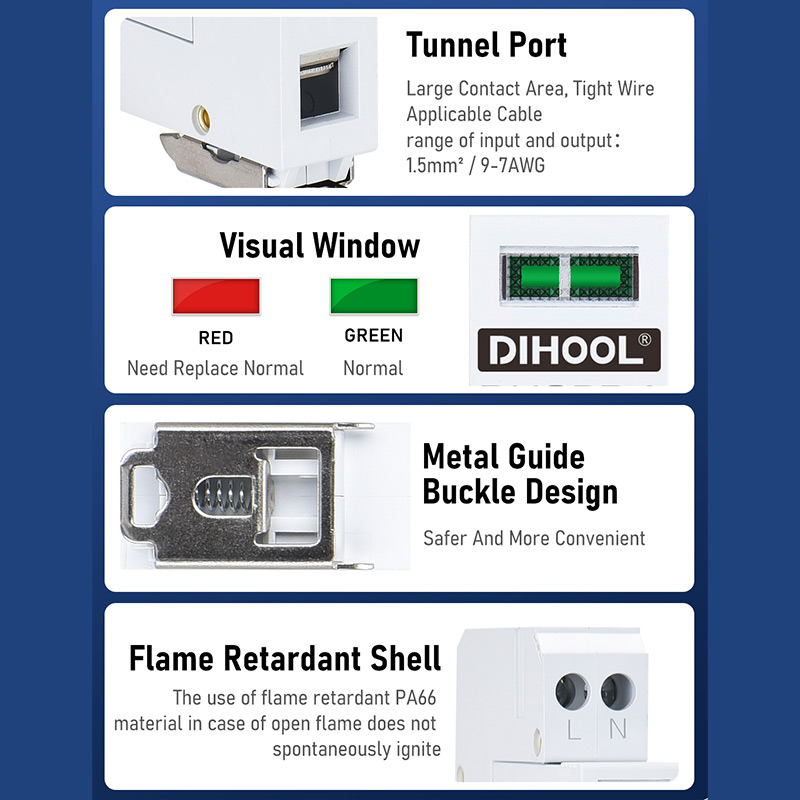

Connecting Cable1.5mm²/9-7AWG
Method of Installation35mm DIN Rail
Operating Temperature Range-40°C ~ +80°C
Housing Color Module/BaseWhite
Protection ClassIP20
Terminal Connection TypePhillips Screws
CertificateCE
Working Status Indicator WindowGreen (working well), Red (malfunction, product or module must be replaced)

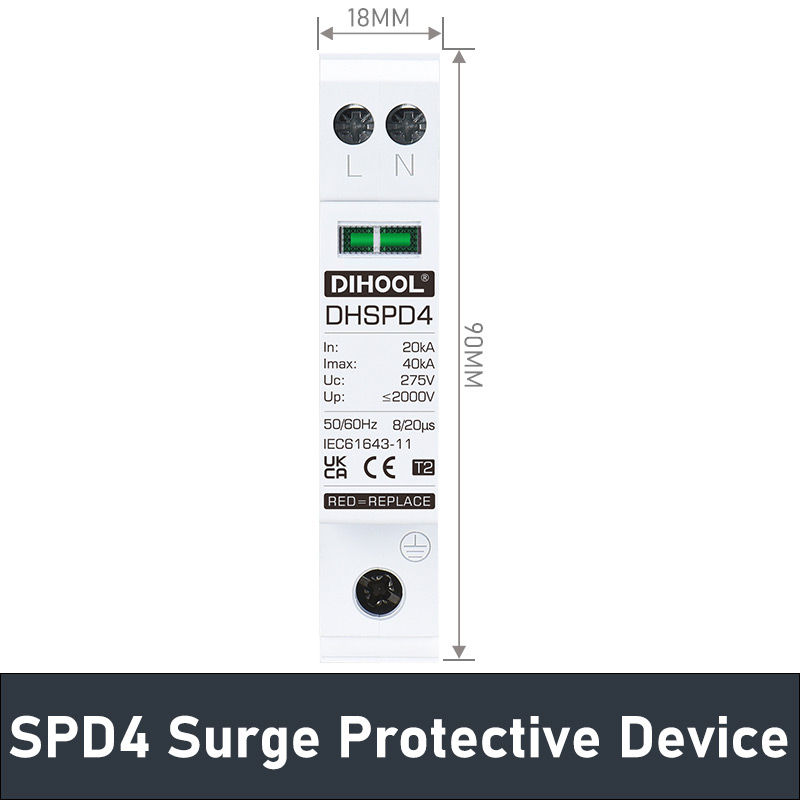

Outline Dimension Drawing
