| Model | RTPV-1085 |
| Rated Current | 10/15/20/25/30A |
| Max Current | 30A |

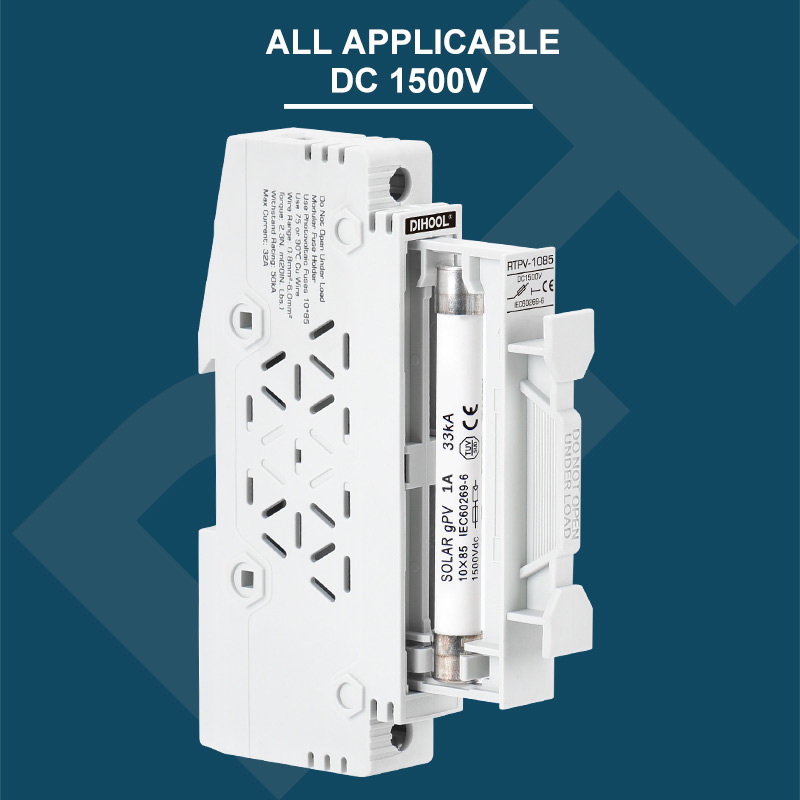

| Rated Voltage Ue | DC1500V |
| Rated Breaking Capacity (Ics) | 50kA |
| Breaking capacity and applicable category gPV | "GPV" refers to a fuse used in photovoltaic power systems with full range DC breaking capacity. |
| Altitude | ≤3500m |
| Protection Class | IP20 |
| Pollution Degree | Level 3 |
| Installation Category | Class I, The fuse is installed in a place without significant shaking and impact vibration |
| Ambient Temperature | -25°C ~ +60°C |
| Maximum relative humidity | Not exceeding 90% |
| Installation | 35MM DIN Rail |
| Applicable Wire Specifications | 0.8mm ²-6mm ²， Temperature resistance of 75 °C/90 °C |
| Tightening Torque | 2.3N.m |
| Terminal Connection Type | Phillips Screws |
| International Standard | GB/T 13539.6-2013，IEC 60269-6:2010 |
