PVACD-2S2

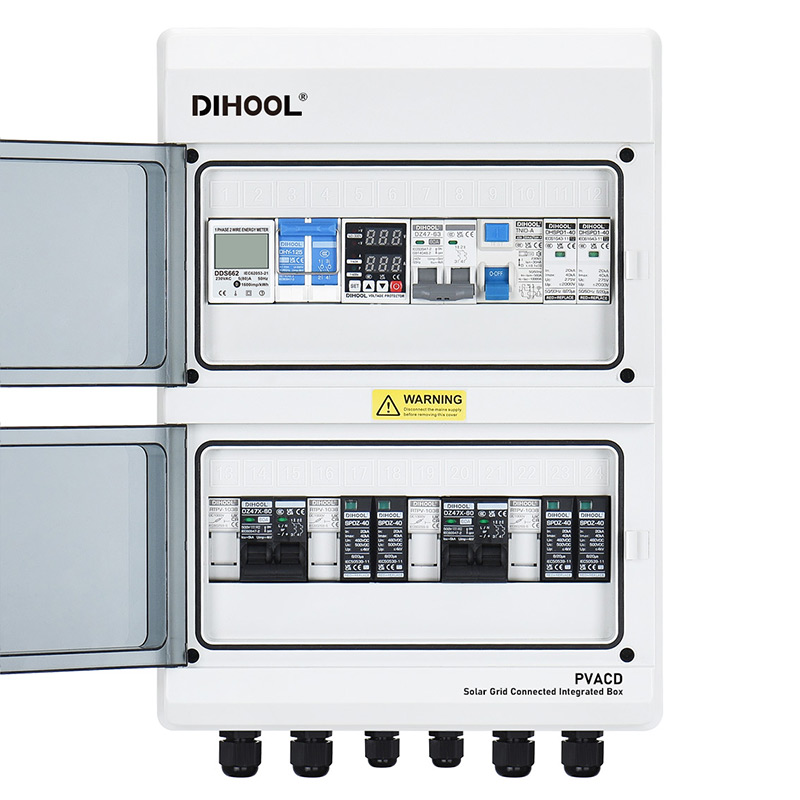

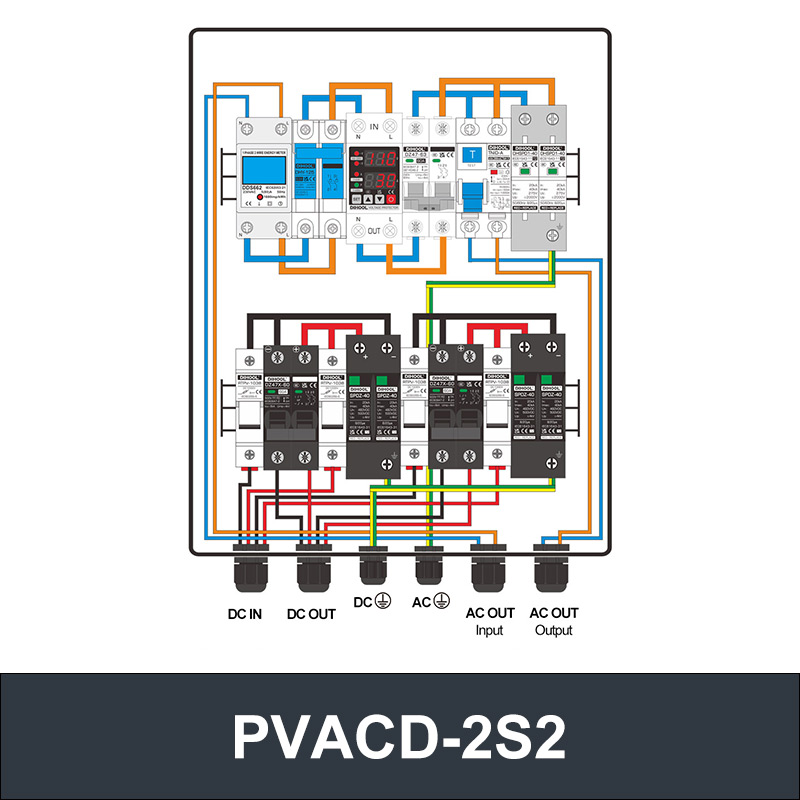

PVACD-2S2 Solar DC AC Grid Connected Integrated Box

Current:
  • 10A
  • 15A
  • 20A
  • 25A
  • 30A
  • Customized
Quantity:

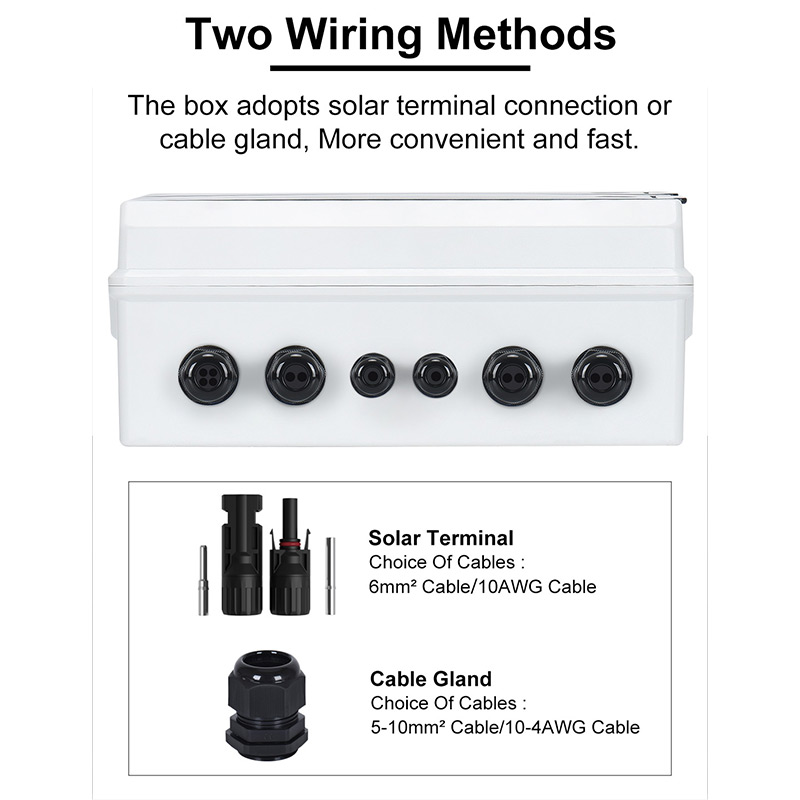

Product Features

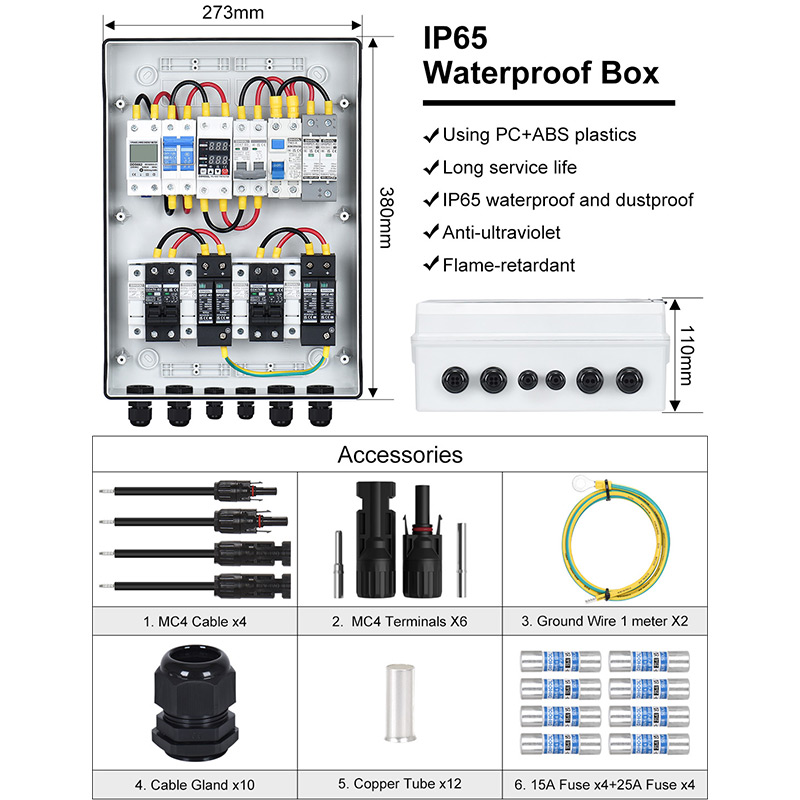

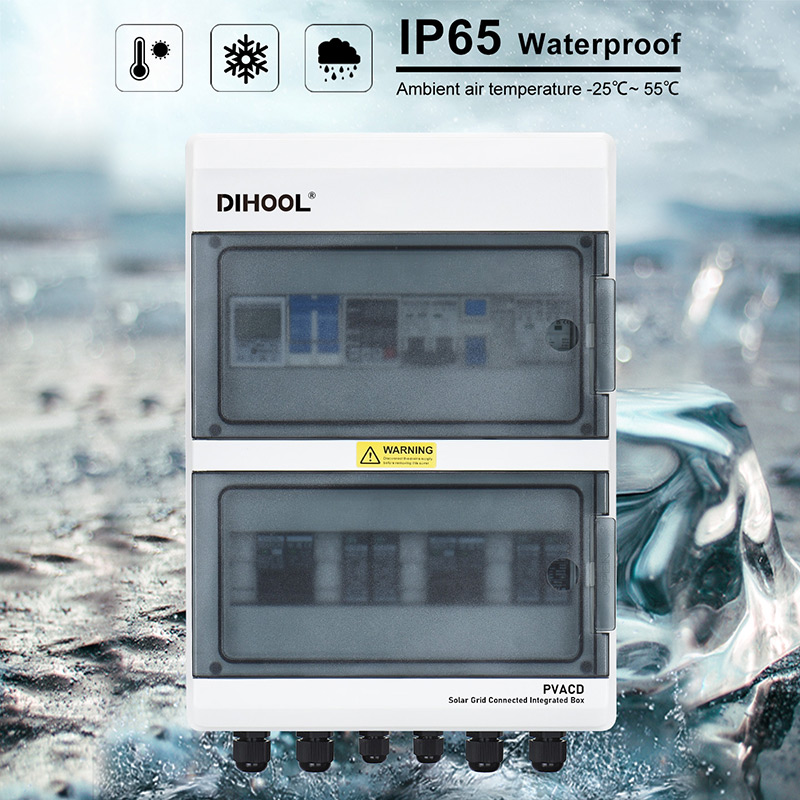

- Using PC+ABS plastics, long service life, IP65 waterproof and dustproof, anti-ultraviolet, flame-retardant.
- DC Strings system is mainly used for Over current protection and lightning protection between

PV Combiner Box
Technical Data
Download

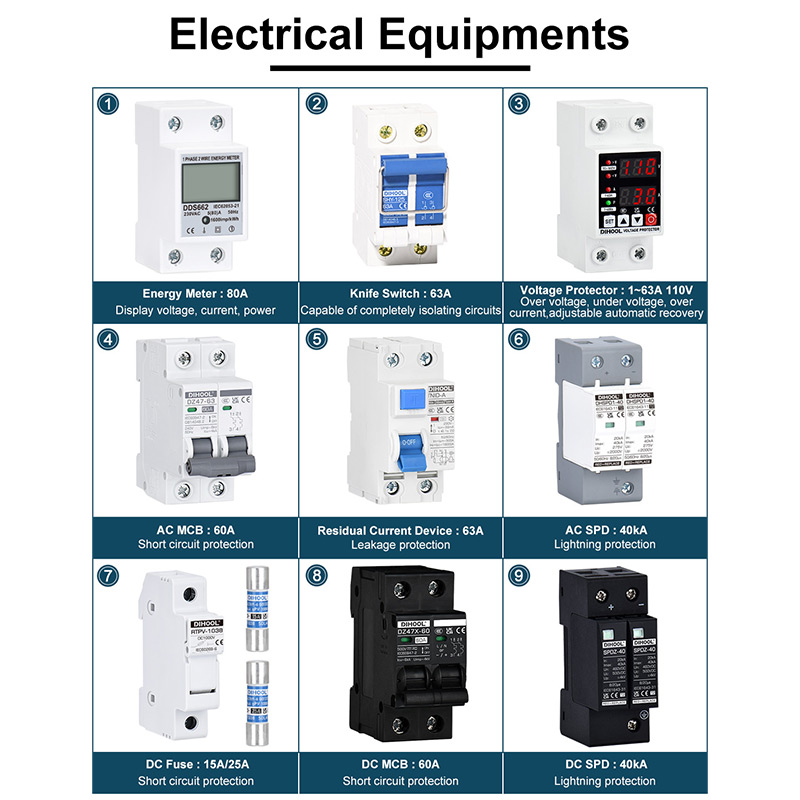

ELECTRICAL PARAMETERS

AC ELECTRICAL TECHNICAL PARAMETERS
ModelPVACD-2S2
AC Electrical Parameters
Meter Voltage220V / 110V
Meter CurrentMaximum Current 80A
Meter DisplayLCD Display (Voltage Current Power)
Meter Insulating Property1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Knife Switch63A
Voltage Protector Parameters
Voltage Setting Range (U)AC 140~300V or AC 70~160V
Current Setting Range (A)1~63A
Delay Time Setting Range1s ~ 500s
Voltage Error Range±5V
>U And <U Trip Delay Time0.1-30s
Circuit Breaker Parameters
Voltage220V / 110V
Rate Current60A
Residual Current Protection TypeElectromagnetic
Residual Current Working TypeType A
SensitivitySensitivity
AC Lightning Protector Parameters
Test CategoryClass II protection 8/20μs
Nominal Discharge Current20kA
Maximum Discharge Current40kA
Maximum Continuous Working Voltage275V
Number Of Poles2P
Lightning Protection InstructionsGreen is normal, Red needs to replace the module
Structural FeaturesPlug-in modules - Replaceable
DC ELECTRICAL TECHNICAL PARAMETERS
ModelPVACD-2S2
DC Electrical Parameters
Input Voltage12-1000V
Input Current40A
Input Array2
Breaking Capacity4000A
Output Circuit Breaker2P
Output String2
DC Lightning Protector Parameters
Test CategoryClass II protection 8/20μs
Nominal Discharge Current20kA
Maximum Discharge Current40kA
Voltage Protection Level4kV
Maximum Continuous Working Voltage1000V
Number Of Poles2P
Lightning Protection InstructionsGreen is normal, Red needs to replace the module
Structural FeaturesPlug-in modules - Replaceable

OUTLINE DIMENSIONS DRAWING
