Product Description

PVAC Solar Grid Connected Box is mainly used for 8.8kW-220V/4.8kW-120V distributed solar power generation systems. Connect and protect inverter and grid/off grid. The photovoltaic power generation system inverter converts direct current into alternating current, and the converted voltage is unstable and easy to damage the national grid, so grid-connected boxes must be installed.

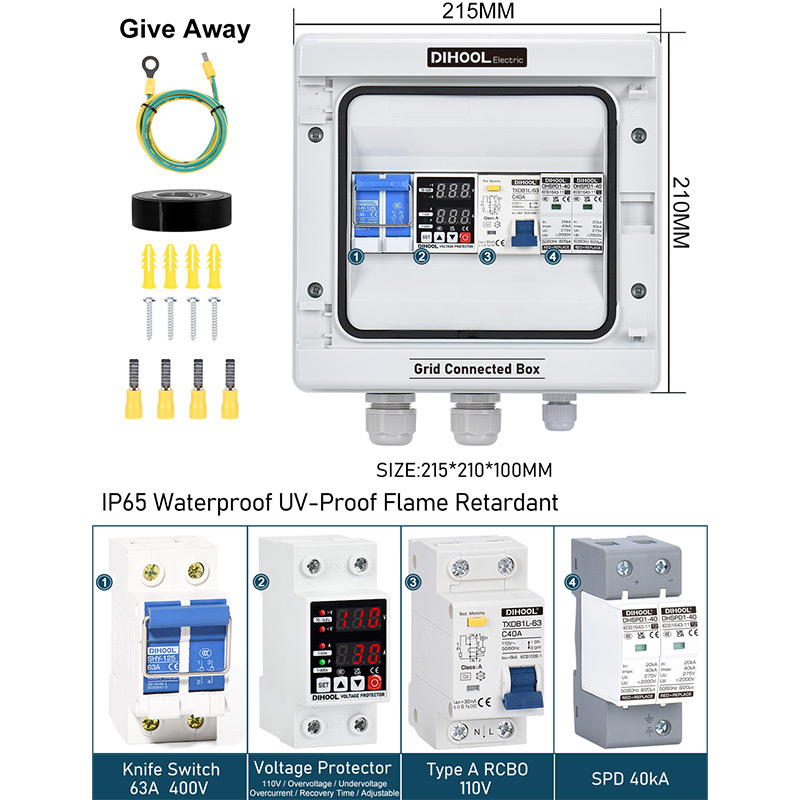

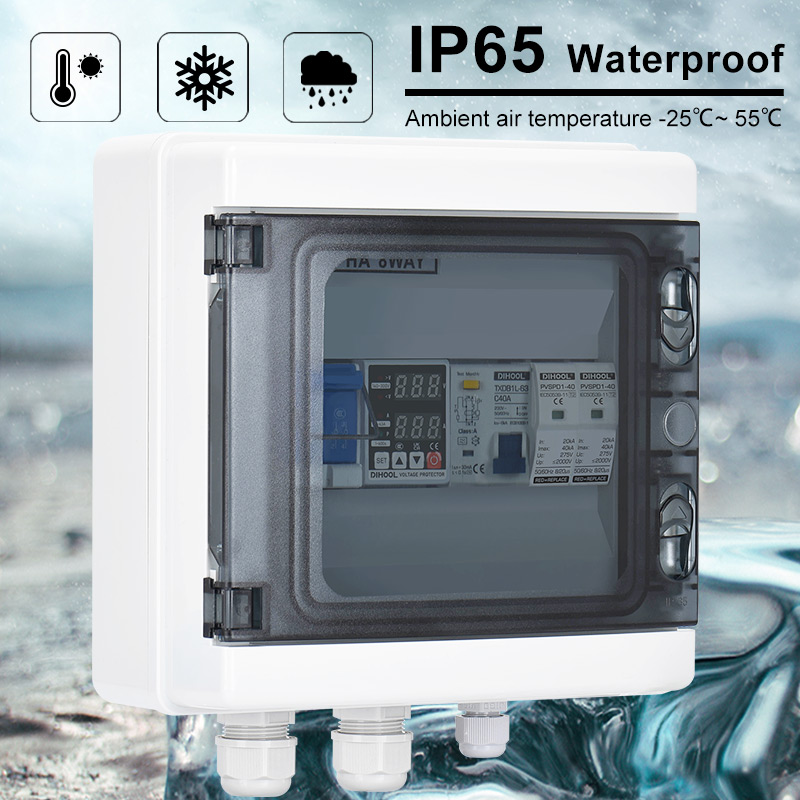

PVAC grid connected box adopts an anti-ultraviolet IP65 waterproof box, and a special switch for the AC grid is installed inside. It has the functions of overcurrent, overvoltage, undervoltage, delay recovery, and automatic closing after voltage recovery. Internal surge protection protects against lightning strikes. The knife disconnect switch needs to be cut off during maintenance. The integrated photovoltaic distribution box is easy to install and has complete functions to meet the needs of household off-grid electricity. The components are composed of isolating knife switch, circuit breaker, surge protector and voltage protector. All components have passed the CE certification.

Product Parameters

Outline Dimension Drawing
