- It is mainly used in electrical wiring of modern buildings and overload, short circuit protection of equipment.

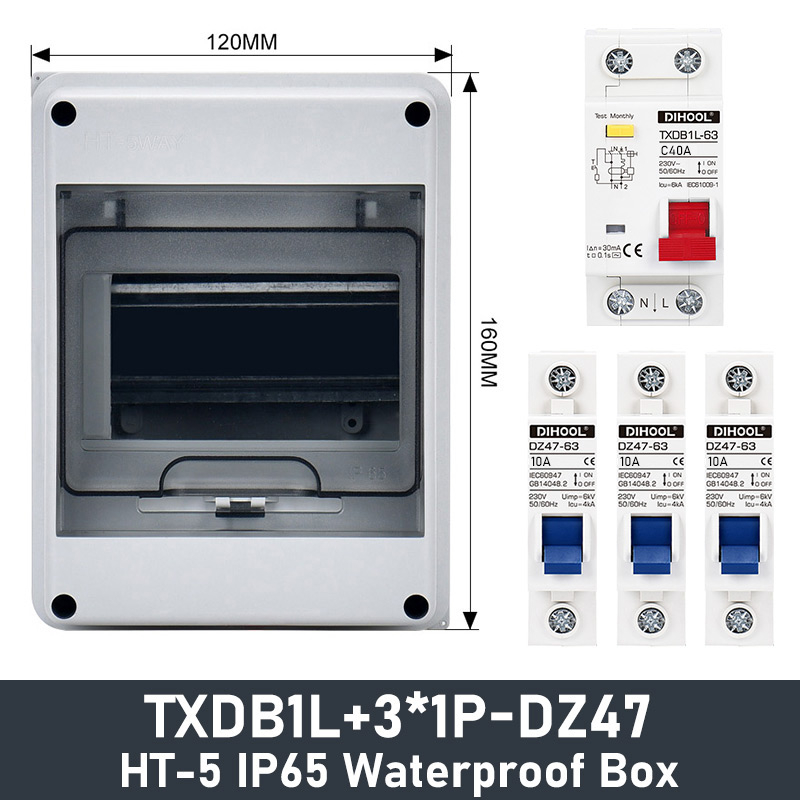

Model | HTD-5A |
Leakage Circuit Breaker Parameters | |
Pole | 1P+N |
Rated Current | 40A |
Rated Voltage Ue | 110V / 220V AC |
Insulation Voltage Ui | 500V |
Rated Residual Operated Current | 30mA |
Rated Breaking Capacity (Ics) | 4.5kA |
AC Circuit Breaker Parameters | |
Pole | 3*1P(10A) |
Rated Voltage Ue | AC90V-125V AC200-400V |
Insulation Voltage Ui | 500V |
Rated Impulse Withstand Voltage (1.2/50) Uimp | 6kV |
Rated Breaking Capacity (Ics) | 4kA |
Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
Box Parameters | |
Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
Operating Temperature | -25°C~+55°C |
Altitude | 2000 Meter |
Allowable Relative Humidity | 0~95%, no condensation |
Box Size(MM) | 120*160*90 |

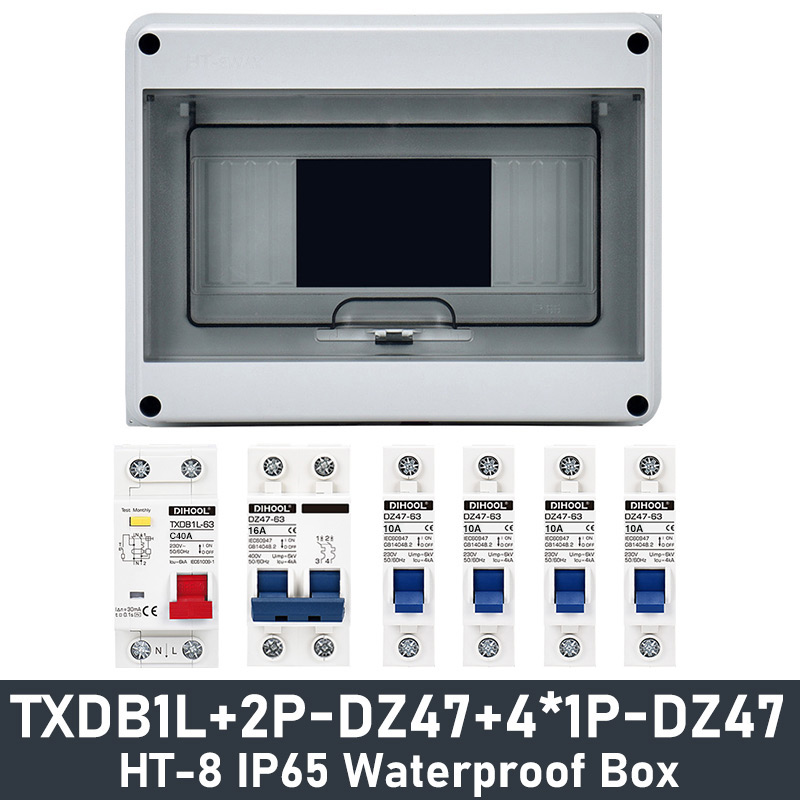

Model | HTD-8A |
Leakage Circuit Breaker Parameters | |
Pole | 1P+N |
Rated Current | 40A |
Rated Voltage Ue | 110V / 220V AC |
Insulation Voltage Ui | 500V |
Rated Residual Operated Current | 30mA |
Rated Breaking Capacity (Ics) | 4.5kA |
AC Circuit Breaker Parameters | |
Pole | 4*1P(10A) + 1*2P(16A) |
Rated Voltage Ue | AC90V-125V AC200-400V |
Insulation Voltage Ui | 500V |
Rated Impulse Withstand Voltage (1.2/50) Uimp | 6kV |
Rated Breaking Capacity (Ics) | 4kA |
Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
Box Parameters | |
Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
Operating Temperature | -25°C~+55°C |
Altitude | 2000 Meter |
Allowable Relative Humidity | 0~95%, no condensation |
Box Size(MM) | 200*155*90 |
Model | HTD-8B |
Leakage Circuit Breaker Parameters | |
Pole | 1P+N |
Rated Current | 40A |
Rated Voltage Ue | 110V / 220V AC |
Insulation Voltage Ui | 500V |
Rated Residual Operated Current | 30mA |
Rated Breaking Capacity (Ics) | 4.5kA |
AC Circuit Breaker Parameters | |
Pole | 2*1P(10A) + 1*2P(16A) |
Rated Voltage Ue | AC90V-125V AC200-400V |
Insulation Voltage Ui | 500V |
Rated Impulse Withstand Voltage (1.2/50) Uimp | 6kV |
Rated Breaking Capacity (Ics) | 4kA |
Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
Meter Circuit Breaker Parameters | |
Meter Voltage | 220V / 110V |
Meter Current | Maximum Current 80A |
Meter Display | LCD Display (Voltage Current Power) |
Meter Insulating Property | 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage |
Power | 0.1-17000W |
Box Parameters | |
Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
Operating Temperature | -25°C~+55°C |
Altitude | 2000 Meter |
Allowable Relative Humidity | 0~95%, no condensation |
Box Size(MM) | 200*155*90 |

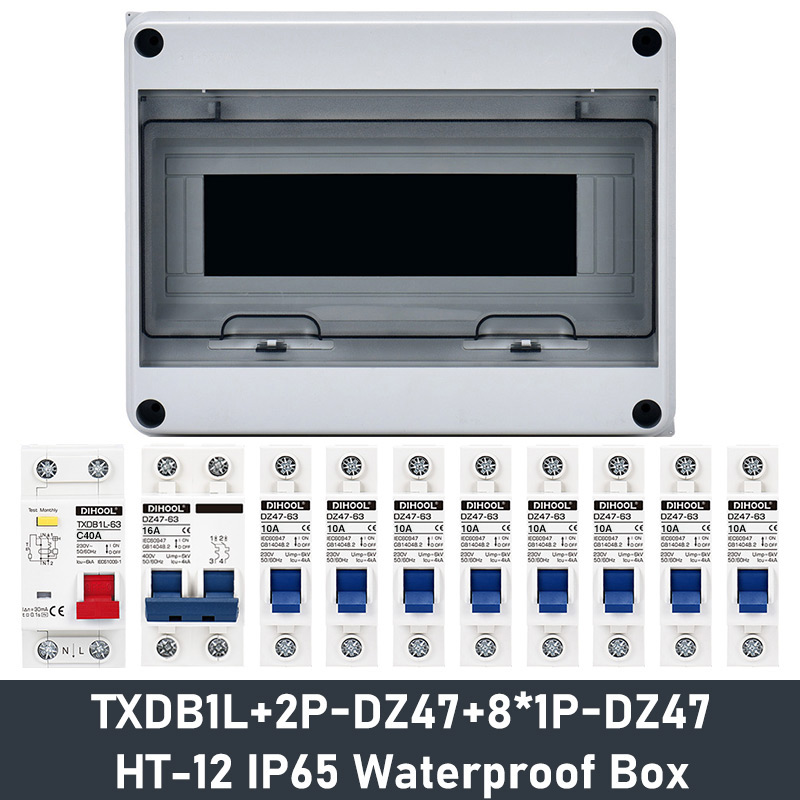

Model | HTD-12A |
Leakage Circuit Breaker Parameters | |
Pole | 1P+N |
Rated Current | 40A |
Rated Voltage Ue | 110V / 220V AC |
Insulation Voltage Ui | 500V |
Rated Residual Operated Current | 30mA |
Rated Breaking Capacity (Ics) | 4.5kA |
AC Circuit Breaker Parameters | |
Pole | 8*1P(10A) + 1*2P(16A) |
Rated Voltage Ue | AC90V-125V AC200-400V |
Insulation Voltage Ui | 500V |
Rated Impulse Withstand Voltage (1.2/50) Uimp | 6kV |
Rated Breaking Capacity (Ics) | 4kA |
Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
Box Parameters | |
Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
Operating Temperature | -25°C~+55°C |
Altitude | 2000 Meter |
Allowable Relative Humidity | 0~95%, no condensation |
Box Size(MM) | 255*200*110 |

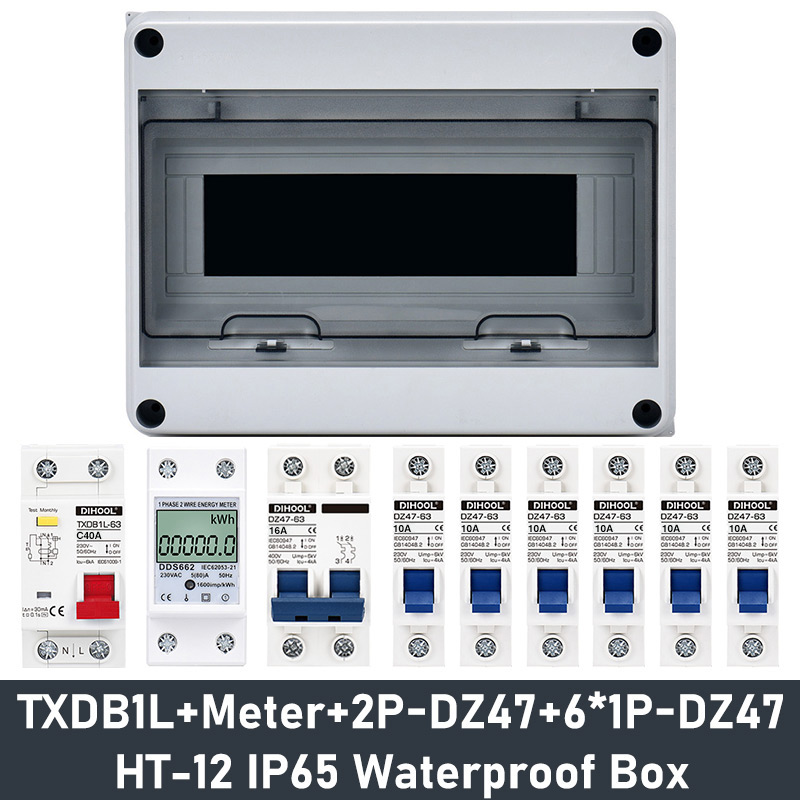

Model | HTD-12B |
Leakage Circuit Breaker Parameters | |
Pole | 1P+N |
Rated Current | 40A |
Rated Voltage Ue | 110V / 220V AC |
Insulation Voltage Ui | 500V |
Rated Residual Operated Current | 30mA |
Rated Breaking Capacity (Ics) | 4.5kA |
AC Circuit Breaker Parameters | |
Pole | 6*1P(10A) + 1*2P(16A) |
Rated Voltage Ue | AC90V-125V AC200-400V |
Insulation Voltage Ui | 500V |
Rated Impulse Withstand Voltage (1.2/50) Uimp | 6kV |
Rated Breaking Capacity (Ics) | 4kA |
Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
Meter Circuit Breaker Parameters | |
Meter Voltage | 220V / 110V |
Meter Current | Maximum Current 80A |
Meter Display | LCD Display (Voltage Current Power) |
Meter Insulating Property | 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage |
Power | 0.1-17000W |
Box Parameters | |
Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
Operating Temperature | -25°C~+55°C |
Altitude | 2000 Meter |
Allowable Relative Humidity | 0~95%, no condensation |
Box Size(MM) | 255*200*110 |

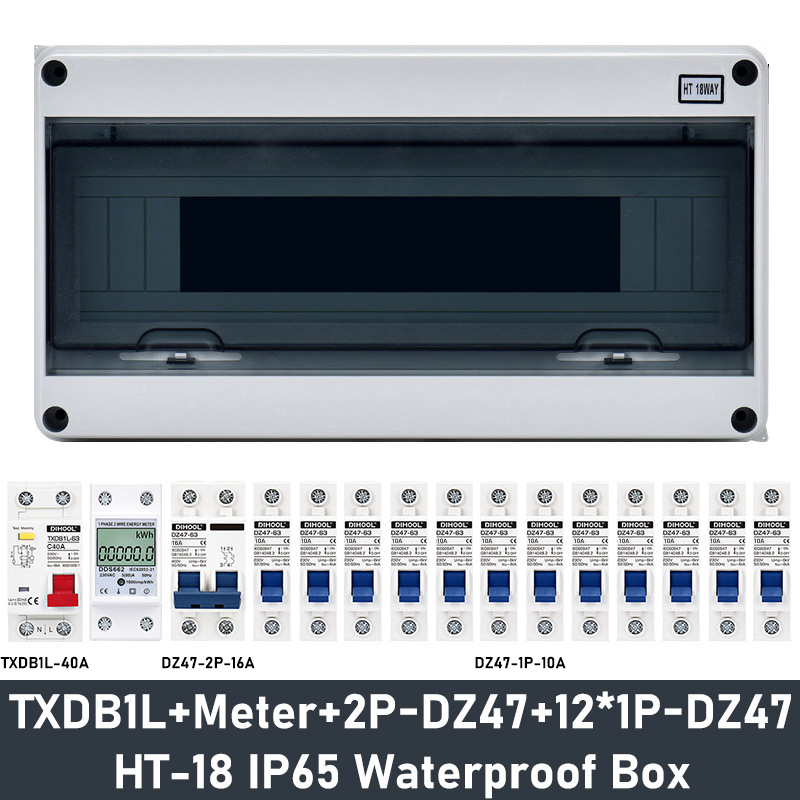

Model | HTD-18B |
Leakage Circuit Breaker Parameters | |
Pole | 1P+N |
Rated Current | 40A |
Rated Voltage Ue | 110V / 220V AC |
Insulation Voltage Ui | 500V |
Rated Residual Operated Current | 30mA |
Rated Breaking Capacity (Ics) | 4.5kA |
AC Circuit Breaker Parameters | |
Pole | 12*1P(10A) + 1*2P(16A) |
Rated Voltage Ue | AC90V-125V AC200-400V |
Insulation Voltage Ui | 500V |
Rated Impulse Withstand Voltage (1.2/50) Uimp | 6kV |
Rated Breaking Capacity (Ics) | 4kA |
Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
Meter Circuit Breaker Parameters | |
Meter Voltage | 220V / 110V |
Meter Current | Maximum Current 80A |
Meter Display | LCD Display (Voltage Current Power) |
Meter Insulating Property | 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage |
Power | 0.1-17000W |
Box Parameters | |
Box Material | Flame Retardant, PC+ABS Plastic, UV-Proof |
Operating Temperature | -25°C~+55°C |
Altitude | 2000 Meter |
Allowable Relative Humidity | 0~95%, no condensation |
Box Size(MM) | 365*200*110 |
