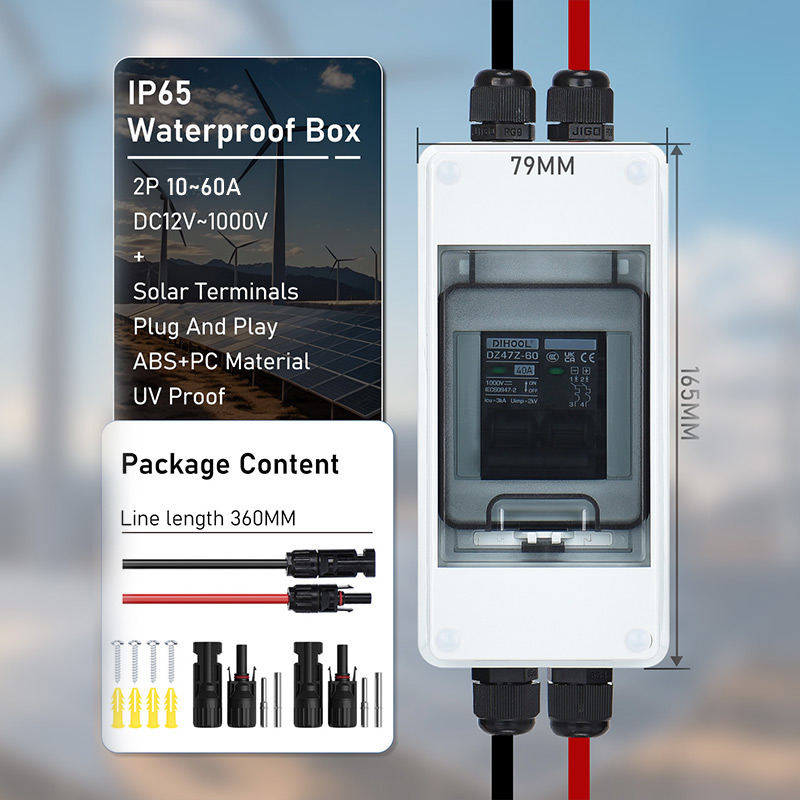

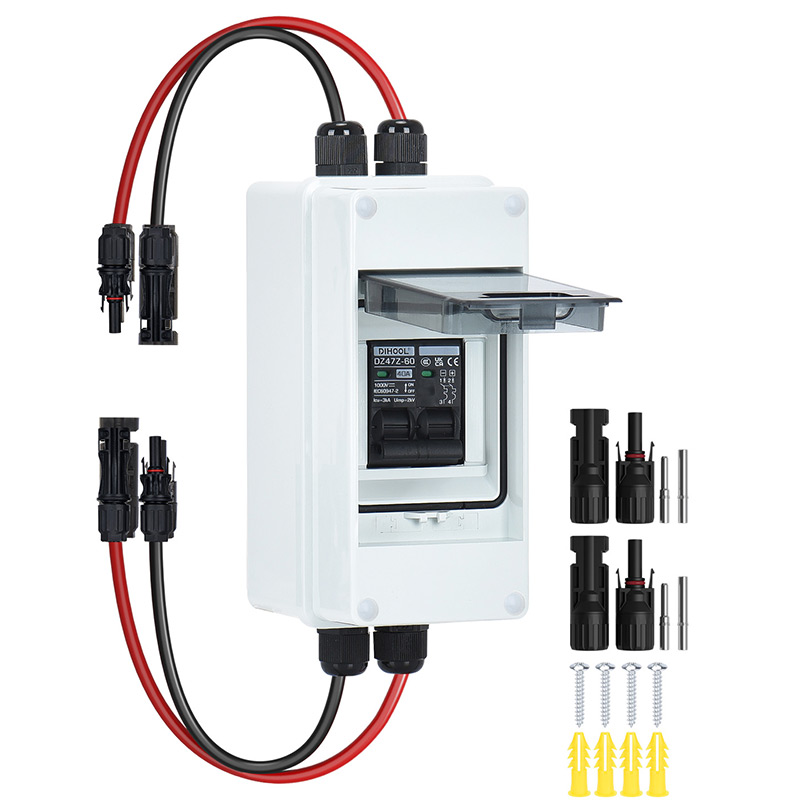

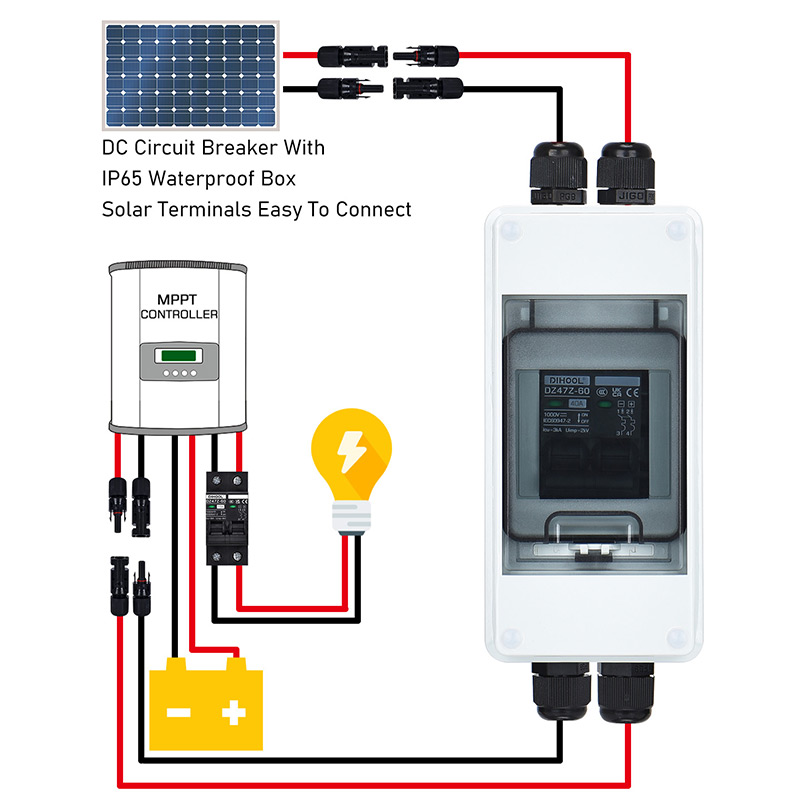

- HT3-DZ47ZH-MC4 Solar Disconnect Switch Mainly used for circuit isolation and lightning protection between solar panels and inverter, suitable for residential or commercial photovoltaic power generation systems.
| Model | HT3-DZ47ZH-MC4 |
| Rated Current | 10/15/20/30/40/50/60 Amp |
| Poles | 2P (- +) |
| Rated Voltage Ue | DC 12V-1000V |
| Insulation Voltage Ui | 1000V |
| Rated Breaking Capacity | 4kA |
| Rated Impulse Withstand Voltage(1.2/50) Uimp | 4kV |
| Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV |
| Protection Class | IP65 |
| Thermo-Magnetic Release Characteristic | C Curve (5-7ln) |
| Electrical Life | 4000 |
| Mechanical Life | 20000 |

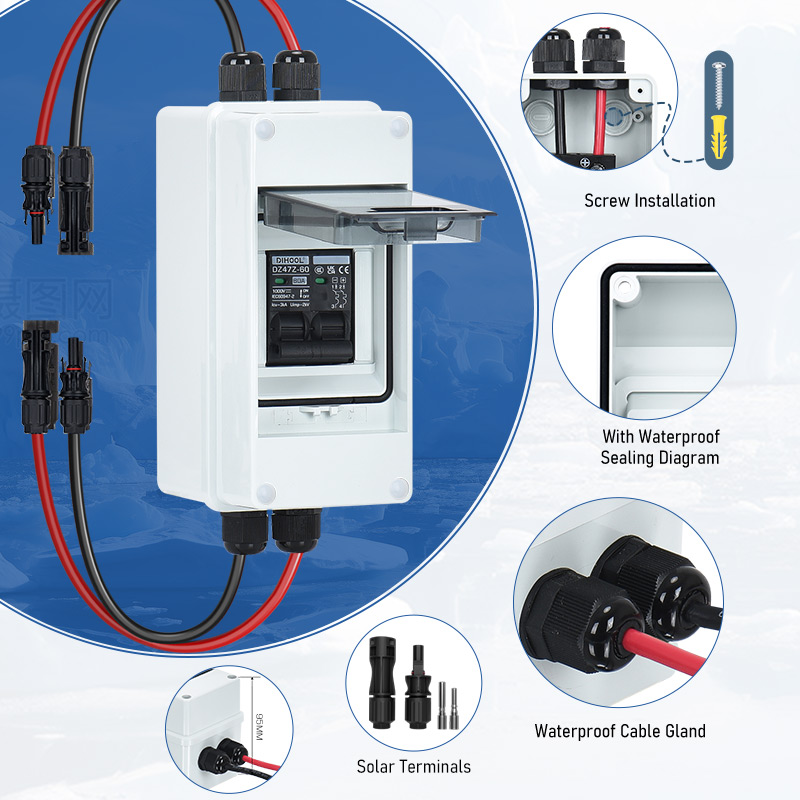

| Installation | Screw Surface Installation |
| Reference Temperature For Setting Of Thermal Element | 30°C |
| Ambient Temperature | -25°C~+65°C |
| Terminal Connection Type | MC Solar Terminals |
| Adapter Cable | 2.5~10mm² / 13~7AWG BVR |
| Box Material | ABS+PC, UV-Proof |
| Altitude | 2000 Meter |
| Allowable Relative Humidity | 0~95%, no condensation |

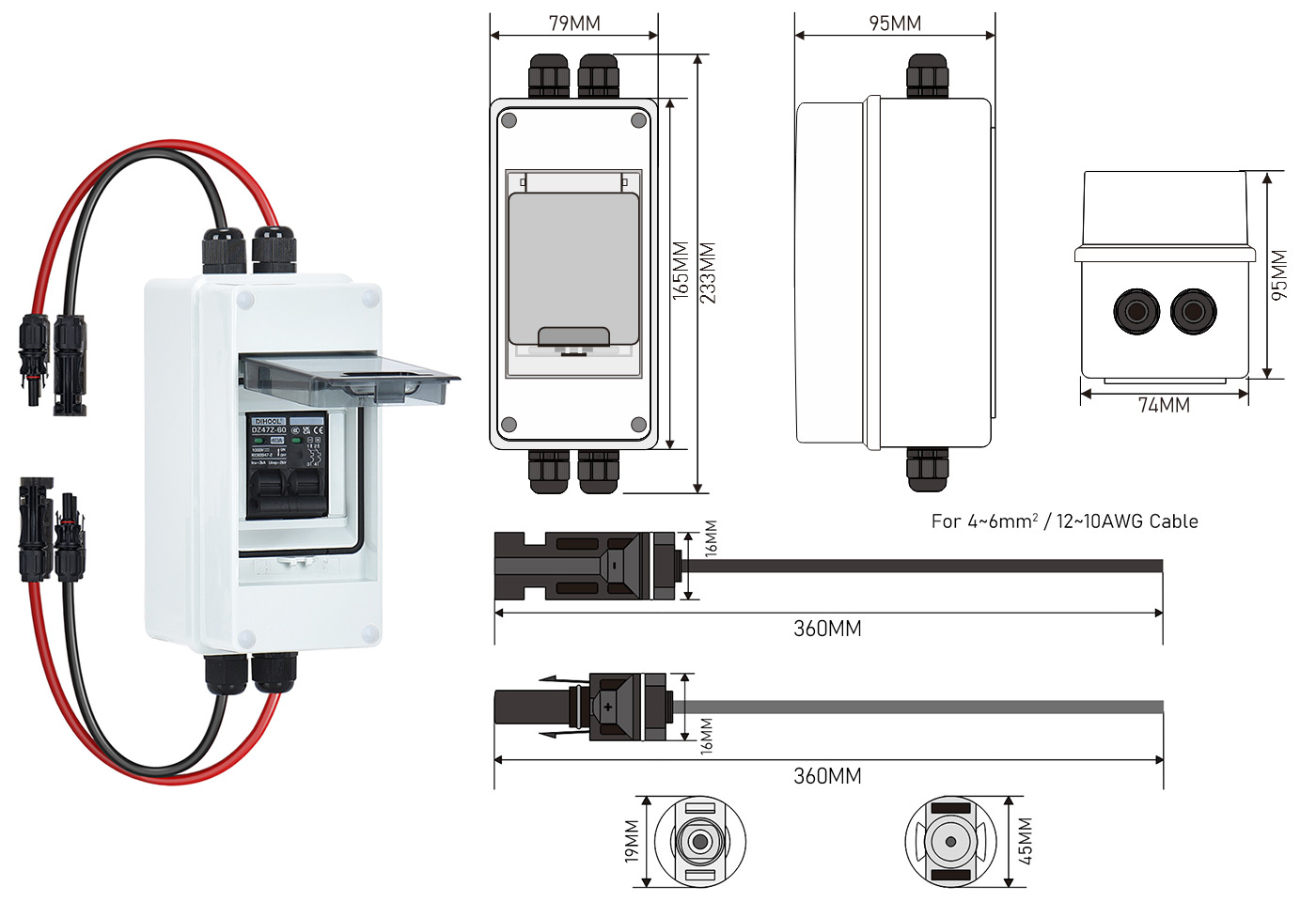

| Box Size(MM) | 79MM x 165MM x 95MM |
