HKD

HKD Circuit Breaker With IP65 Waterproof Box MCB RCCB Meter Circuit Breaker Set

Quantity:

Application

- It is mainly used in electrical wiring of modern buildings and overload, short circuit protection of equipment.


AC Breaker & Box
Technical Data
Download

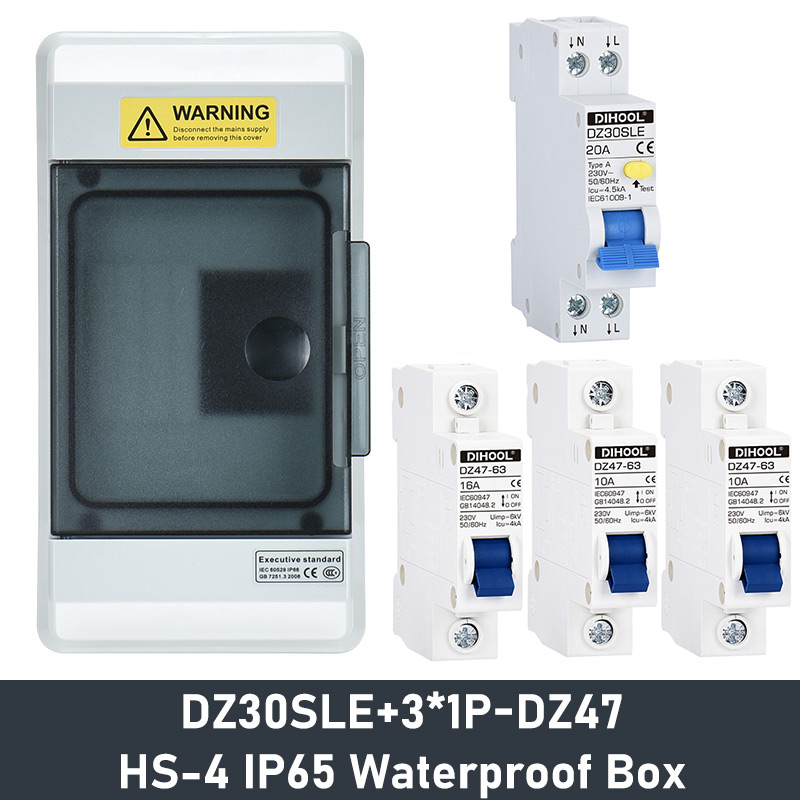

HKD-4A

ModelHKD-4A
Residual Current Circuit Breaker Parameters
Pole1P+N
Rated Current20A
Rated Voltage UeAC230V or AC400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp2kV
Rated Breaking Capacity (Ics)4.5kA
Dielectric Test Voltage At And Ind. Freq. For 1min1kV
AC Circuit Breaker Parameters
Pole2*1P(10A) | 1*1P(16A)
Rated Voltage UeAC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)107*202*100

HKD-4B

ModelHKD-4B
Residual Current Circuit Breaker Parameters
Pole2P+PE (L N PE)
Rated Current10A,16A,20A,25A,32A,40A,50A,63A
Rated Voltage Ue120V/240V AC
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp4kV
Rated Breaking Capacity (Ics)6kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Residual leakage tripping current30mA/300mA
Thermo-Magnetic Release CharacteristicC-Curve (5-10In),D-Curve (10-14In)
Lightning
Protection
Parameters		The maximum flow Imax (kA)15
Nominal flux In (kA)10
Response time t (ns)＜25
The ground terminal links the stranded copper conductors6mm²
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)107*202*100

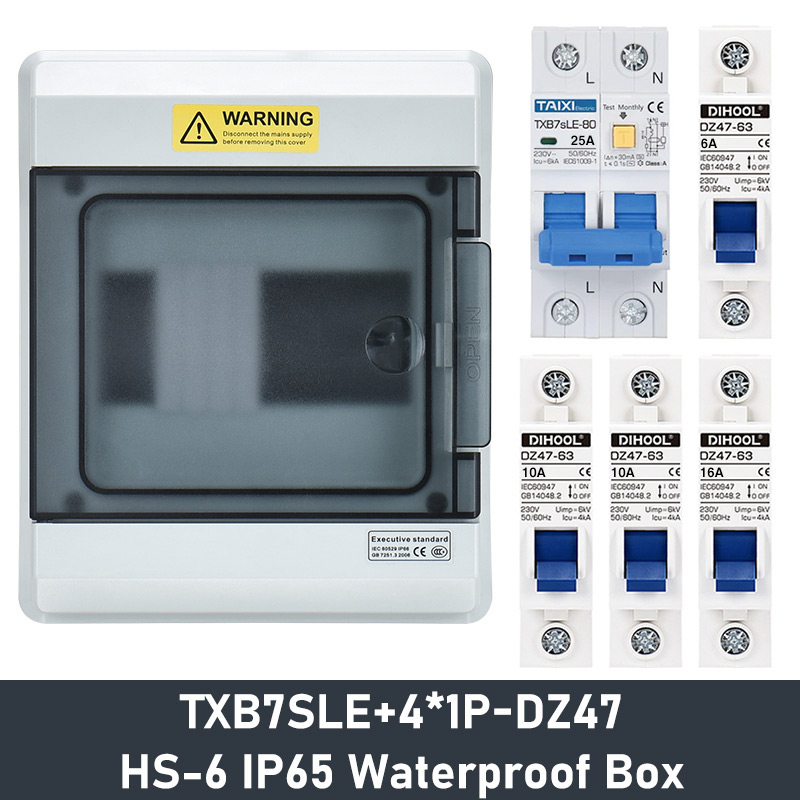

HKD-6A

ModelHKD-6A
Residual Current Circuit Breaker Parameters
Pole1P+N
Rated Current25A
Rated Voltage UeAC230V or AC400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp2kV
Rated Breaking Capacity (Ics)4.5kA
Dielectric Test Voltage At And Ind. Freq. For 1min1kV
AC Circuit Breaker Parameters
Pole1*1P(6A) | 2*1P(10A) | 1*1P(16A)
Rated Voltage UeAC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)165*200*100

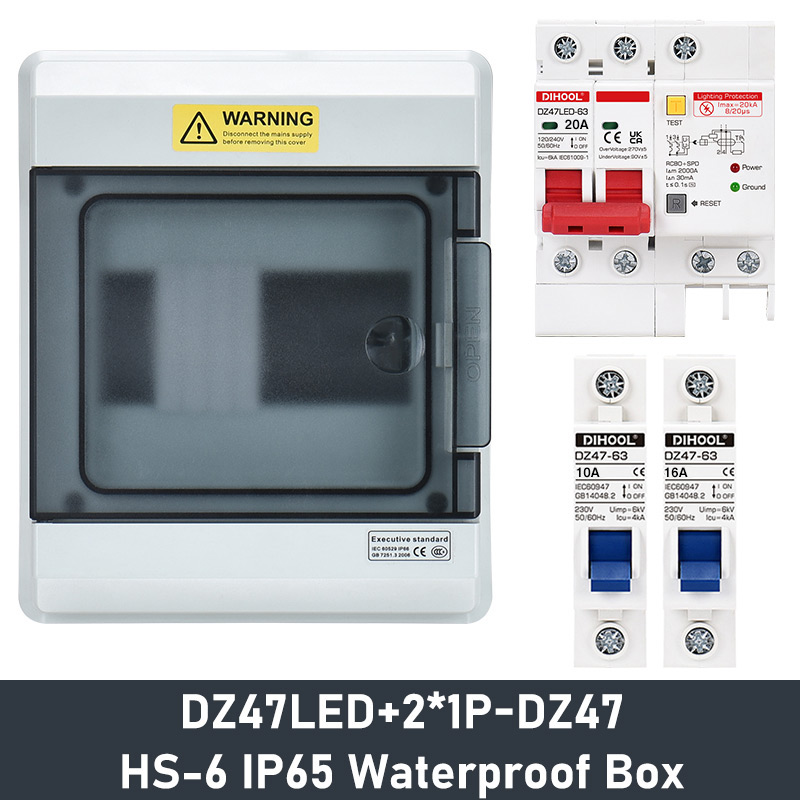

HKD-6B

ModelHKD-6B
Residual Current Circuit Breaker Parameters
Pole2P+PE (L N PE)
Rated Current20A
Rated Voltage Ue120V/240V AC
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp4kV
Rated Breaking Capacity (Ics)6kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Residual leakage tripping current30mA/300mA
Thermo-Magnetic Release CharacteristicC-Curve (5-10In),D-Curve (10-14In)
Lightning
Protection
Parameters		The maximum flow Imax (kA)15
Nominal flux In (kA)10
Response time t (ns)＜25
The ground terminal links the stranded copper conductors6mm²
AC Circuit Breaker Parameters
Pole1*1P(10A) | 1*1P(16A)
Rated Voltage UeAC90V-125V  AC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)165*200*100

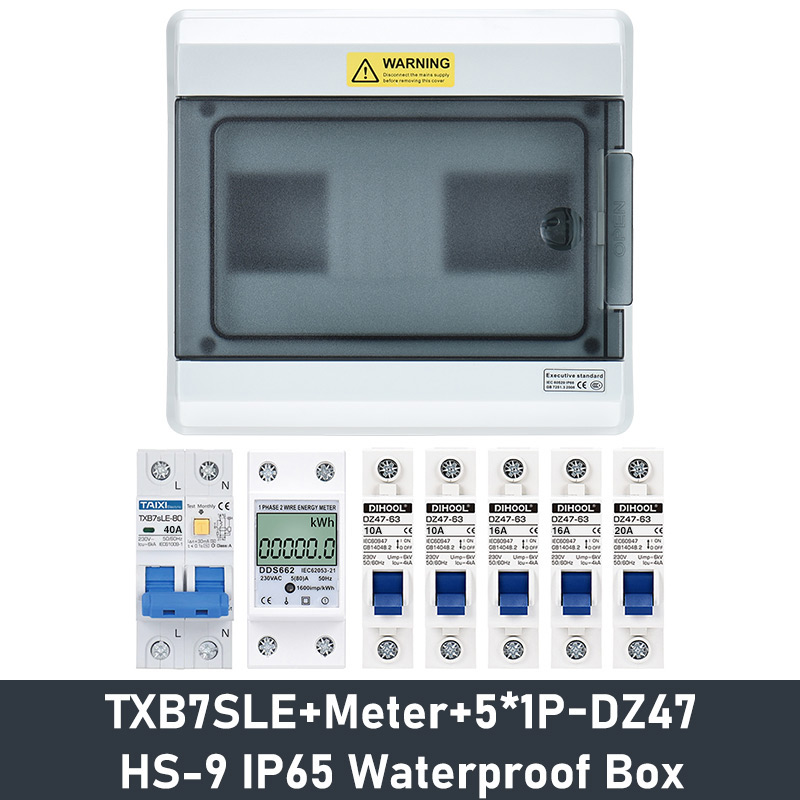

HKD-9A

ModelHKD-9A
Residual Current Circuit Breaker Parameters
Pole1P+N
Rated Current40A
Rated Voltage Ue110V / 220V AC
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp4kV
Rated Breaking Capacity (Ics)4.5kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
AC Circuit Breaker Parameters
Pole2*1P(10A) | 2*1P(16A) | 1*1P(20A)
Rated Voltage UeAC90V-125V  AC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Meter Circuit Breaker Parameters
Meter Voltage220V / 110V
Meter CurrentMaximum Current 80A
Meter DisplayLCD Display (Voltage Current Power)
Meter Insulating Property1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Power0.1-17000W
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)165*200*100

HKD-9B

ModelHKD-9B
Residual Current Circuit Breaker Parameters
Pole2P+PE (L N PE)
Rated Current32A
Rated Voltage Ue120V/240V AC
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp4kV
Rated Breaking Capacity (Ics)6kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Lightning
Protection
Parameters		The maximum flow Imax (kA)15
Nominal flux In (kA)10
Response time t (ns)＜25
The ground terminal links the stranded copper conductors6mm²
AC Circuit Breaker Parameters
Pole2*1P(10A) | 1*1P(16A)
Rated Voltage UeAC90V-125V  AC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Meter Circuit Breaker Parameters
Meter Voltage220V / 110V
Meter CurrentMaximum Current 80A
Meter DisplayLCD Display (Voltage Current Power)
Meter Insulating Property1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Power0.1-17000W
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)107*202*100

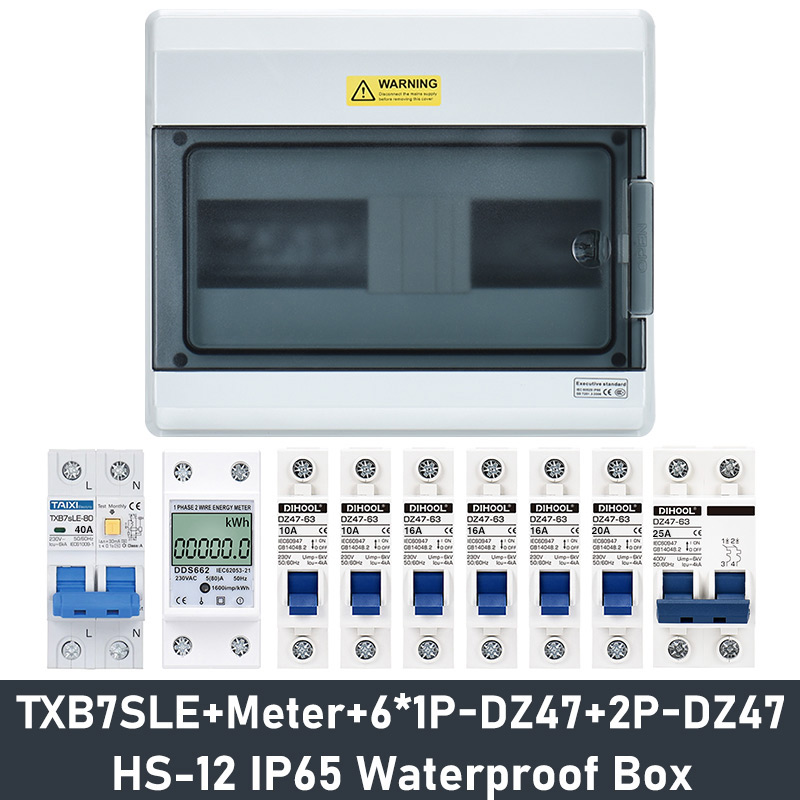

HKD-12A

ModelHKD-12A
Residual Current Circuit Breaker Parameters
Pole1P+N
Rated Current40A
Rated Voltage Ue110V / 220V AC
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp4kV
Rated Breaking Capacity (Ics)4.5kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
AC Circuit Breaker Parameters
Pole2*1P(10A) | 3*1P(16A) | 1*1P(20A) | 1*2P(25A)
Rated Voltage UeAC90V-125V  AC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Meter Circuit Breaker Parameters
Meter Voltage220V / 110V
Meter CurrentMaximum Current 80A
Meter DisplayLCD Display (Voltage Current Power)
Meter Insulating Property1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Power0.1-17000W
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)273*230*110

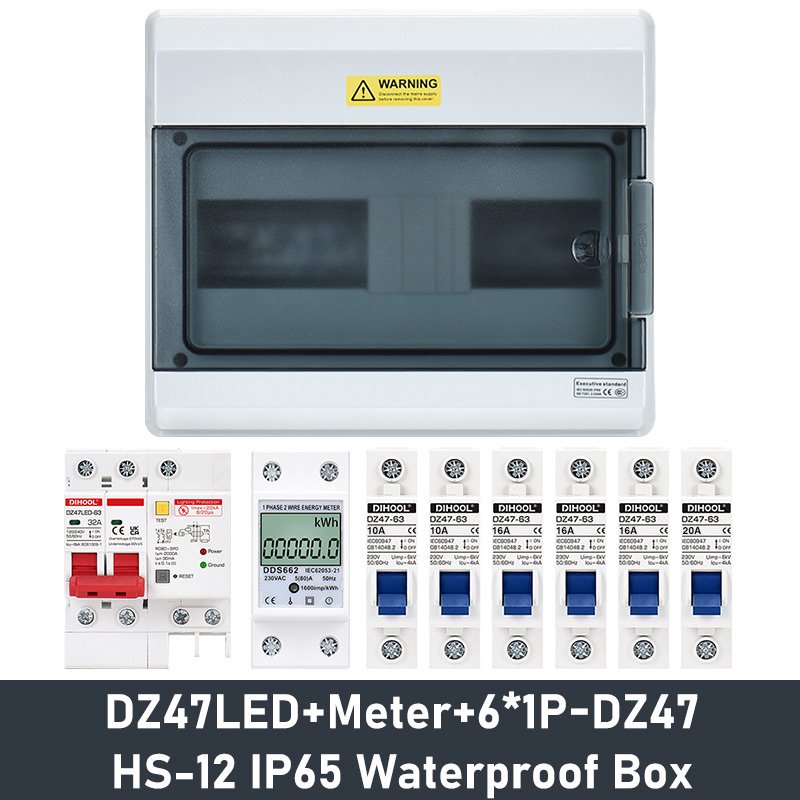

HKD-12B

ModelHKD-12B
Residual Current Circuit Breaker Parameters
Pole2P+PE (L N PE)
Rated Current32A
Rated Voltage Ue120V/240V AC
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp4kV
Rated Breaking Capacity (Ics)6kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Lightning
Protection
Parameters		The maximum flow Imax (kA)15
Nominal flux In (kA)10
Response time t (ns)＜25
The ground terminal links the stranded copper conductors6mm²
AC Circuit Breaker Parameters
Pole2*1P(10A) | 3*1P(16A) | 1*1P(20A)
Rated Voltage UeAC90V-125V  AC200-400V
Insulation Voltage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity (Ics)4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Meter Circuit Breaker Parameters
Meter Voltage220V / 110V
Meter CurrentMaximum Current 80A
Meter DisplayLCD Display (Voltage Current Power)
Meter Insulating Property1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Power0.1-17000W
Box Parameters
Box MaterialFlame Retardant, PC+ABS Plastic, UV-Proof
Operating Temperature-25°C~+55°C
Altitude2000 Meter
Allowable Relative Humidity0~95%, no condensation
Box Size(MM)273*230*110
