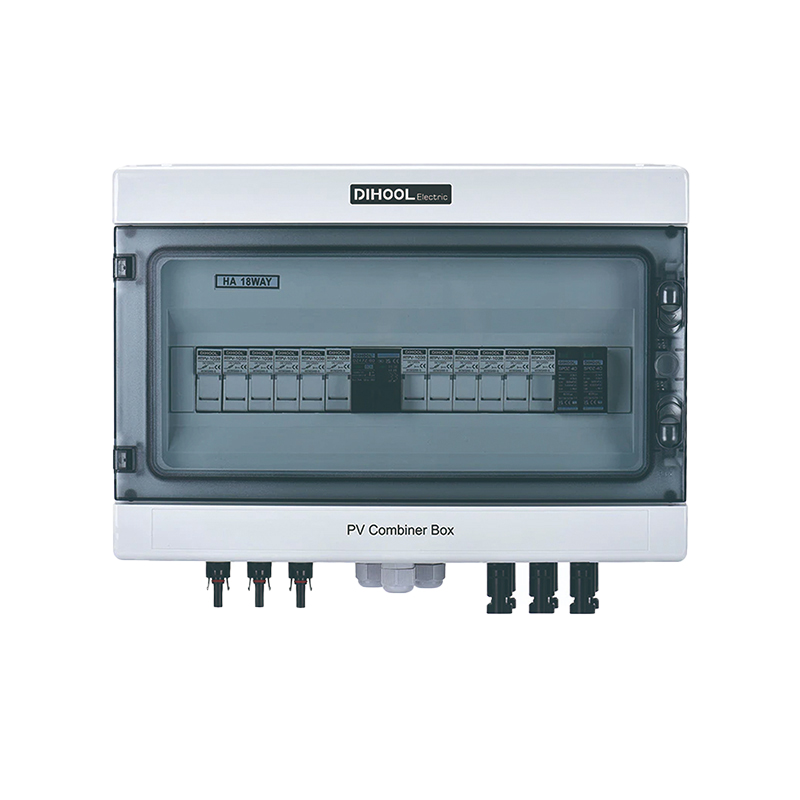

HAPV-1000V-6S1 PV Combiner Box

Quantity:

Product Features

- Using high-quality PC engineering plastics, long service life, IP65 water-proof and dustproof, anti-ultraviolet, fire-retardant and flame-retardant.
- Both positive and negative poles have fuse protection

PV Combiner Box
Technical Data
Download

PRODUCT INTRODUCTION

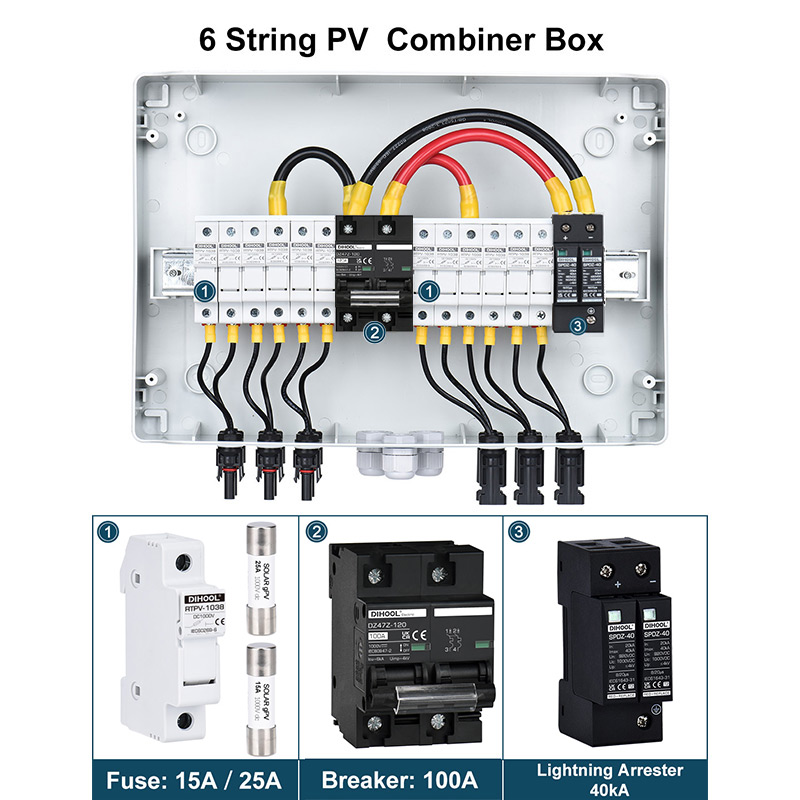

HAPV PV Combiner Box is used to connect photovoltaic solar panel arrays and inverters. The maximum input voltage is DC500V/DC1000V.The box body is made of PC engineering materials. It has the functions of lightning protection, overload protection, short circuit protection, isolation circuit, photovoltaic confluence and so on. The HAPV photovoltaic combiner box adopts 8-bit/12-bit/18-bit box configuration, and the photovoltaic combiner box with 1/2/4/6 input and 1 output can be customized according to customer requirements.
HAPV photovoltaic combiner box is designed and configured in accordance with the requirements of "Technical Specifications for Photovoltaic Combiner Equipment" CGC/GF 037:2014.

TECHNICAL PARAMETERS

HAPV-DC500V-2S1

ModelHAPV-2S1
InputPV Input String2
Max Current8A12A20A
DC1000V Fuse10A15A25A
Cable2.5MM²2.5MM²4MM²
OutputPV Output String1
Max Current16A24A40A
Cable4MM²6MM²10MM²
Max VoltageDC500V/1000V
DC MCB20A32A50A
DC SPD2P 8/20μs 40kA
Cable2.5MM²2.5MM²4MM²
Other ParametersProtection ClassIP65
Temperature Range-30℃~+60℃
Product Size215MM*250MM*110MM
Package Size220MM*210MM*110MM
Cooling MethodNatural Cooling



HAPV-DC500V-2S2

ModelHAPV-2S2
InputPV Input String2
Max Current12A20A
DC1000V Fuse15A25A
Cable4MM²4MM²
OutputPV Output String2
Max Current15A25A
Cable6MM²6MM²
Max VoltageDC500V/1000V
DC MCB16A25A
DC SPD2P 8/20μs 40kA
Cable2.5MM²4MM²
Other ParametersProtection ClassIP65
Temperature Range-30℃~+60℃
Product Size310MM*145MM*310MM
Package Size265MM*145MM*310MM
Cooling MethodNatural Cooling



HAPV-DC500V-4S1

ModelHAPV-4S1
InputPV Input String4
Max Current8A12A20A
DC1000V Fuse10A15A25A
Cable2.5MM²2.5MM²4MM²
OutputPV Output String1
Max Current32A48A80A
Cable6MM²10MM²16MM²
Max VoltageDC500V/1000V
DC MCB40A63A100A
DC SPD2P 8/20μs 40kA
Other ParametersProtection ClassIP65
Temperature Range-30℃~+60℃
Product Size300MM*300MM*140MM / 330MM*410MM*150MM
Package Size260MM*310MM*150MM / 300MM*420MM*160MM
Cooling MethodNatural Cooling



HAPV-DC500V-6S1

ModelHAPV-6S1
InputPV Input String6
Max Current8A12A
DC1000V Fuse10A15A
Cable2.5MM²2.5MM²
OutputPV Output String1
Max Current48A72A
Cable10MM²16MM²
Max VoltageDC500V/1000V
DC MCB63A100A
DC SPD2P 8/20μs 40kA
Cable2.5MM²4MM²
Other ParametersProtection ClassIP65
Temperature Range-30℃~+60℃
Product Size330MM*410MM*150MM
Package Size300MM*420MM*160MM
Cooling MethodNatural Cooling

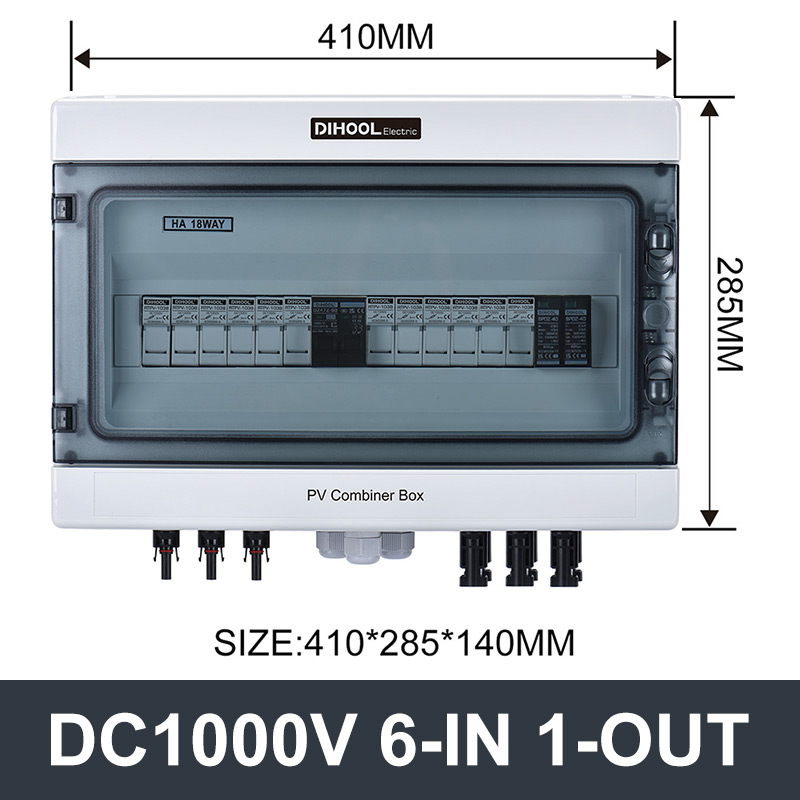

Outline Dimension Drawing
