| Model | DZ47ZH | |||
| Rated Current | 6A,10A,15A,20A,25A,30A,40A,50A,60A,80A,100A.120A | |||
| Poles | 1P | 2P | 3P | 4P |
| Rated Voltage Ue | DC250V | DC500V | DC750V | DC1000V |
| Insulation Volage Ui | 500V | 1000V | ||
| Rated Impulse Withstand Voltage (1.2/50) Uimp | 4kV | |||
| Rated Breaking Capacity (Ics) | 6kA | |||
| Dielectric Test Voltage At And Ind. Freq. For 1min | 2kV | |||
| Protection Class | IP20 | |||
| Thermo-MagneticRelease Characteristic | C Curve (5-7ln) | |||
| Electrical Life | 4000 | |||
| Mechanical Life | 10000 | |||

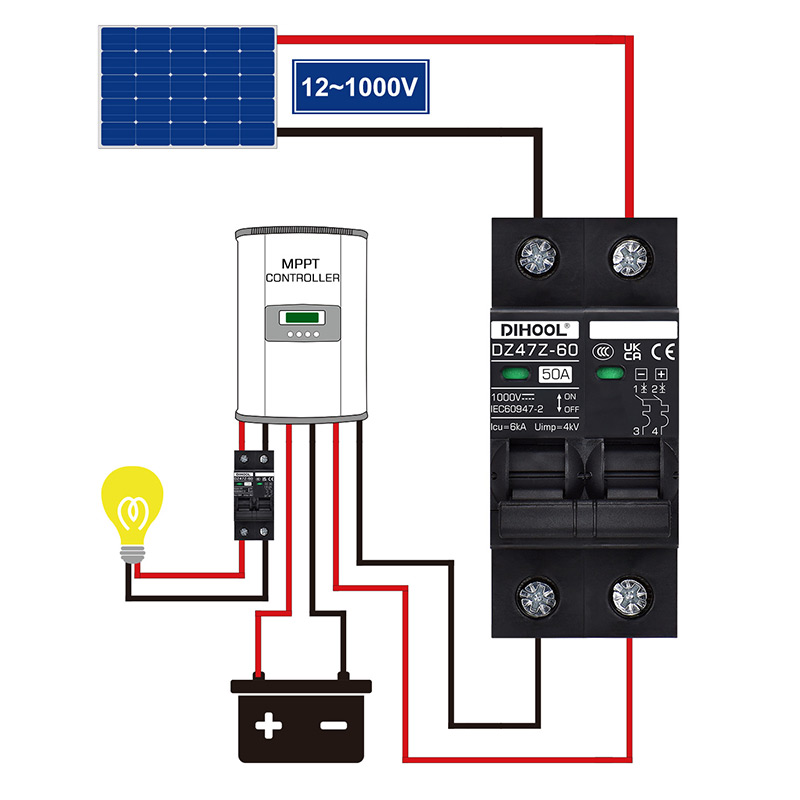

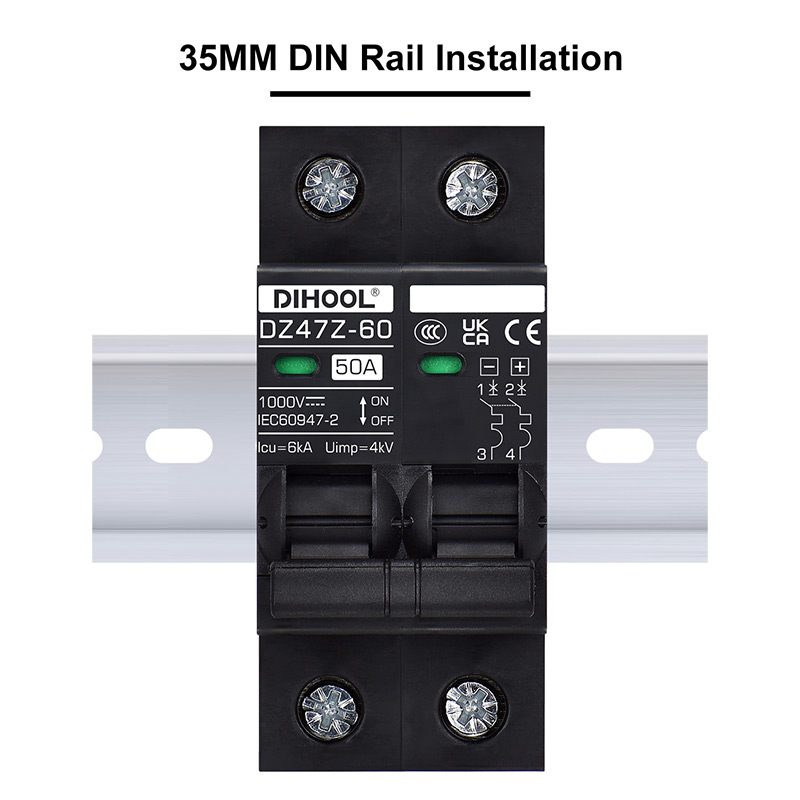

| Installation | 35MM DIN Rail or M3 Screw Side Mount | |||
| Reference Temperature For Setting Of Thermal Element | 30°C | |||
| Ambient Temperature | -5°C ~ +40°C | |||
| Terminal Connection Type | Phillips Screws | |||
| Tightening Torque | 3.0N.m | |||

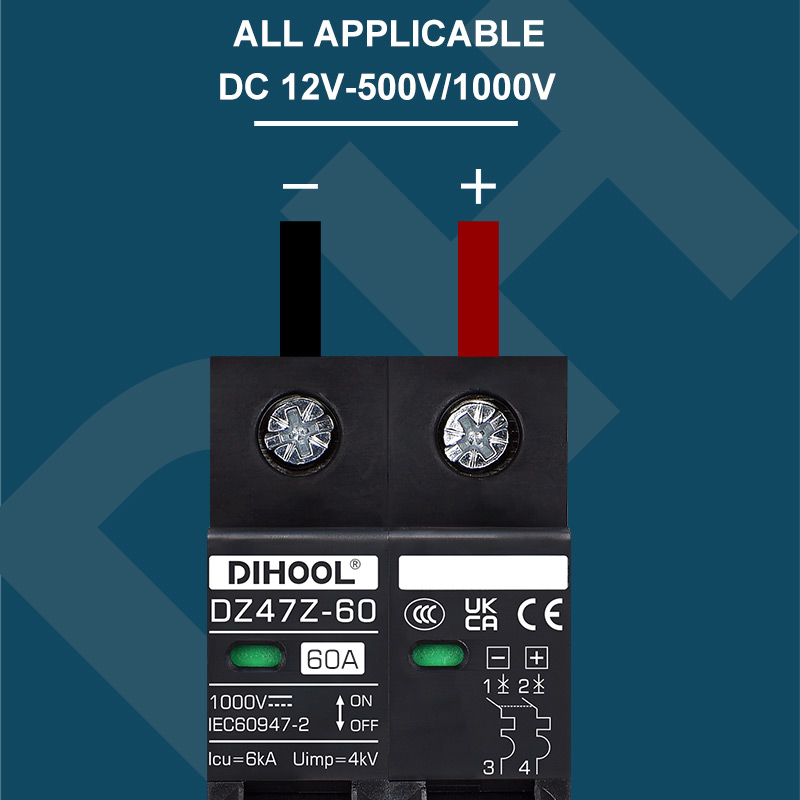

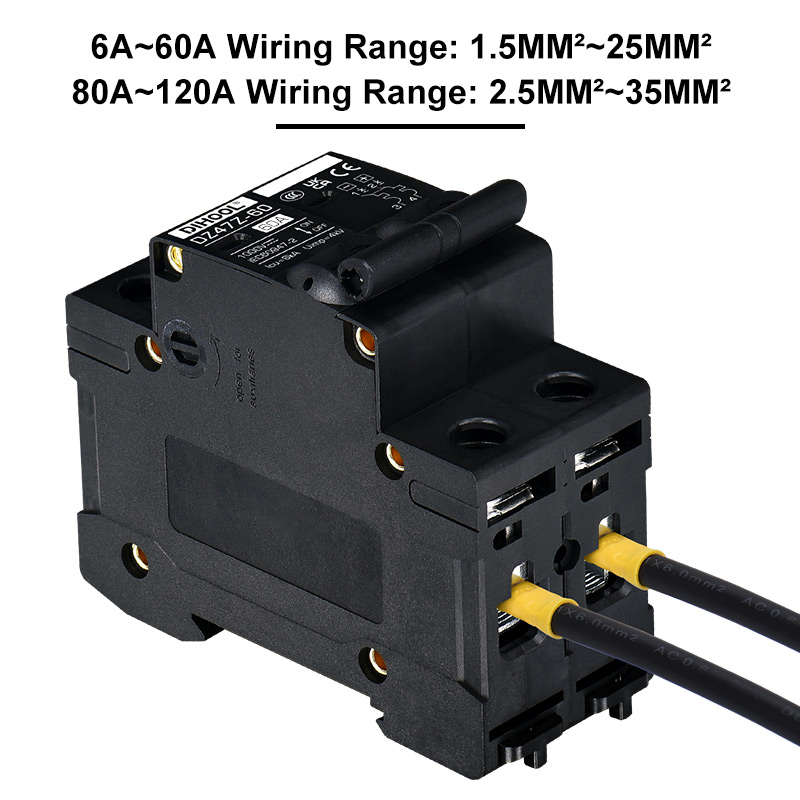

| Adapter Cable | 6-63A 1-10mm2 16-7AWG / 80-125A 8-35mm2 16-2AWG | |||
| International Standard | IEC60947-2 | |||

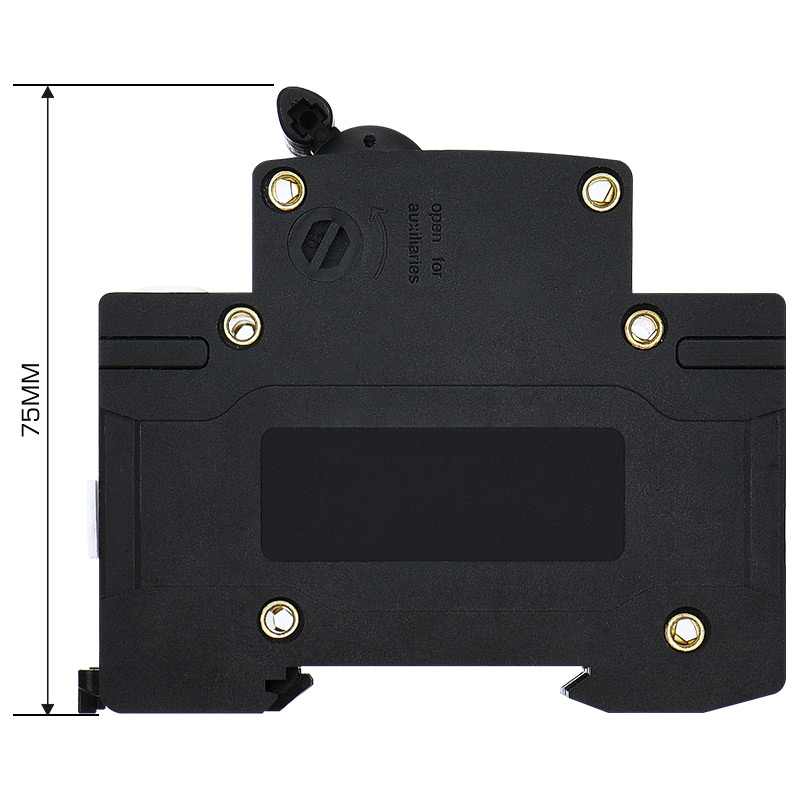

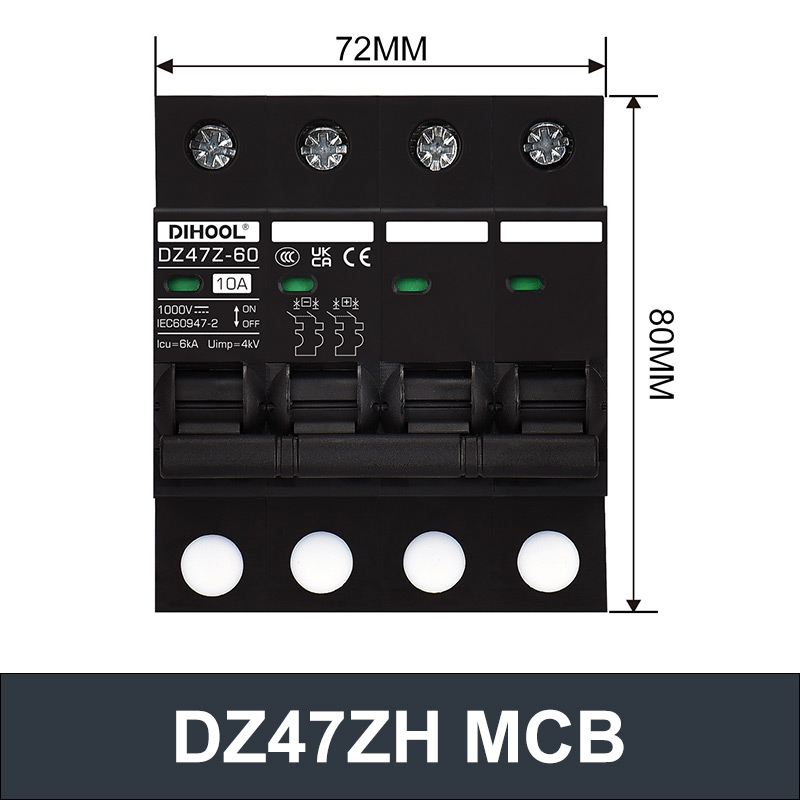

| Poles | H1 (MM) | H2 (MM) | H3 (MM) | W (MM) | L (MM) |
| 1P (6-63A) | 42 | 72 | 77 | 18 | 78.5 |
| 1P (80-125A) | 45 | 76 | 77 | 27 | 78.5 |
| 2P (6-63A) | 42 | 75 | 77 | 36 | 78.5 |
| 2P (80-125A) | 45 | 76 | 77 | 54 | 78.5 |
| 3P | 42 | 75 | 77 | 54 | 78.5 |
| 4P | 42 | 75 | 77 | 72 | 78.5 |
