Product Description

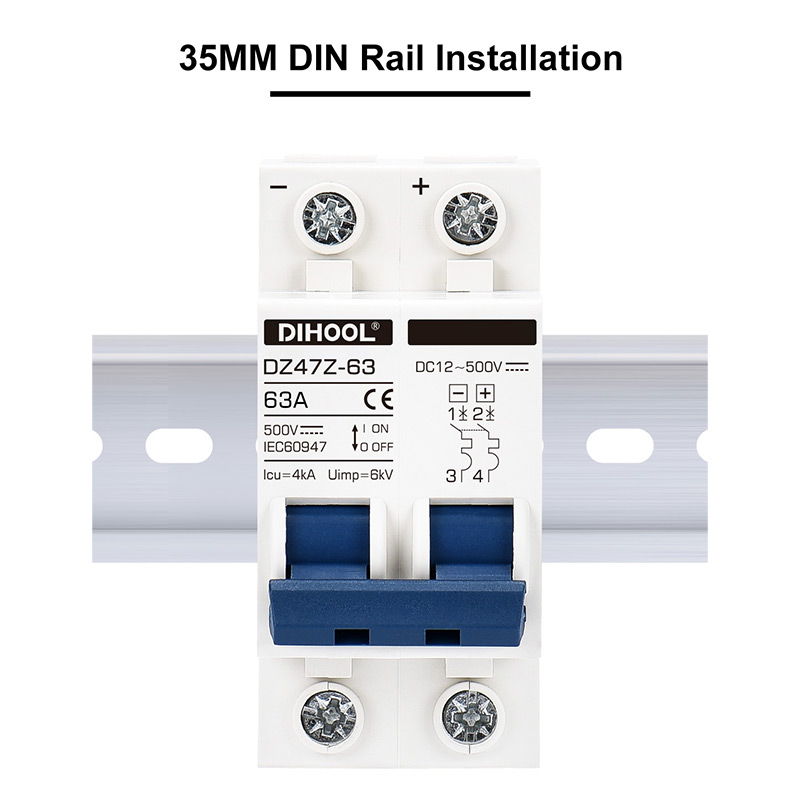

DZ47Z Solar DC circuit breaker are suitable for circuit with rated current below 120A and rated DC voltage of 1000V. For infrequent conversions. The product has beautiful appearance, standard rail installation, and has on-off display. The terminals have wiring functions up and down. Be sure to pay attention to the polarity of "+ / -" when wiring. It is used for four-pole circuit breakers in 1000V circuits, and the balance positive circuit is connected in series with two poles. The circuit breaker can also be equipped with accessories such as auxiliary contacts, alarm contacts and shunt release, which are widely used in communications, batteries, locomotives and other industries.
DC circuit breaker comply with IEC60947-2-1997, GB14048.2-200.1 standards

Poles	1P	2P	1P	2P
Breaking Capacity	6kA	6kA	6kA	6kA
Max Working Voltage	DC250V	DC500V	DC750V	DC1000V

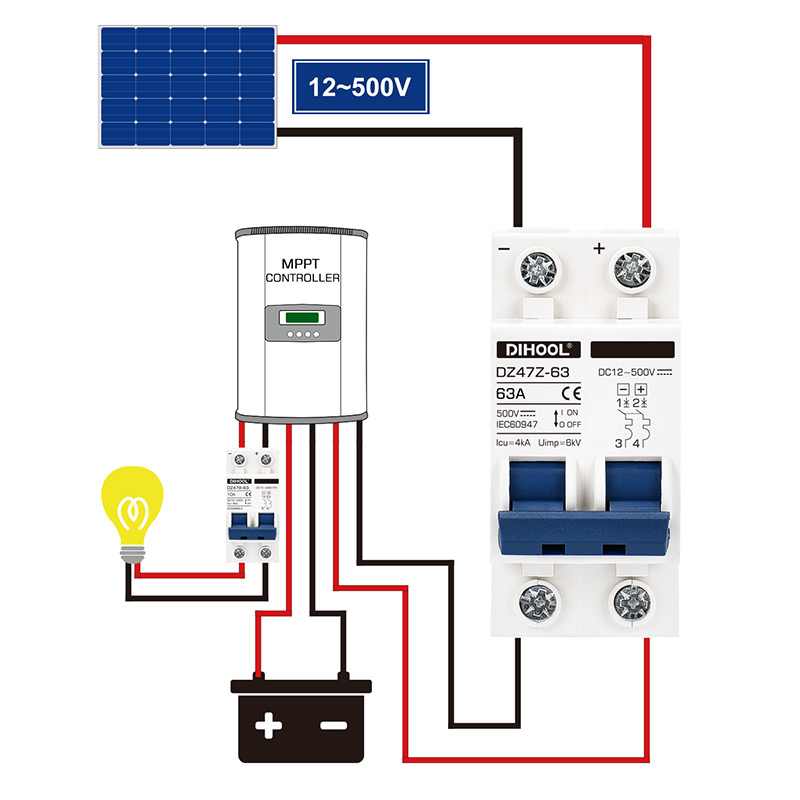

Wiring Diagram
Remarks: ①The circuit breaker has no polarity, and the positive and negative poles can be switched. ②Cable wiring can be entered at the bottom and exit at the top, and can be entered at the top and exit at the bottom.

MAIN TECHNICAL PARAMETERS

TEMPERATURE COMPENSATION

When the ambient temperature is not a benchmark of 30 degrees , the reference correction factor is as folows .

CONNECTION

TRIPPING CHARACTERISTIC CURVE -- C TYPE

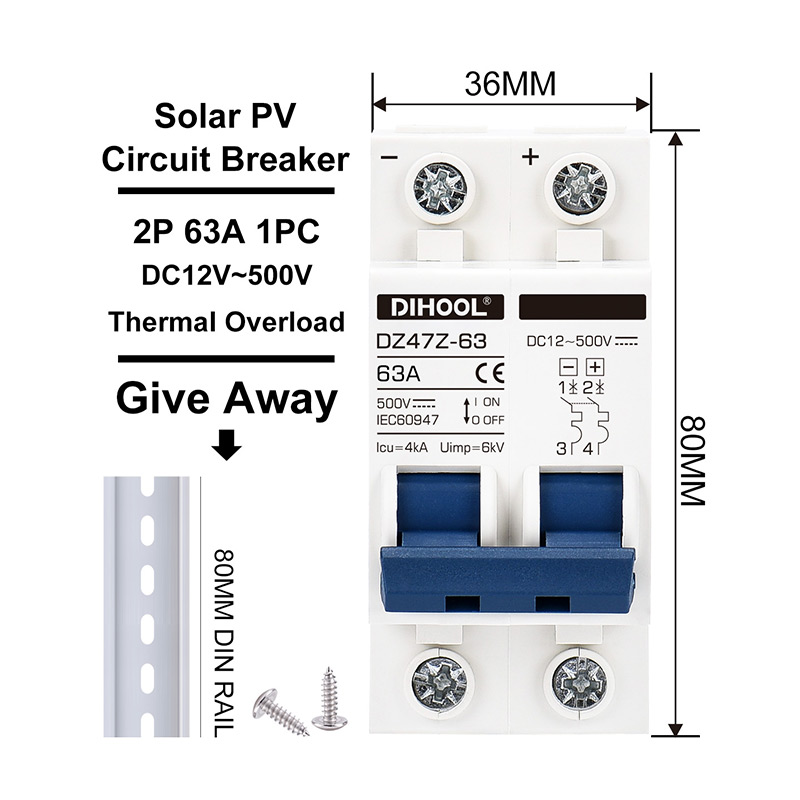

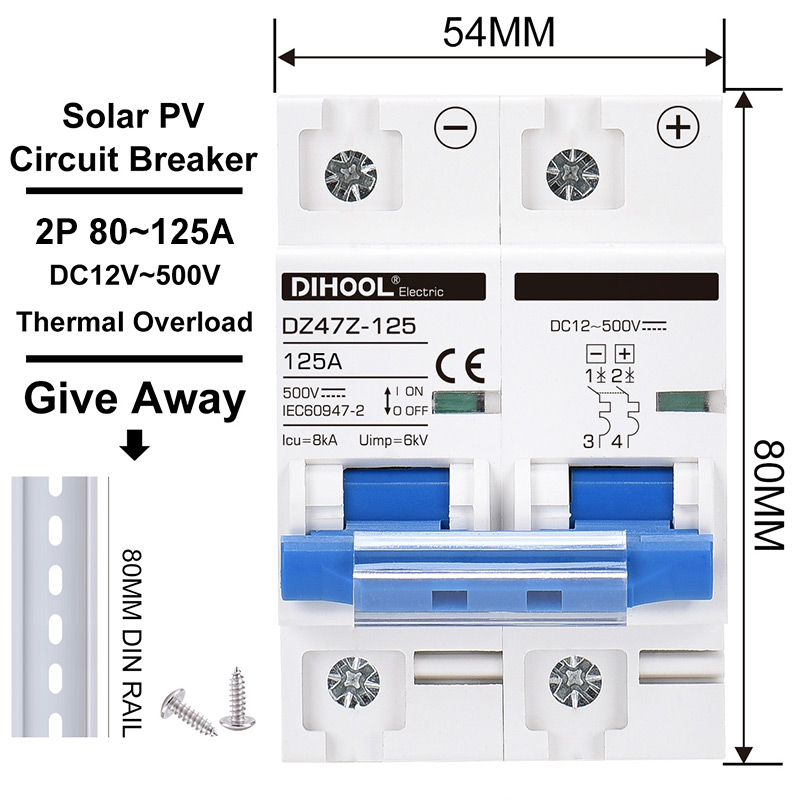

OUTLINE AND INSTALLATION DIMENSIONS
