SCOPE OF APPLICATION

DZ47X AC and DC universal circuit breakers can be used in circuits with DC 12-400V or AC 90V-400V, and Miniature Circuit Breaker with rated currents ranging from 15A to 120A. B-curve (3-5ln) tripping design is adopted. The Miniature Circuit Breaker can be used in Home lighting, circuit on-off or application of DC circuit photovoltaic panels, UPS, batteries, inverters and other products for circuit overload protection or circuit isolation use.
It is not recommended to be used in high-power AC motor starting or high-power DC motor starting equipment, and it is easy to trip.
This Miniature Circuit Breaker meets the requirements of standards such as IEC60947-2.

Voltage	DC		AC
Poles	1P	2P	1P	2P
Breaking Capacity	4kA	4kA	4kA	4kA
Withstand Voltage	DC 12~440V	DC 12~440V	DC 12~440V	DC 12~440V

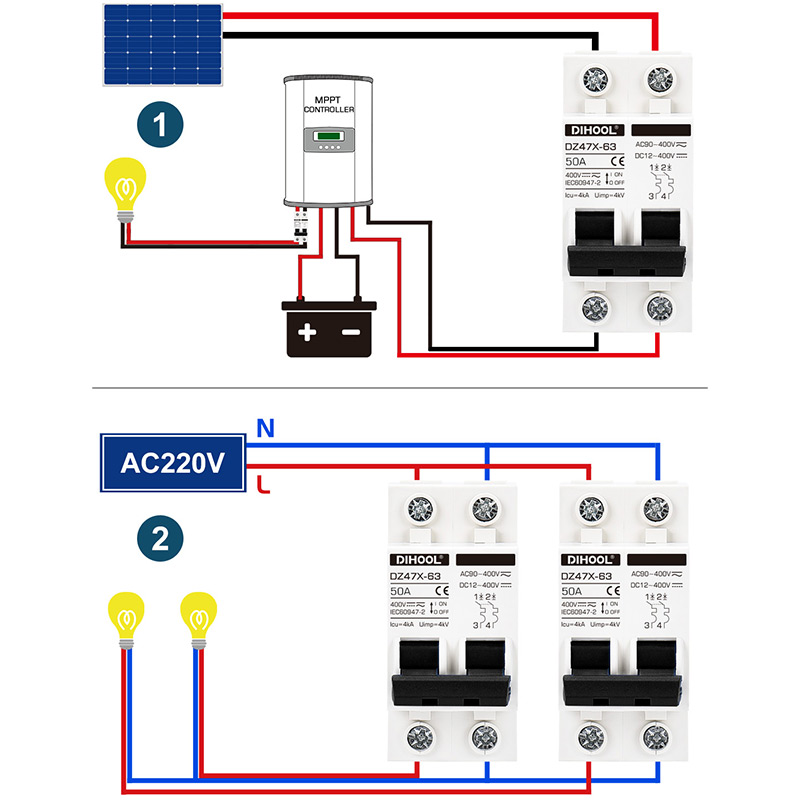

Wiring Diagram

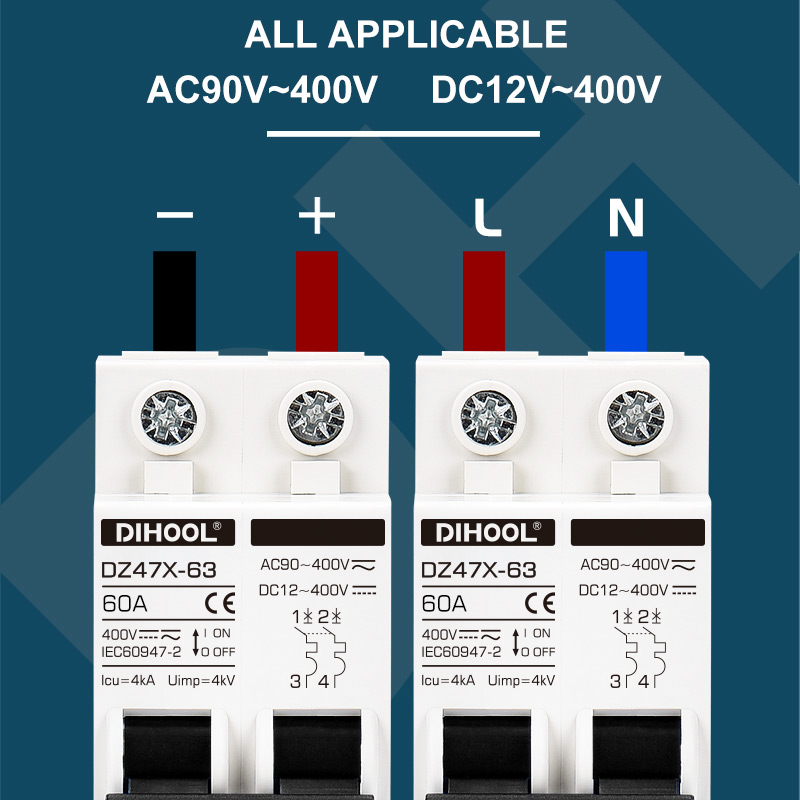

Remarks: ①The circuit breaker has no polarity, and the positive and negative poles can be switched. ②Cable wiring can be entered at the bottom and exit at the top, and can be entered at the top and exit at the bottom.

MAIN TECHNICAL PARAMETERS

TEMPERATURE COMPENSATION

When the ambient temperature is not a benchmark of 30 degrees , the reference correction factor is as folows .

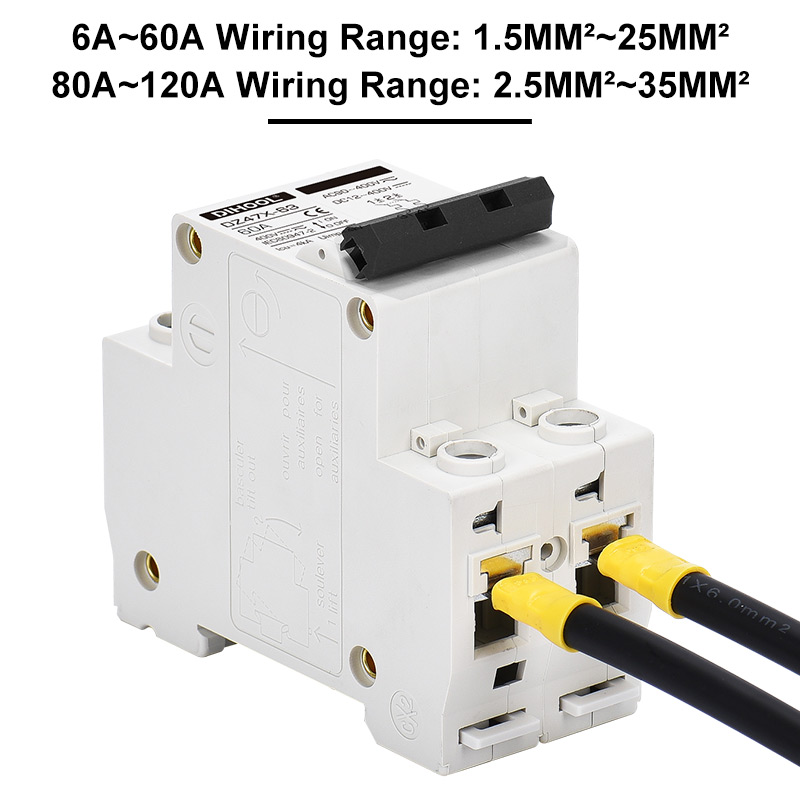

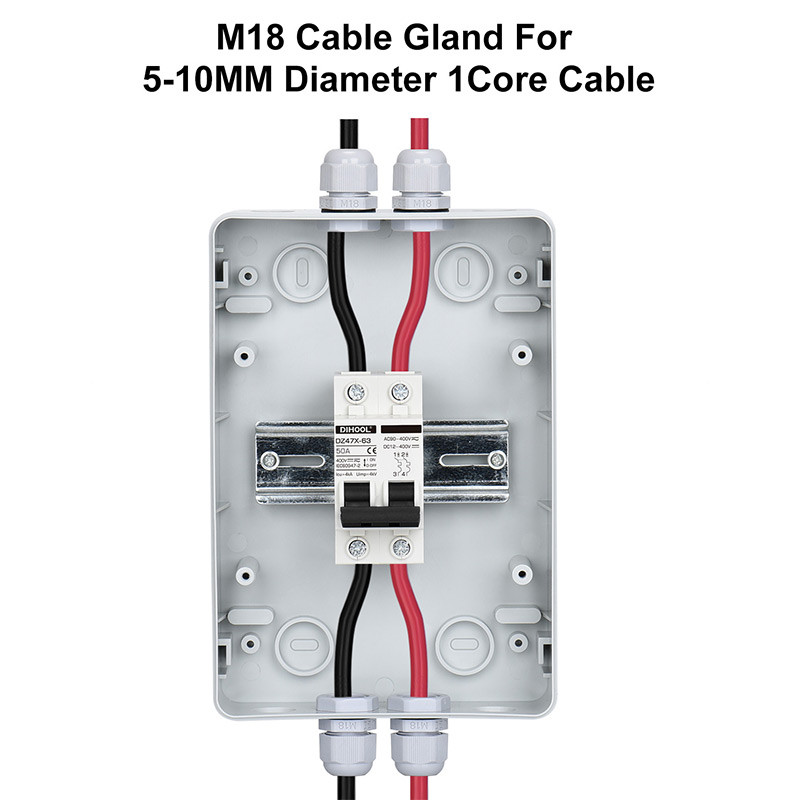

CONNECTION

TRIPPING CHARACTERISTIC CURVE -- C TYPE

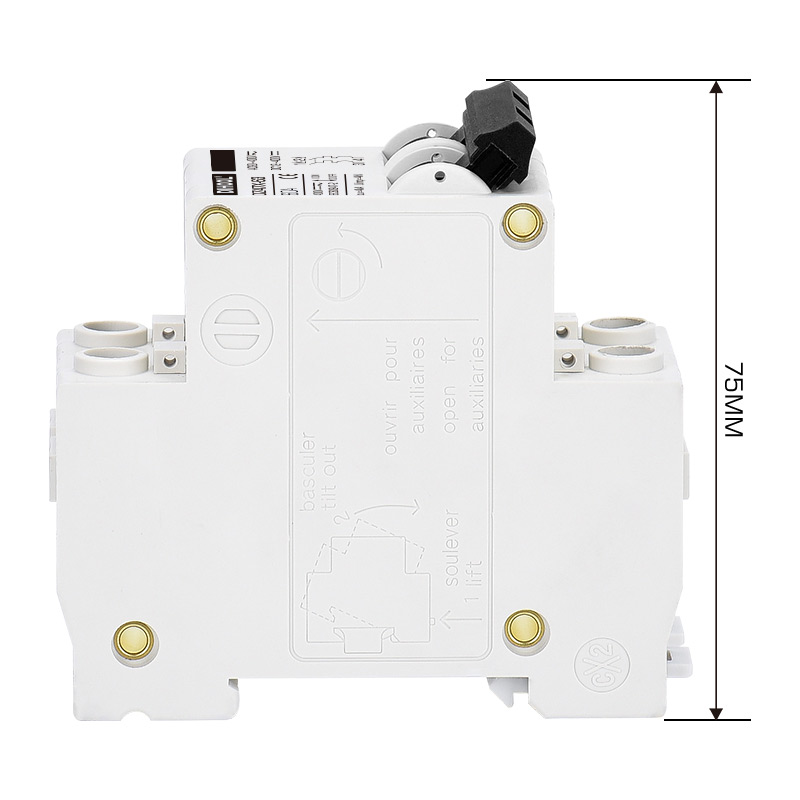

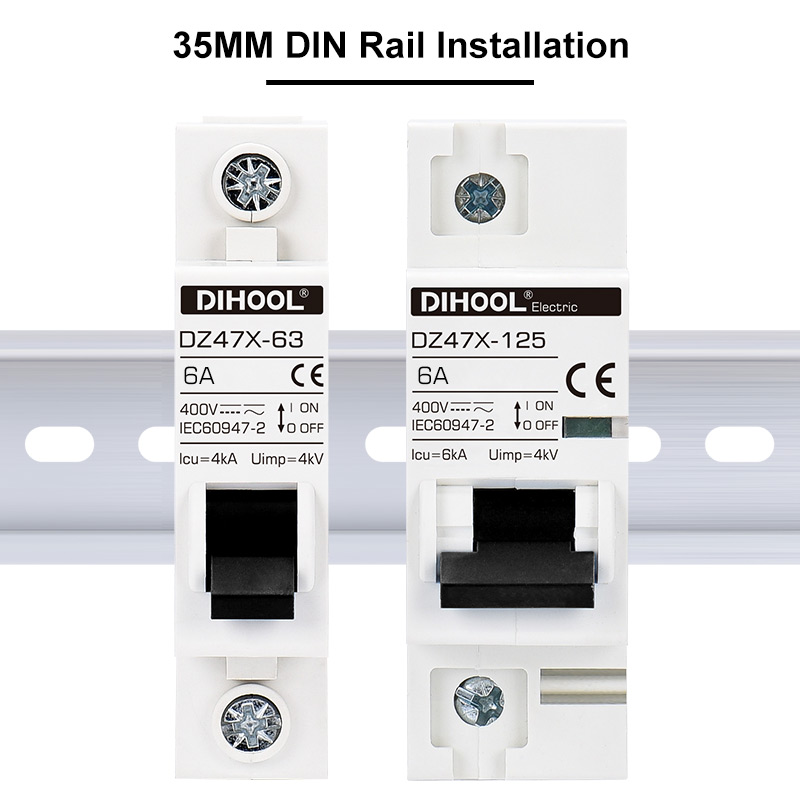

OUTLINE AND INSTALLATION DIMENSIONS
