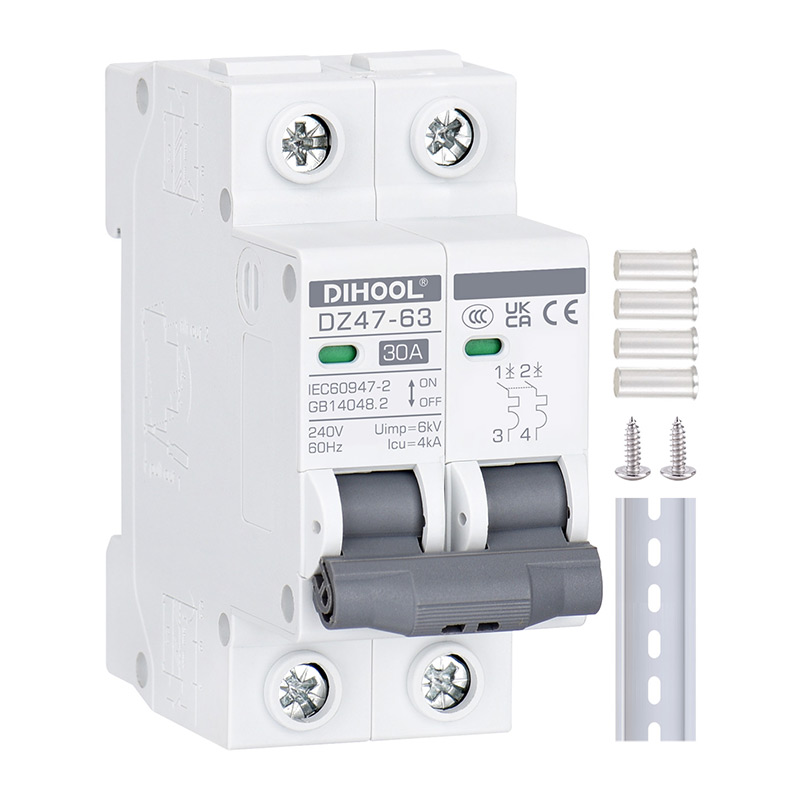

DZ47FB-1/2/3/4P Miniature Circuit Breaker Grey Handie With Indication

Quantity:

AC Breaker & Box
Technical Data
Download

TECHNICAL PARAMETERS

Electrical Features
ModelDZ47FB
Poles1P 2P 3P 4P
Rated Current6/10/16/20/25/32/40/50/63A
Rated Voltage UeAC200-400V
Insulation Volage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp6kV
Rated Breaking Capacity4kA
Dielectric Test Voltage At And Ind. Freq. For 1min2kV
Rated Breaking Capacity (Ics)4kA
Protection ClassIP20
Thermo-Magnetic Release CharacteristicB (3In ~ 6In); C (5In ~ 10In); D (10In ~ 20In).
Electrical Life4000
Mechanical Life20000
Installation35MM DIN Rail or M3 Screw Side Mount
Reference Temperature For Setting Of Thermal Element30°C
Ambient Temperature-5°C~+40°C
Terminal Connection TypePhillips Screws

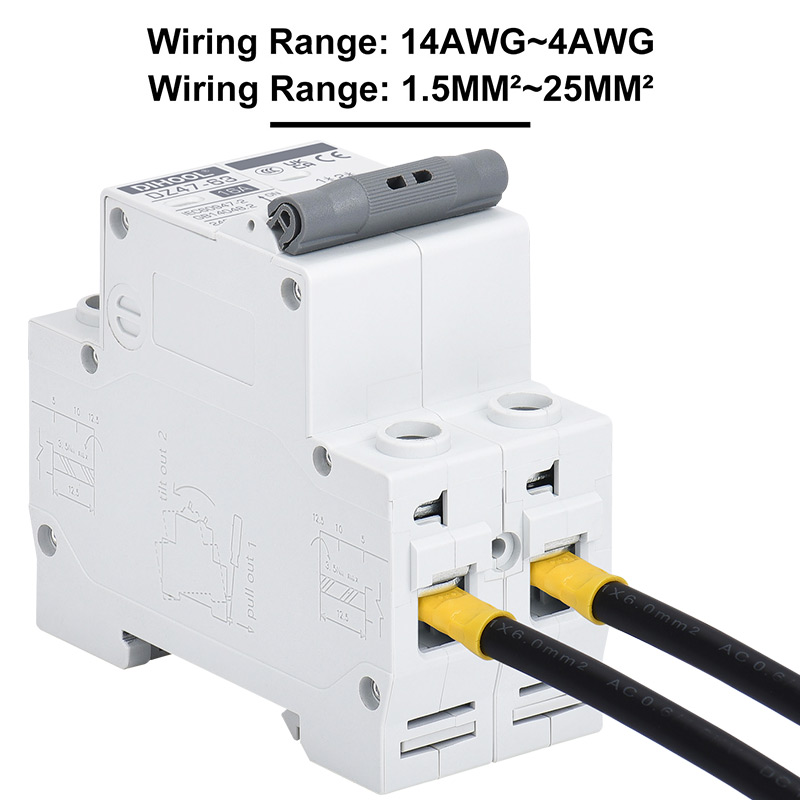

Adapter Cable6-63A: 1.5-25MM²; 80-125A: 4-35MM²
Tightening Torque2.5-3.0N.m
International StandardIEC60947

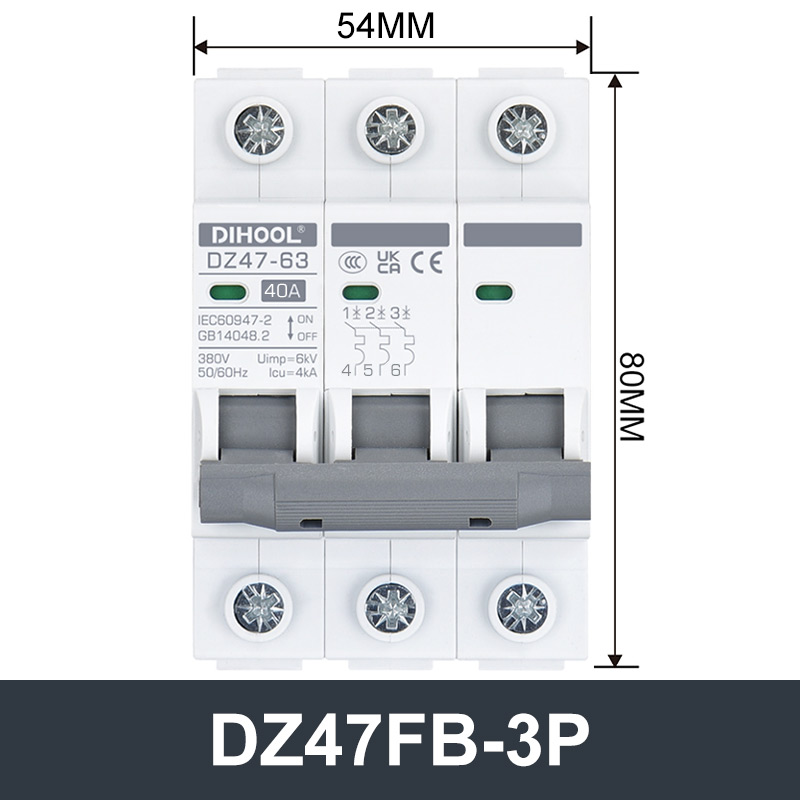

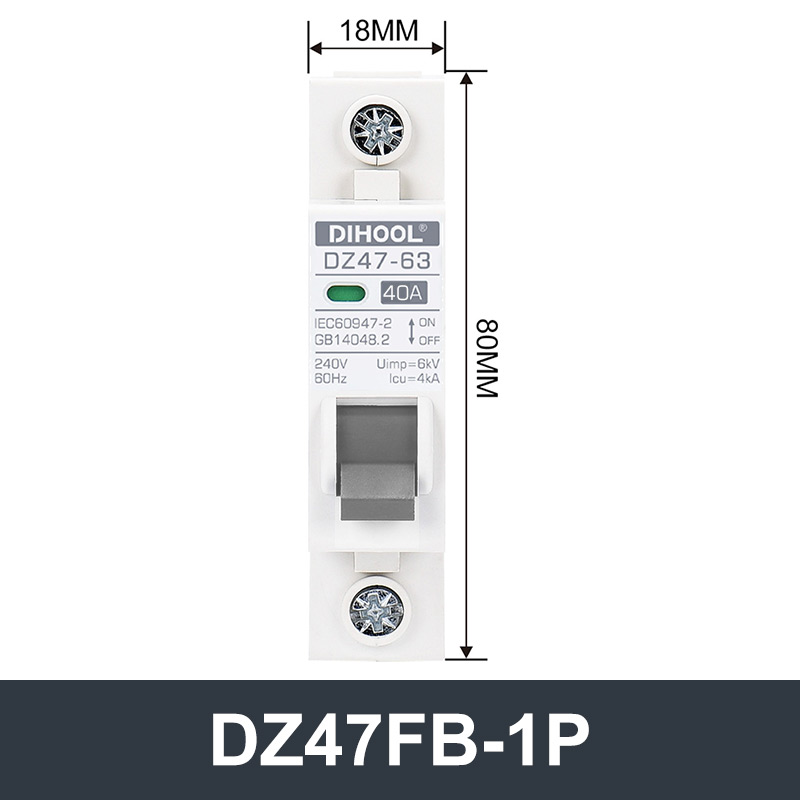

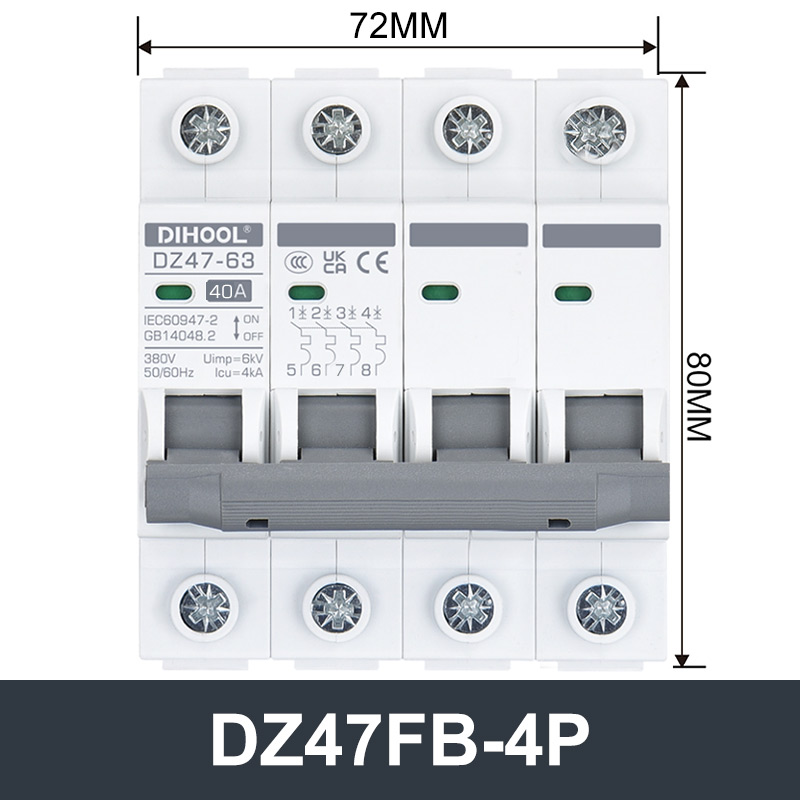

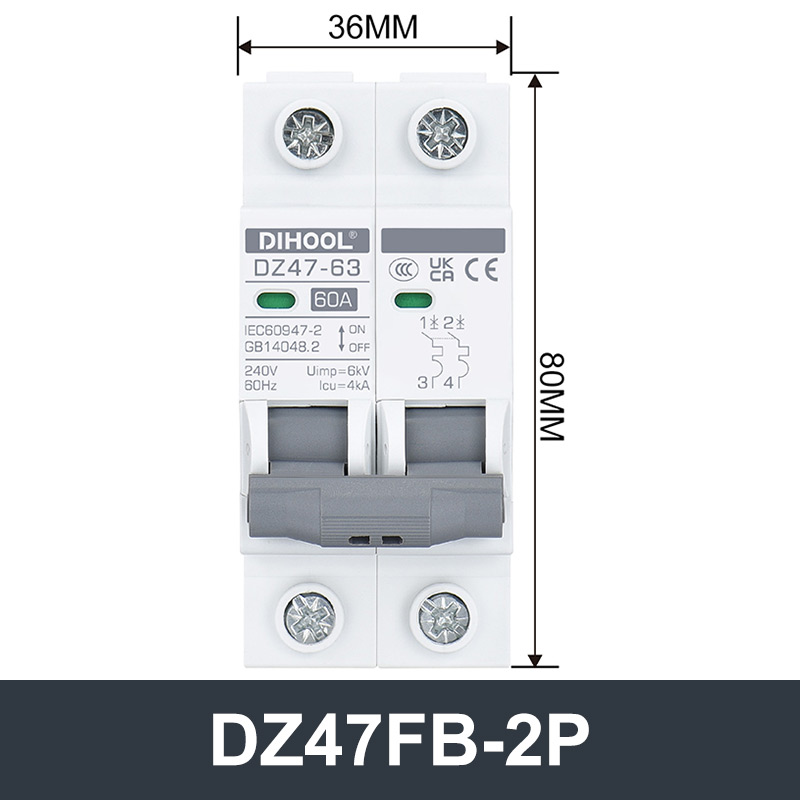

Outline Dimension Drawing
