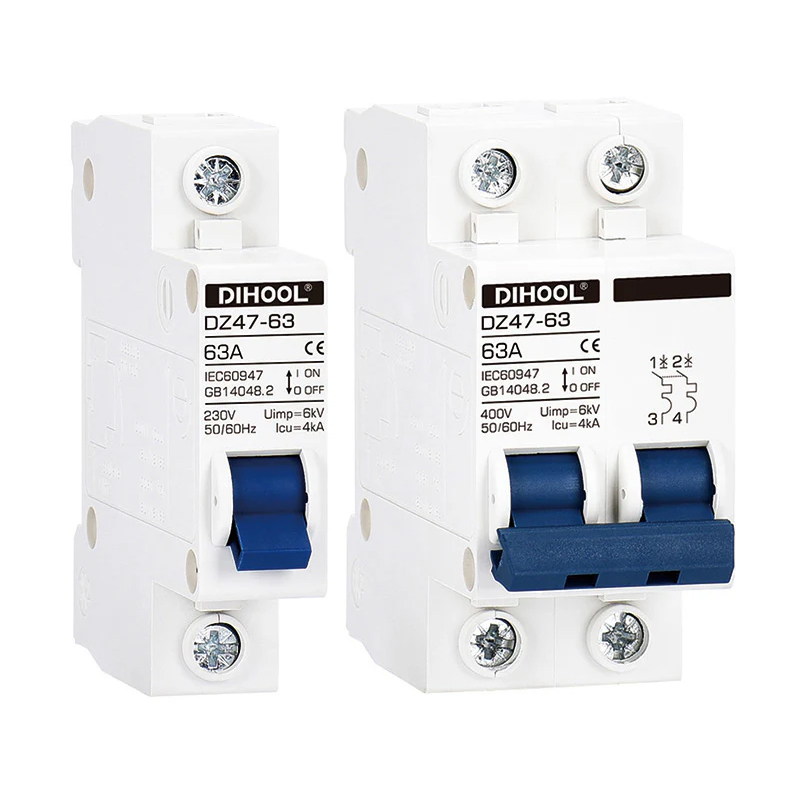

Product Description

DZ47-63 miniature circuit breaker is mainly used in the AC 50 / 60Hz, rated operating voltage of 230V / 400V and below, rated current of 63A circuit, the circuit breaker is mainly used in electrical wiring of modern buildings and overload, short circuit protection of equipment, also applies to infrequent operation and isolation of the line. Structural features of DZ47-63 MCB is composed of the plastic casing, operating mechanism, contact arc system, trip mechanism and other components. The casing uses a special plastic with high flame retardant and high strength, it has high impact resistance and light-weight. The parts of the operating mechanism of MCB are made of high-strength plastic, which ensures the sensitivity and reliability while obtaining the lowest moment of inertia so that the time from the short circuit fault to the trip mechanism operation is short. The tripping mechanism is composed of a bimetal over-load reverse-time trip mechanism and a short-circuit instantaneous electromagnetic mechanism. Contact arc system uses a special guide arc angle and aisle off room, and has significant current limiting characteristics.
The product complies with IEC60898 and GB10963.1 Standard requirements. DZ47-63miniature circuit breakers produced by DIHOOL have been certified by the national CCC and CE.

NORMAL OPERATING CONDITIONS AND INSTALLATION CONDITIONS

1. The upper limit of ambient temperature does not exceed +40 °C, the lower limit does not less than -5°C, and the average temperature of 24h does not exceed +35 °C.
2. Altitude of the installation site should not exceed 2000m.
3. Atmospheric relative humidity at ambient air temperature +40°C is not more than 50%, it allowed to have a higher relative humidity at lower temperatures; for example at + 20°C up to 90%. Special precautions should be taken for condensation that may occasionally occur on the product due to temperature changes.
4. Pollution Degree: Grade 2.
5. Installation conditions: Installed in a place without significant impact, vibration, non-hazardous (explosive) medium.

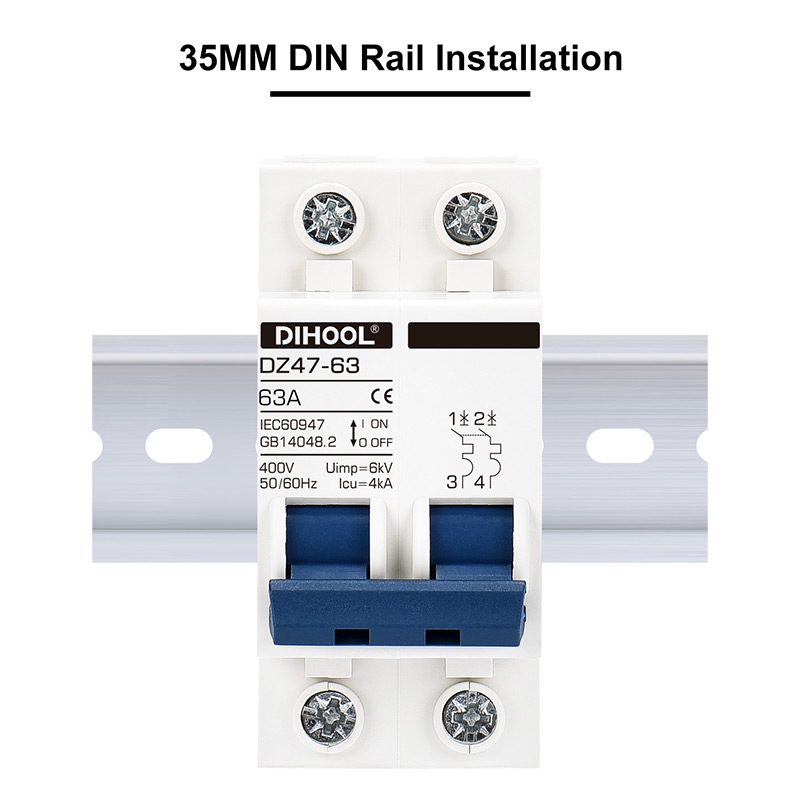

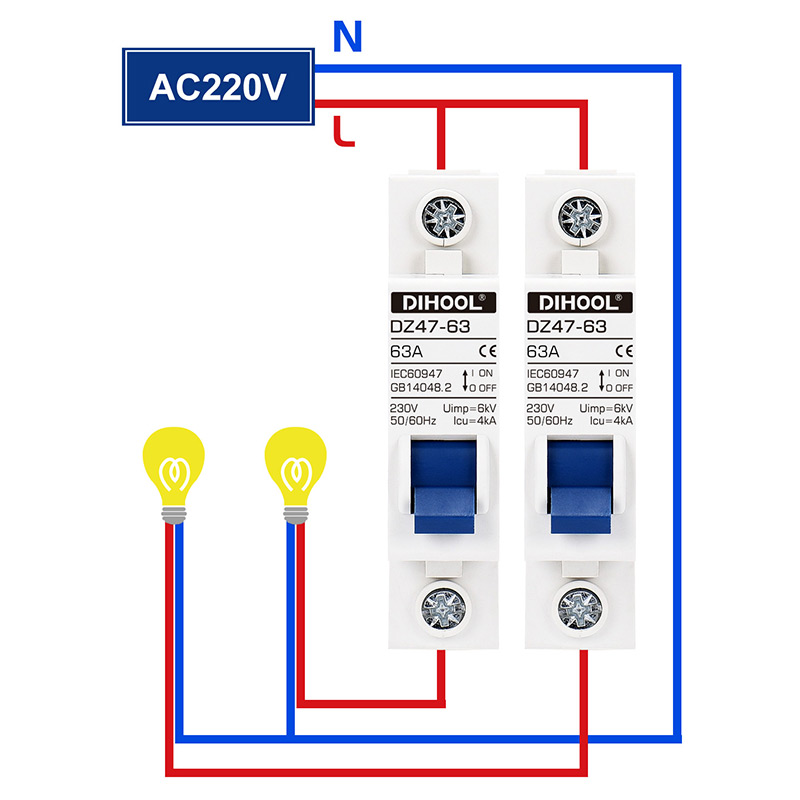

6. Installation: TH35-7.5 installation rail.
7. Installation category: Class II, III.

TECHNICAL PARAMETERS

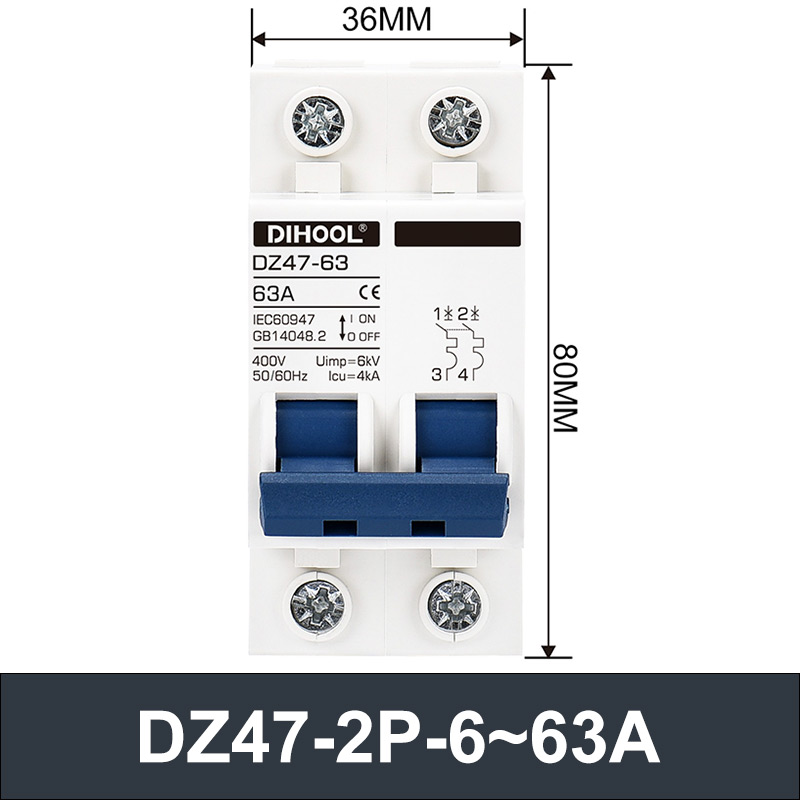

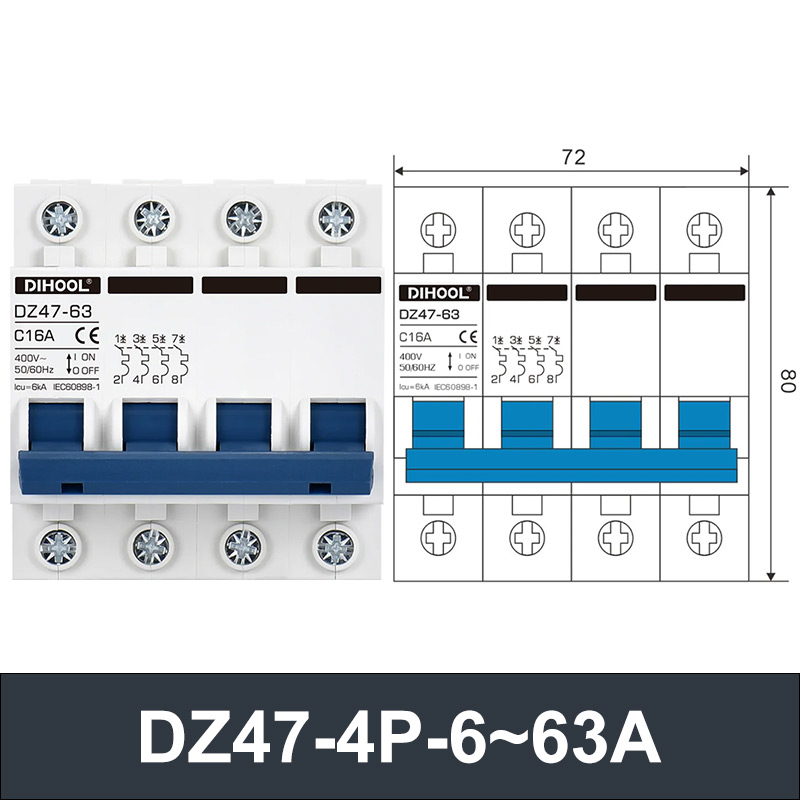

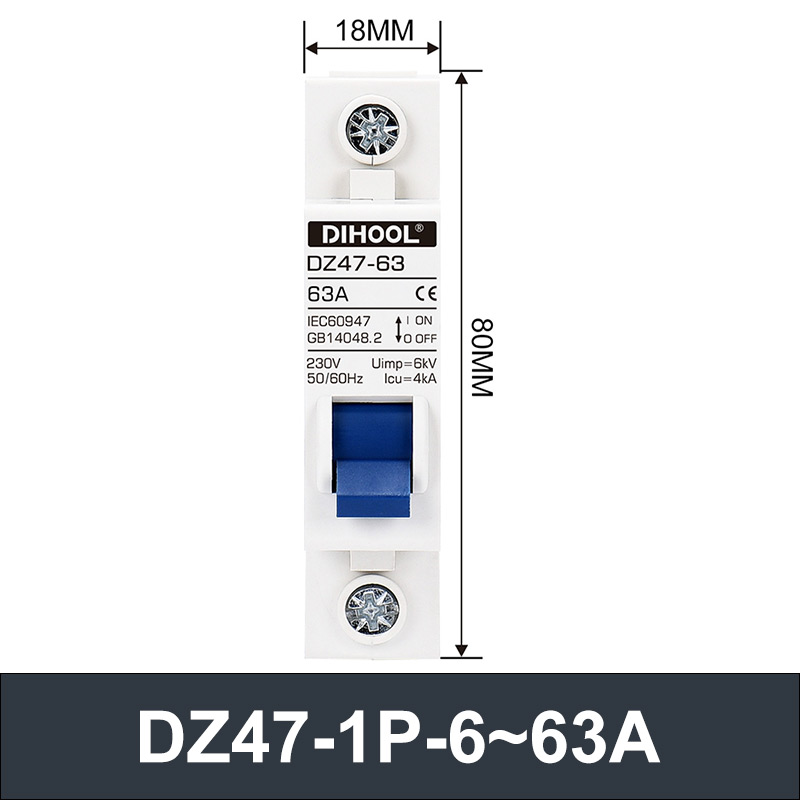

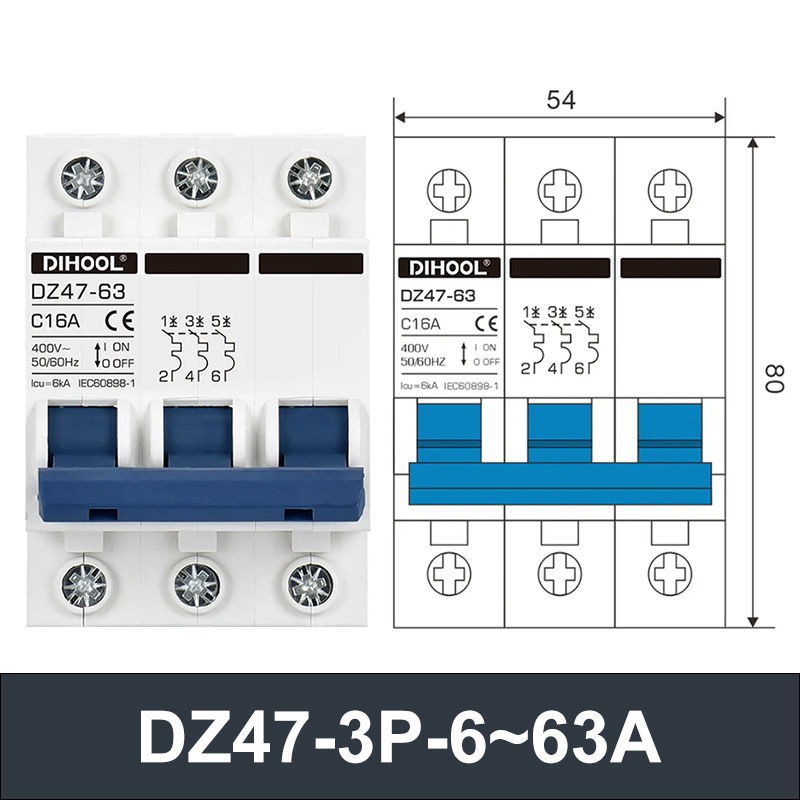

Outline Dimension Drawing
