DZ30SLE-A

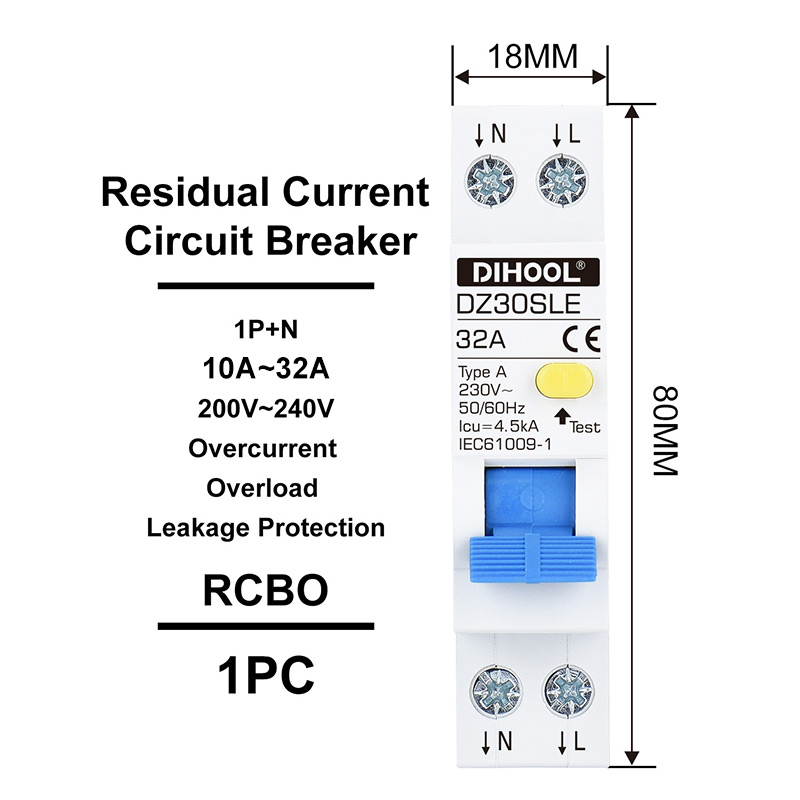

DZ30SLE-A 1P+N Residual Current Circuit Breaker

Quantity:

AC Breaker & Box
Technical Data
Download

Product Parameters

ModelDZ30SLE
Poles1P+N
Maximum Current40A
Rated Voltage UeAC230V or AC400V
Insulation Volage Ui500V
Rated Impulse Withstand Voltage (1.2/50) Uimp2kV
Rated Breaking Capacity (Ics)4.5kA
Rated Residual Operating Current I△n (mA)15mA, 30mA, 100mA, 300mA
Rated Frequency50/60Hz

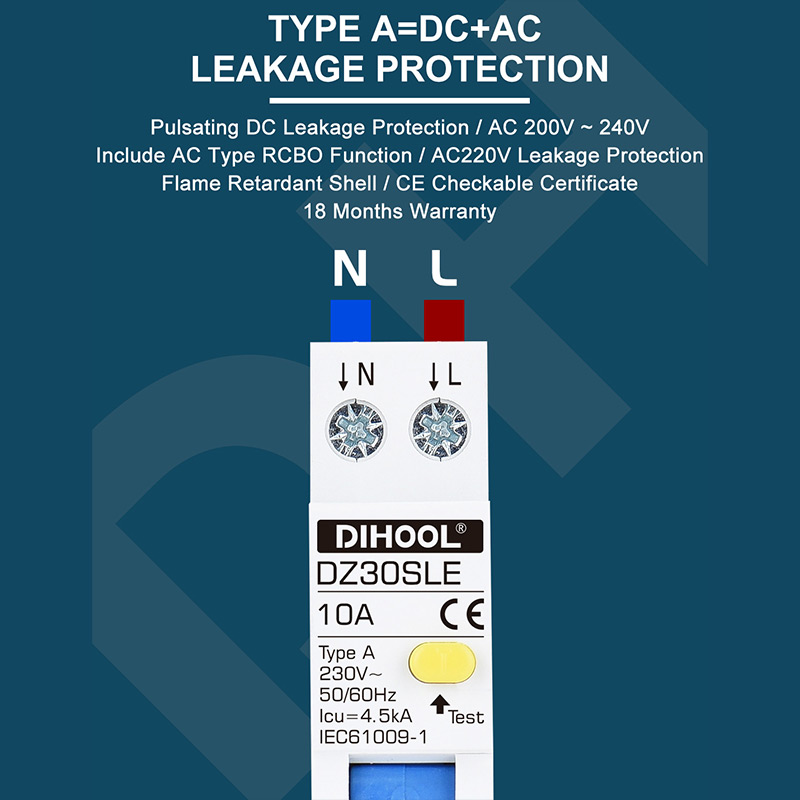

Leakage TrippingElectronic Type (Type A)
Dielectric Test Voltage At And Ind. Freq. For 1min1kV
Protection ClassIP20
Current Tripping CurveC-Curve (5-10In)
Electrical Life4000
Mechanical Life20000
Ambient Temperature-5°C~+40°C
Terminal Connection TypePhillips Screws
Adapter Cable1-10mm² 7AWG
Tightening Torque2.0N.M
StandardsIEC61009-1

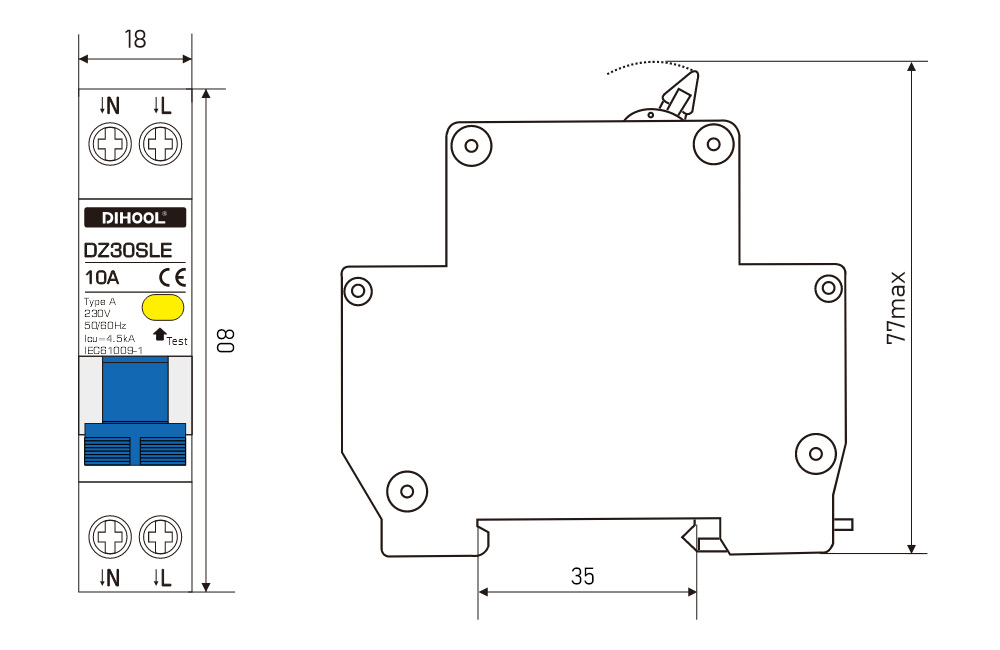

Outline Dimension Drawing
