AGP-3S Circuit Breaker With Box

Current:
  • 10A
  • 15A
  • 20A
  • 25A
  • 30A
  • 40A
  • 60A
Quantity:

Application

- mainly used in solar power generation systems, can also be used as waterproof switches for outdoor warehouses, and can also be used as plug and play circuit testing.


DC Breaker & Box
Technical Data
Download

Product Description

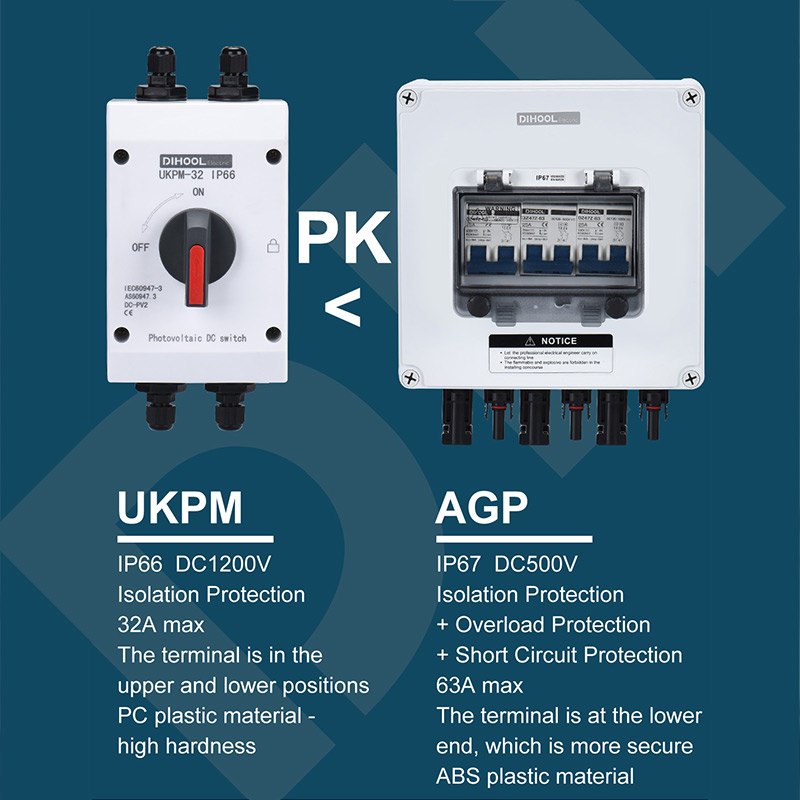

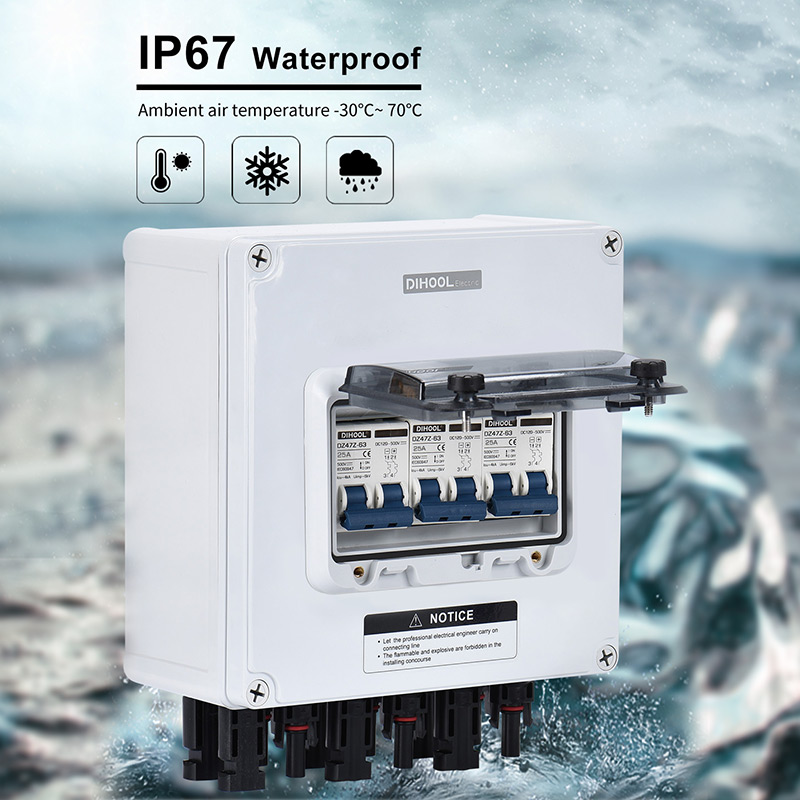

AGP DC Disconnect Switch are mainly used in solar power generation systems, can also be used as waterproof switches for outdoor warehouses, and can also be used as plug and play circuit testing. The waterproof performance of the product reaches IP67. The current of the internal circuit breaker is 10~60 Amps. The switch of the circuit breaker is equipped with a magnet, and the arc extinguishing is less than 8 milliseconds, making it safer. The Disconnect Switch is waterproof, dustproof and impact proof.

TECHNICAL PARAMETERS

AGP-String 1 Junction BoxAGP-String 2 Junction Box
ModelAGP-1SModelAGP-2S
DC Channel1DC Channel2
Channel Max Current16A32A63AChannel Max Current16A32A63A

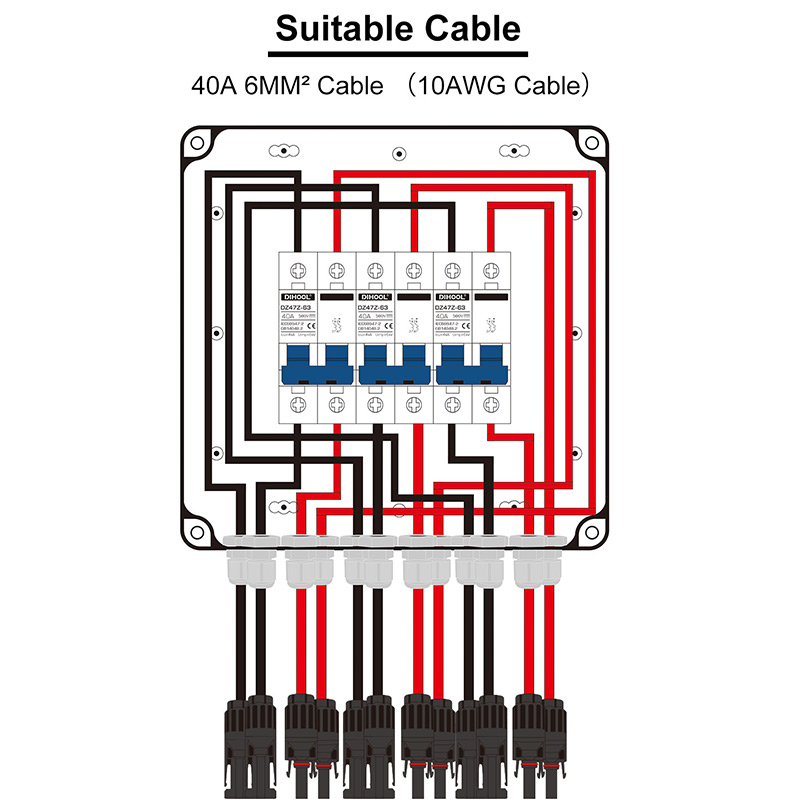

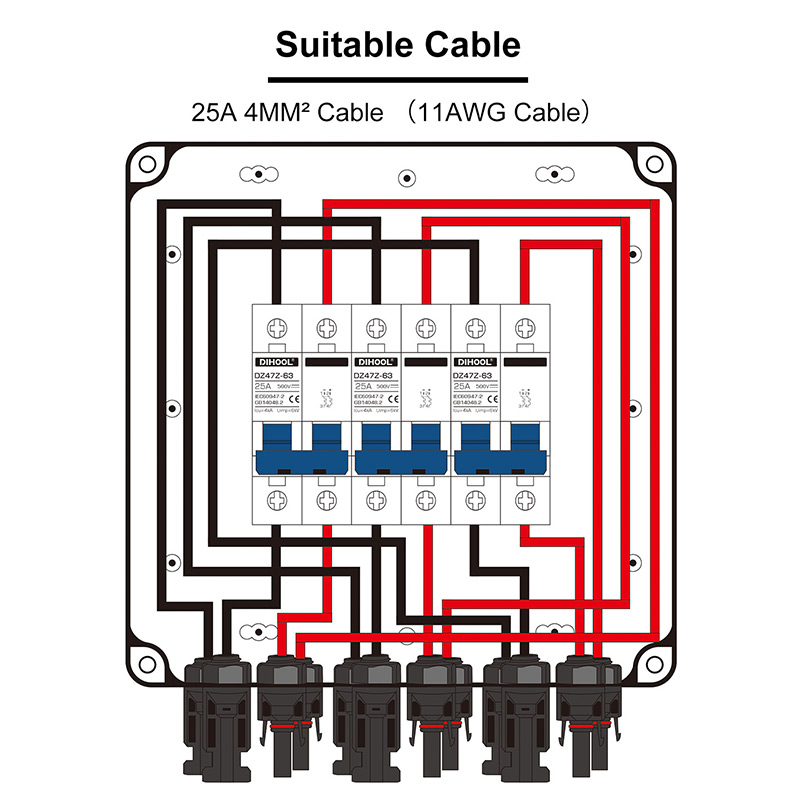

Cable2.5mm²4mm²10mm²Cable2.5mm²4mm²10mm²
VoltageDC500V / 1000VVoltageDC500V / 1000V
Protection ClassIP67Protection ClassIP67
Temperature Range-30℃~+60℃Temperature Range-30℃~+60℃
Opening Hole Size107MM*157MMOpening Hole Size157MM*157MM

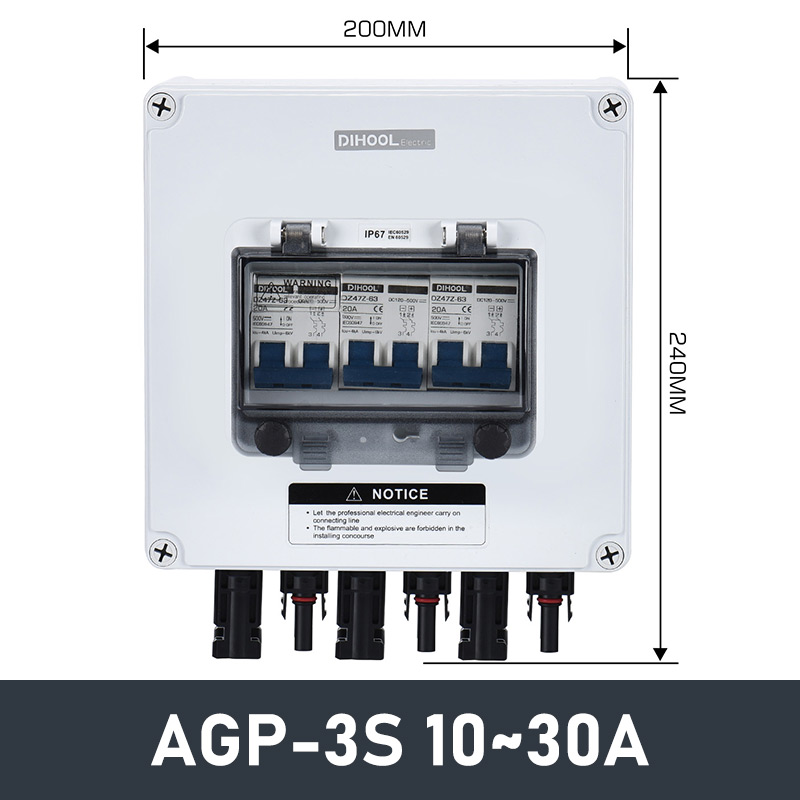

Box Size215MM*125MM*105MMBox Size215MM*175MM*130MM
Package Size230MM*130MM*110MMPackage Size220MM*180MM*140MM

AGP-String 3 Junction BoxAGP-String 4 Junction Box
ModelAGP-3SModelAGP-4S
DC Channel3DC Channel4
Channel Max Current16A32A63AChannel Max Current16A32A63A
Cable2.5mm²4mm²10mm²Cable2.5mm²4mm²10mm²
VoltageDC500V / 1000VVoltageDC500V / 1000V
Protection ClassIP67Protection ClassIP67
Temperature Range-30℃~+60℃Temperature Range-30℃~+60℃
Opening Hole Size182MM*182MMOpening Hole Size232MM*232MM
Box Size240MM*200MM*130MMBox Size190MM*250MM*130MM
Package Size250MM*210MM*140MMPackage Size200MM*260MM*140MM

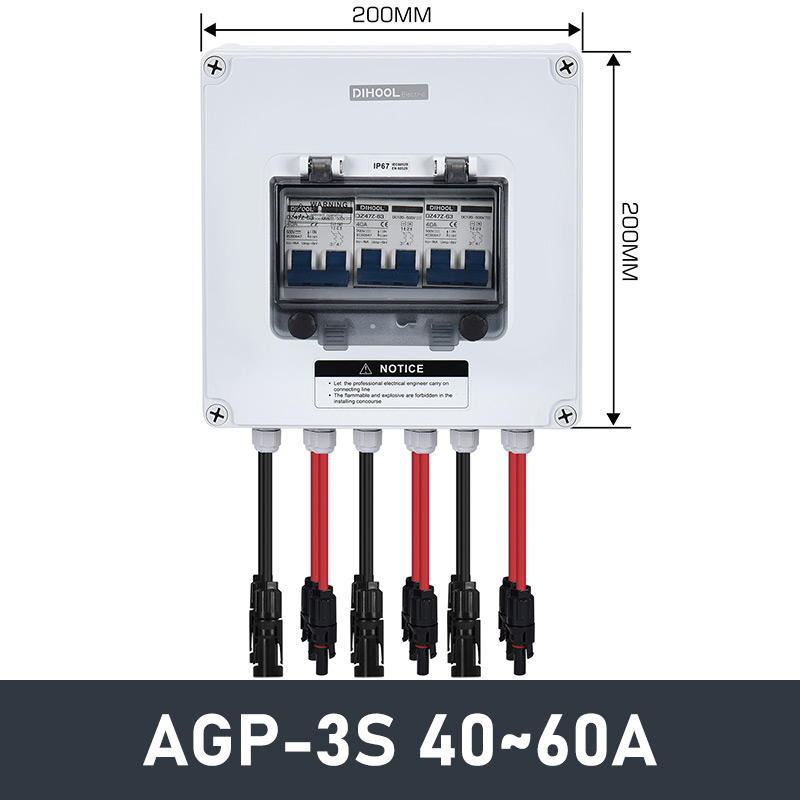

Outline Dimension Drawing
