INTRODUCTION

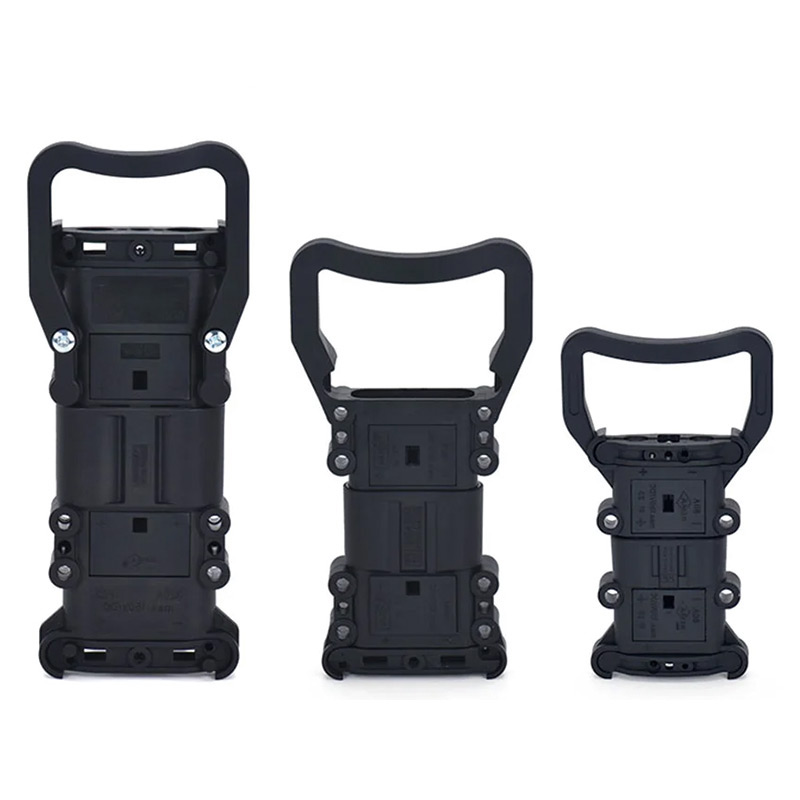

Current Rating (Amperes): 80A/160A/320A
Voltage Ratings (Volts): 150V
Terminal material: Silver-plated copper
Insulation material: PP
Protection level: IP23
Flame retardant rating: UL94V-0
Interface type: AC/DC
Operating Temperature: -20°C-105°C

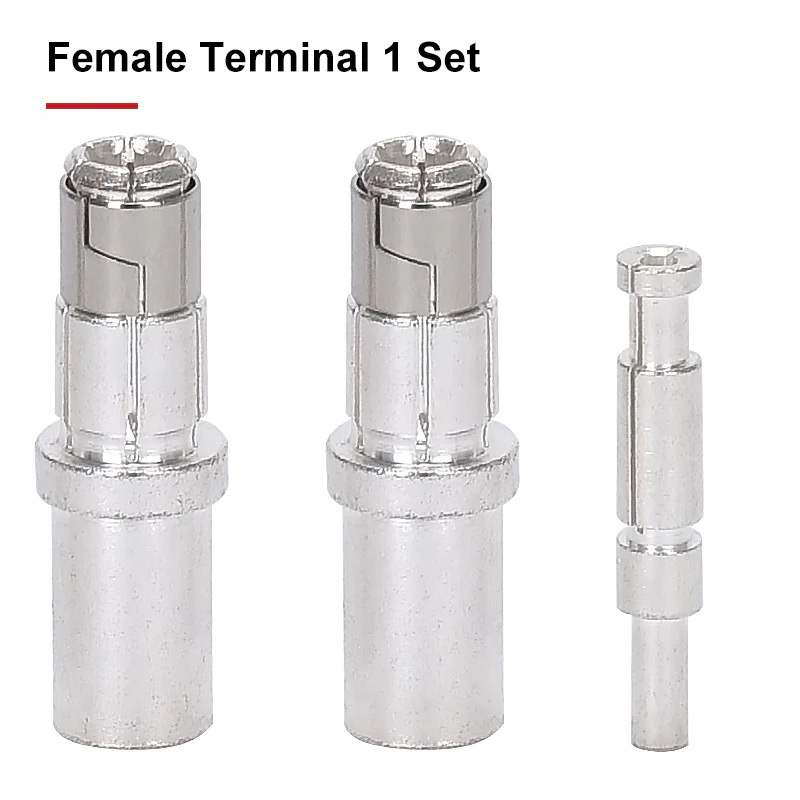

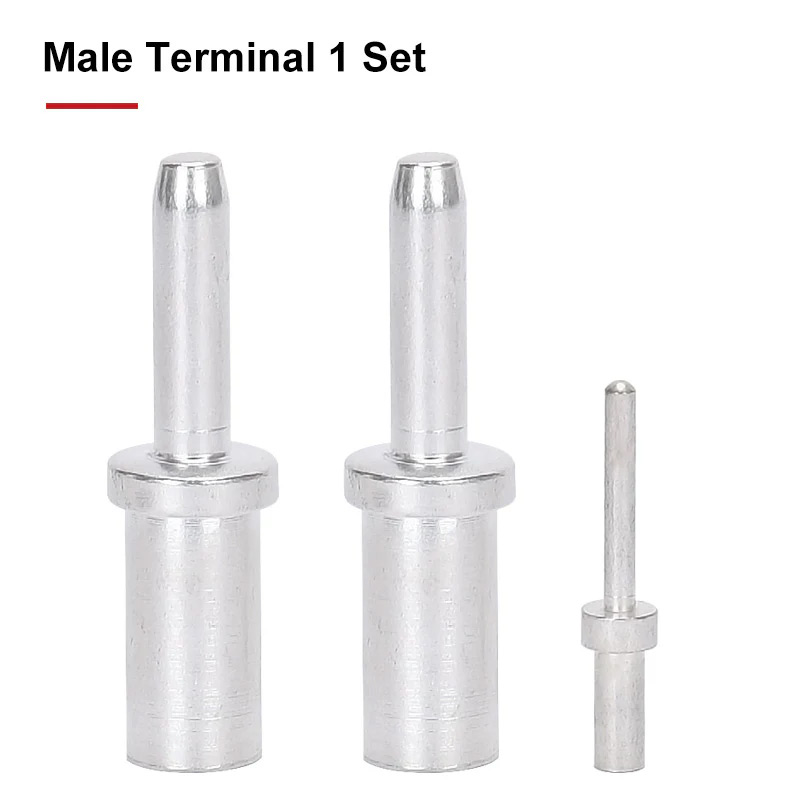

Accessories: One plug comes with two main terminals and one signal terminal

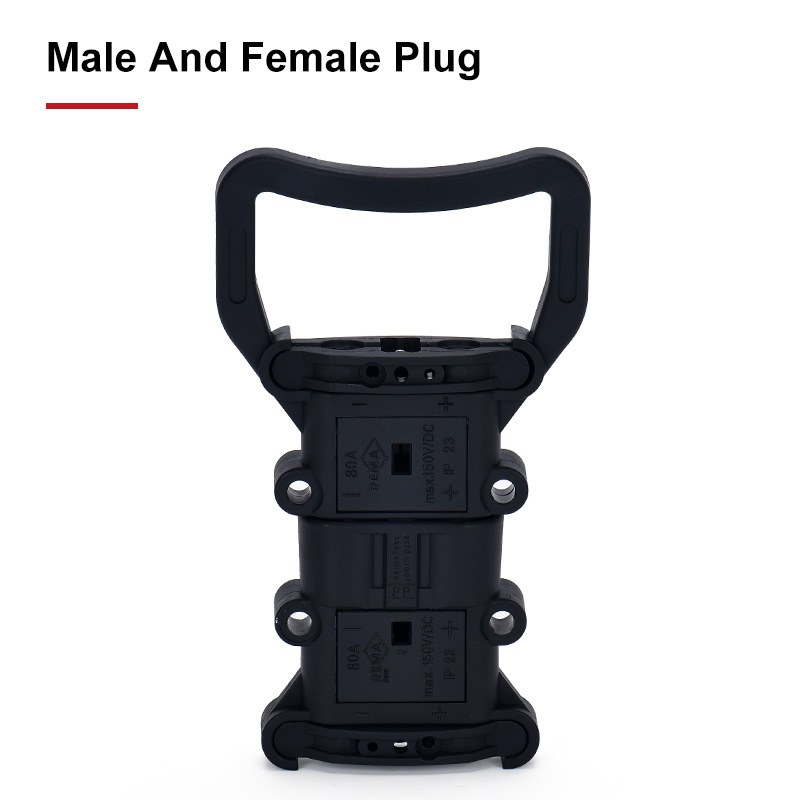

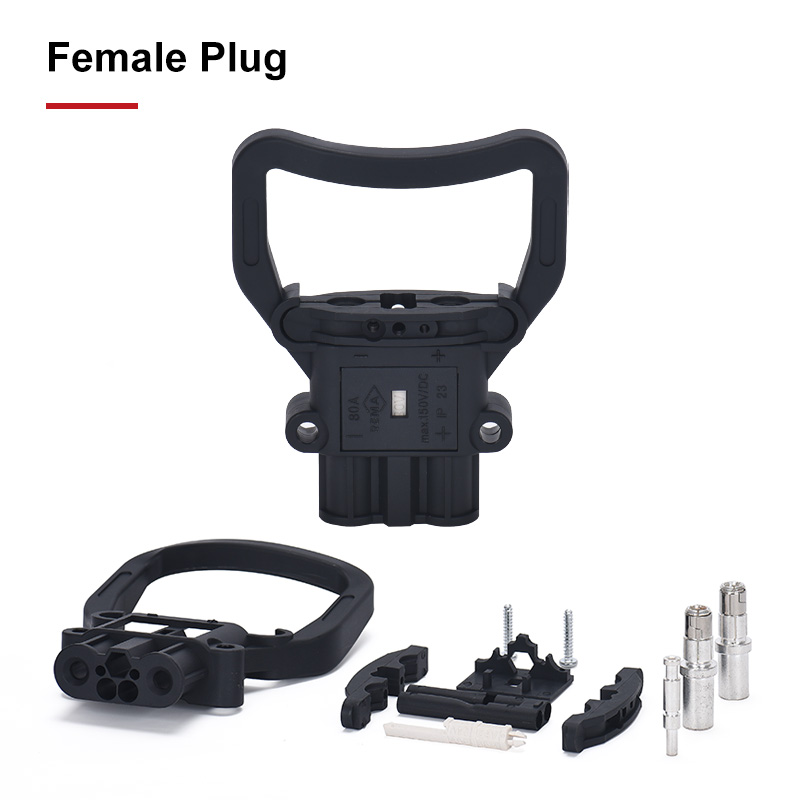

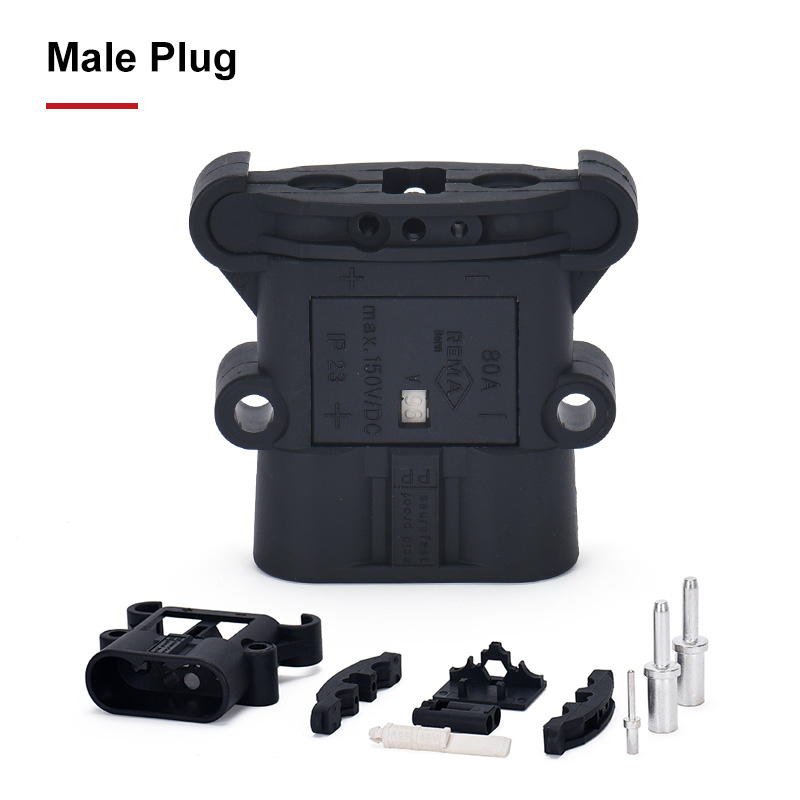

Features: The connector is separated from male and female, and the female connector has a handle.
Use range: Be used for electric vehicles, electric forklifts, stackers, electric sightseeing cars, UPS and other high-current circuit connections.

TECHNICAL PARAMETERS
