✔ Ordering Notes:
● When choosing the "Red and Black", We will deliver you two cables of your select length (1pcs Red +1pcs Black).
● Repeated purchase of the same kind of cable, the length is added up, no cutting.

INTRODUCTION

Specifications: 1.5/2.5/4/6/10/16/25mm²
Rated voltage: AC 0.6/1KV,DC1.5KV

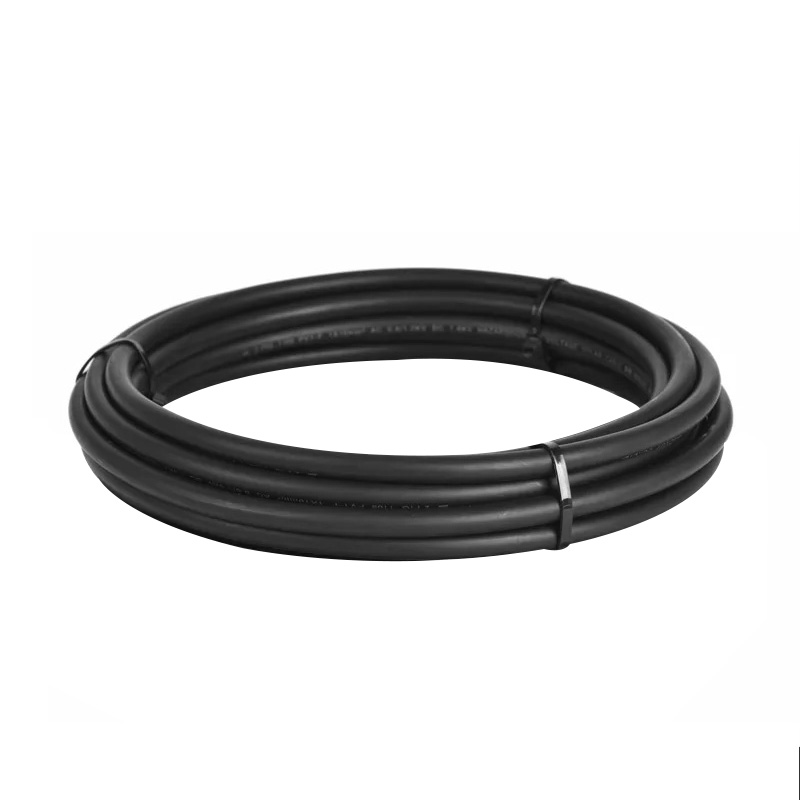

Color: Red / Black

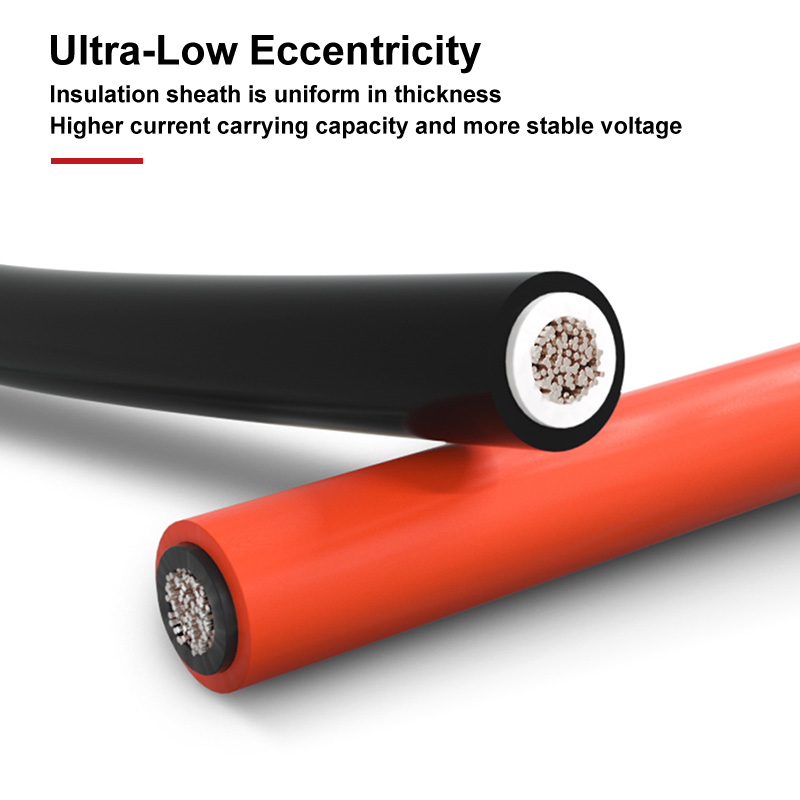

Feature: Double insulation cover, TUV approved

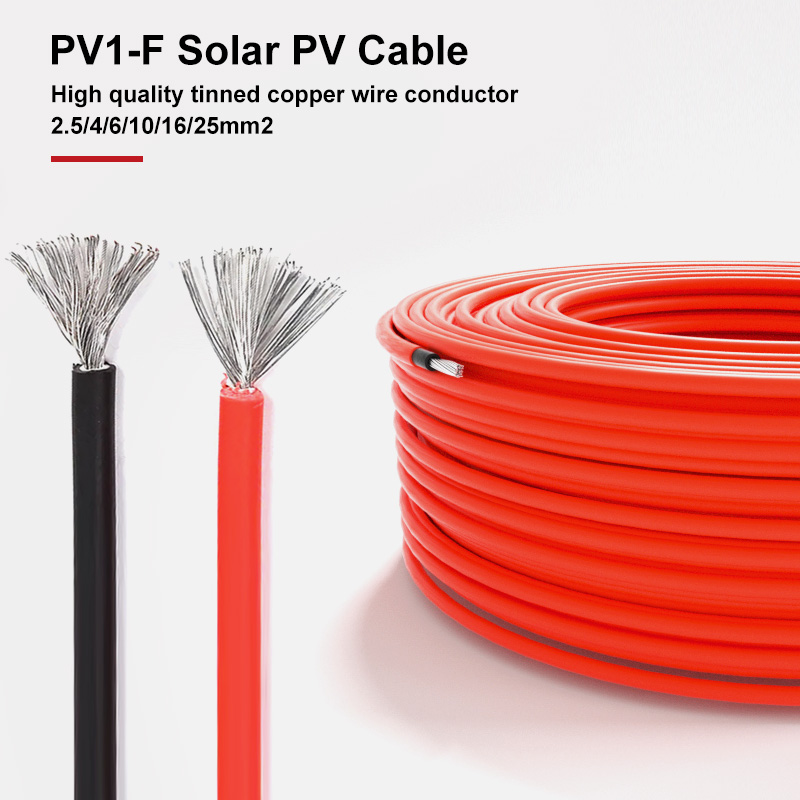

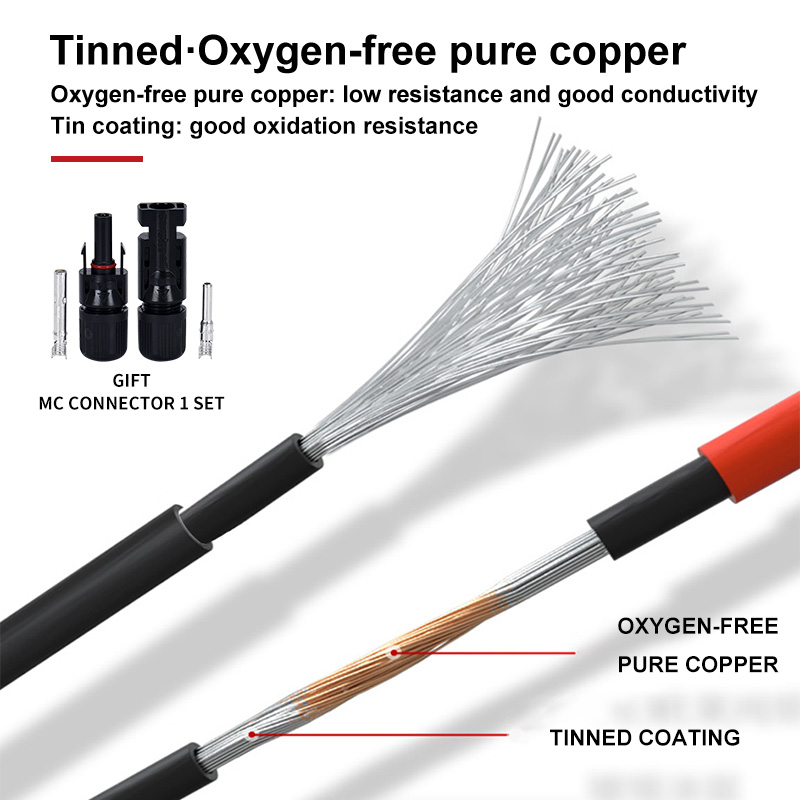

Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath: Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation: Halogen-free low-smoke polyolefin(XLPO)
Service life: 25 years (-40 ℃ - 90 ℃)
Application: Indoor and outdoor solar installations

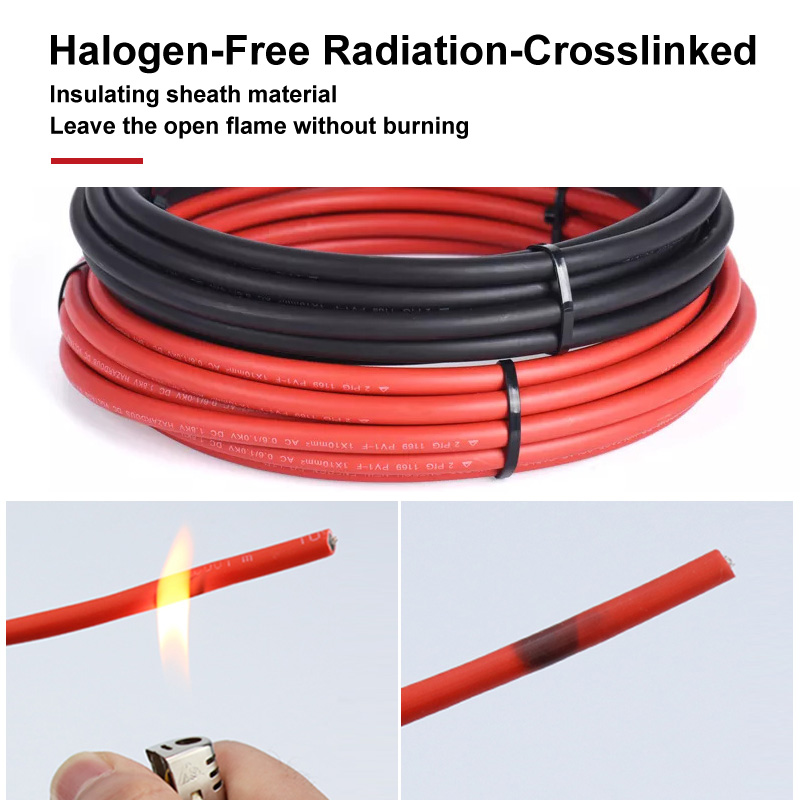

Fire rating: UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction

TECHNICAL PARAMETERS

Conductor: Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172
Insulation: Thermosetting environmental protection insulation material, generally black
Sheath: Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material
