DHADT

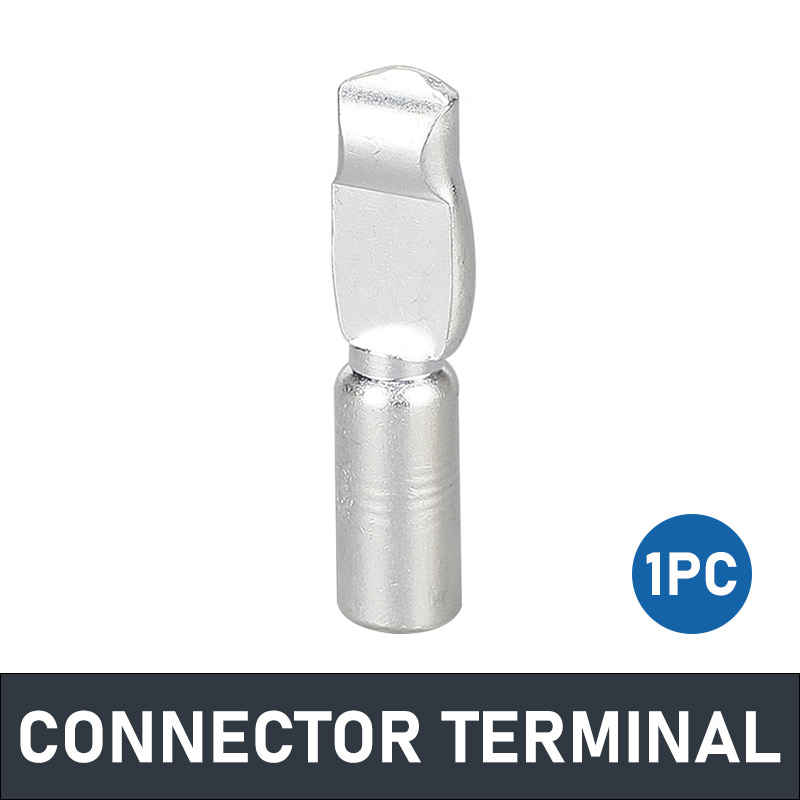

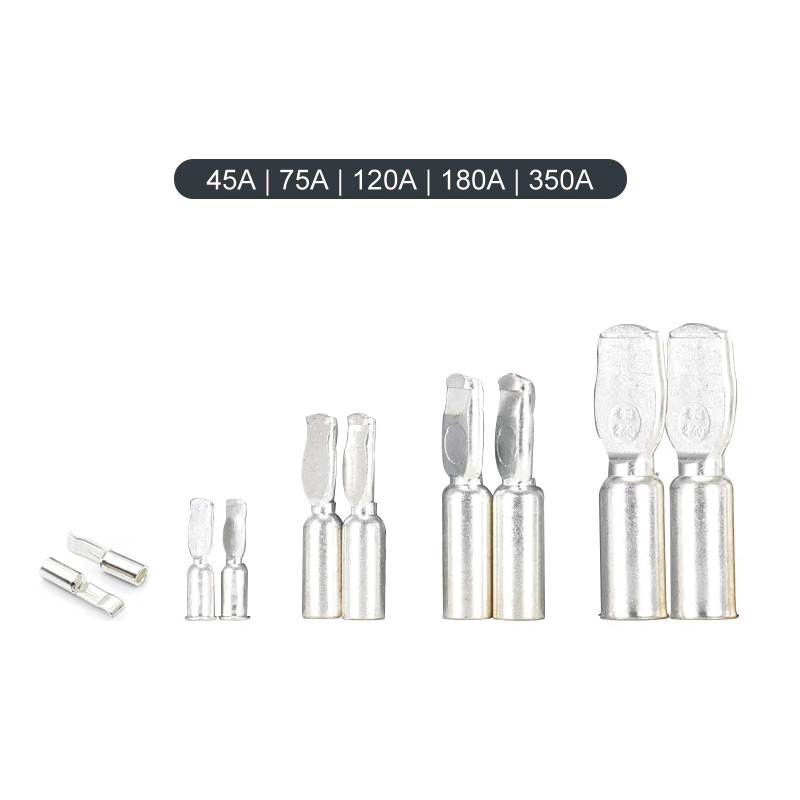

DHADT Power Connector Terminal 45A | 75A | 120A | 180A | 350A

Quantity:

Cable Accessories
Technical Data
Download

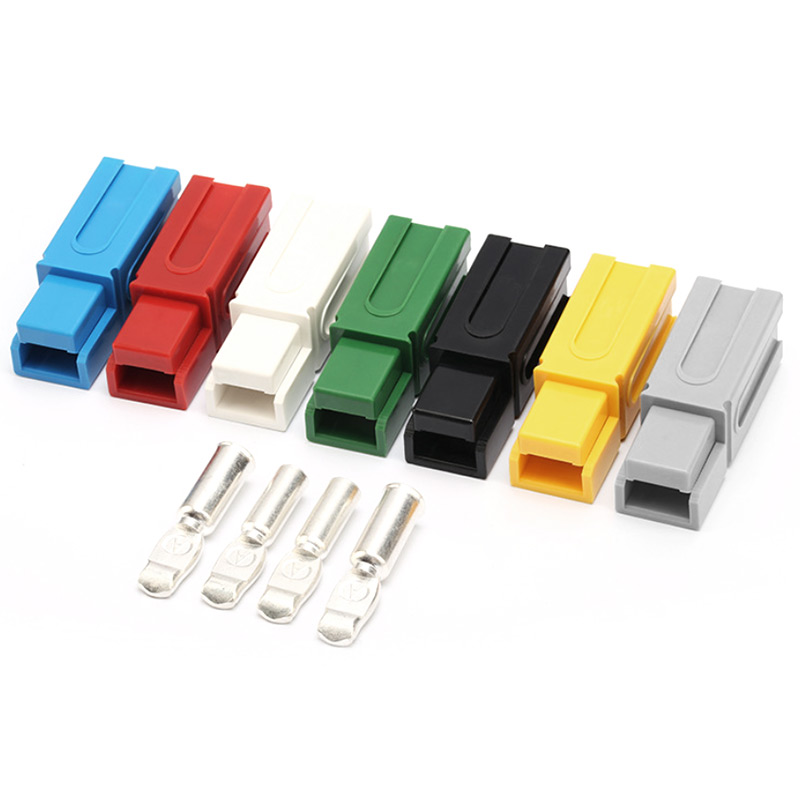

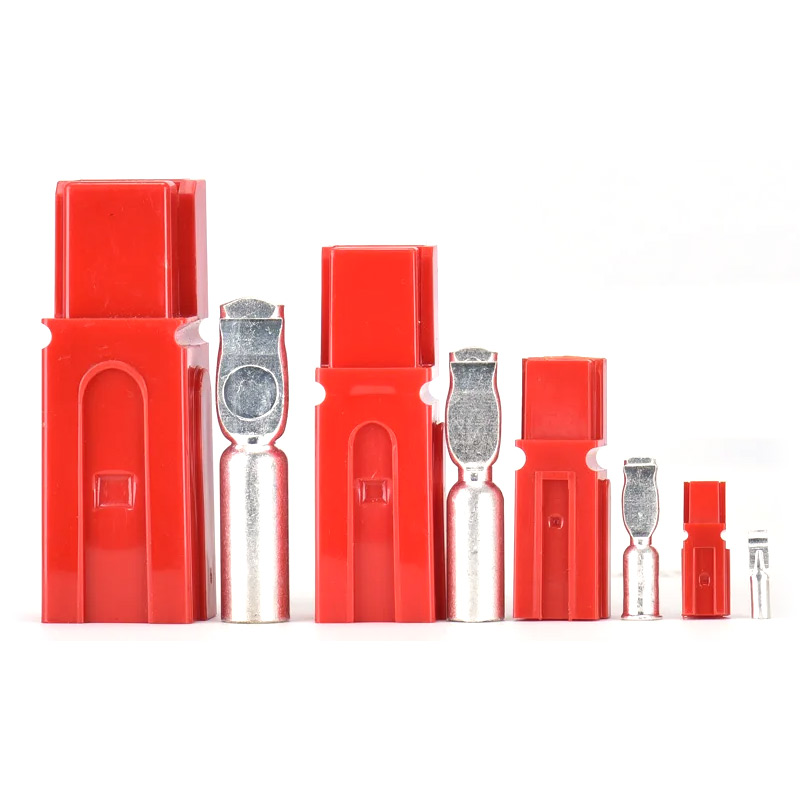

1-Pole Power Connector

ModelRated Current (A)Terminal inner Diameter (mm)Match Wire Section (mm²)Match Wire Gaug (AWG)
DH4028452.82.5(Max)20~13
DH7035753.56 (Max)12/10
DH70474.710 (Max)8
DH70565.616 (Max)6
DH11561205.616 (Max)6
DH11878.735 (Max)2
DH13891808.935 (Max)2
DH131111.250 (Max)1/0

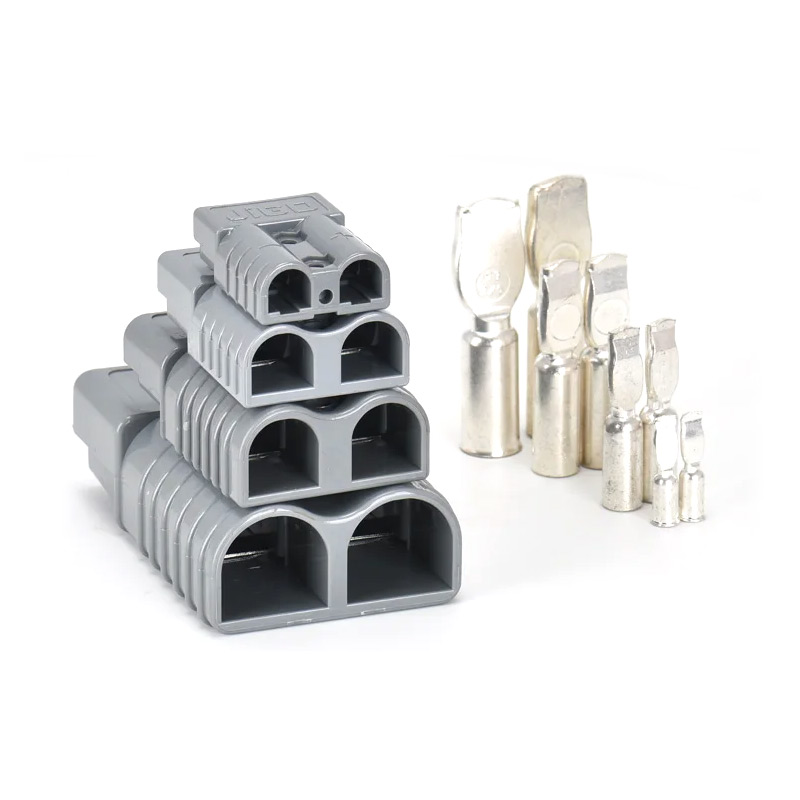

2-Pole Power Connector

ModelRated Current (A)Terminal Inner Diameter(mm)Match Wire Section(mm²)Match Wire Gauge(AWG)
DH7035503.56 (Max)12/10
DH70474.710 (Max)8
DH70565.616 (Max)6
DH11561205.616 (Max)6
DH11878.735 (Max)2
DH13761757.625 (Max)4
DH13898.935 (Max)2
DH131111.250 (Max)0
DH271135011.250 (Max)0
DH271212.670 (Max)00
