DHAD2

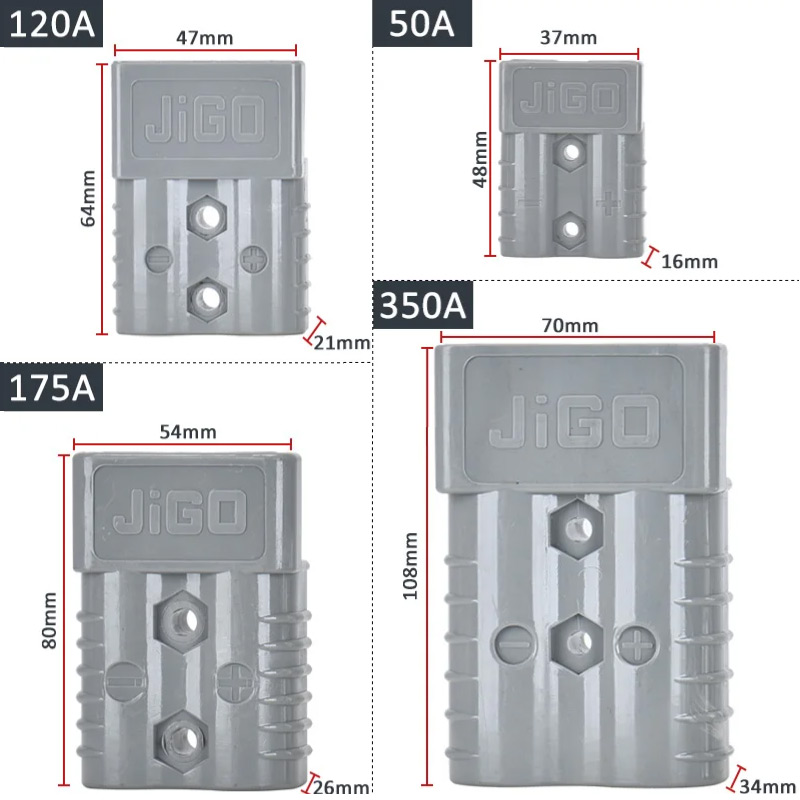

DHAD2 2-Pole Power Connector 50A/120A/175A/350A

Model:
  • 50A DH7035 S
  • 50A DH7047 M
  • 50A DH7056 L
  • 120A DH1156 M
  • 120A DH1187 L
  • 175A DH1389 M
  • 175A DH1311 L
  • 350A DH2711 M
  • 350A DH2712 L

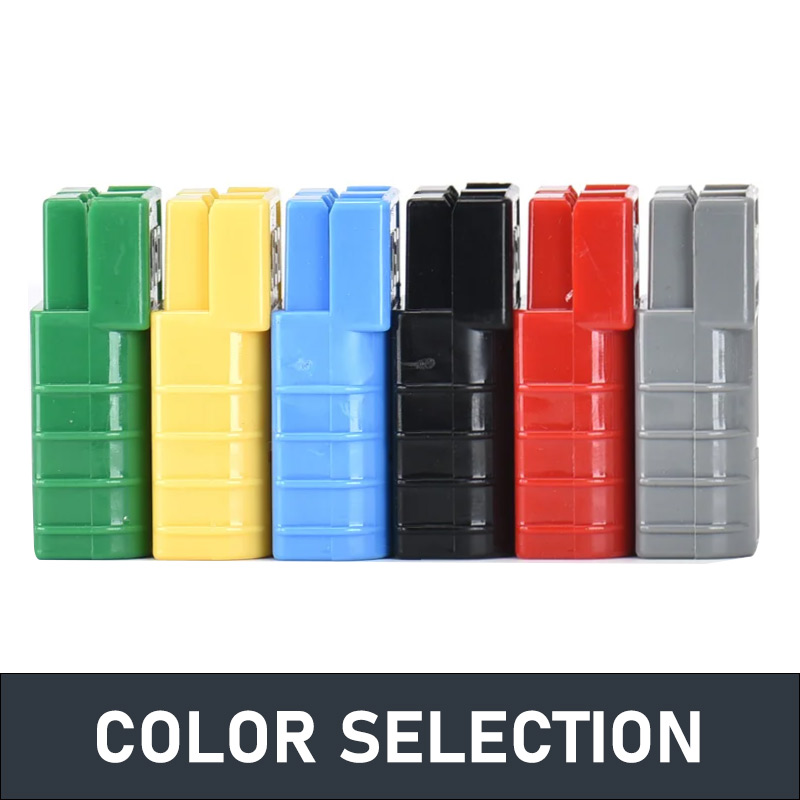

Color:
  • Red
  • Black
  • Gray
  • Blue
  • Green
  • Yellow
Quantity:

Connector
Technical Data
Download



INTRODUCTION

Model : 50A/120A/175A/350A
Color : Black/Red/Green/Yellow/Blue/Gray
Interface type: DC
Rated voltage: 600V
Working Temperature:-25℃-105 ℃
Shell material: PC UL94V0
Terminals material: Silver-plated Copper
Shrapnel material: 65Mn Steel

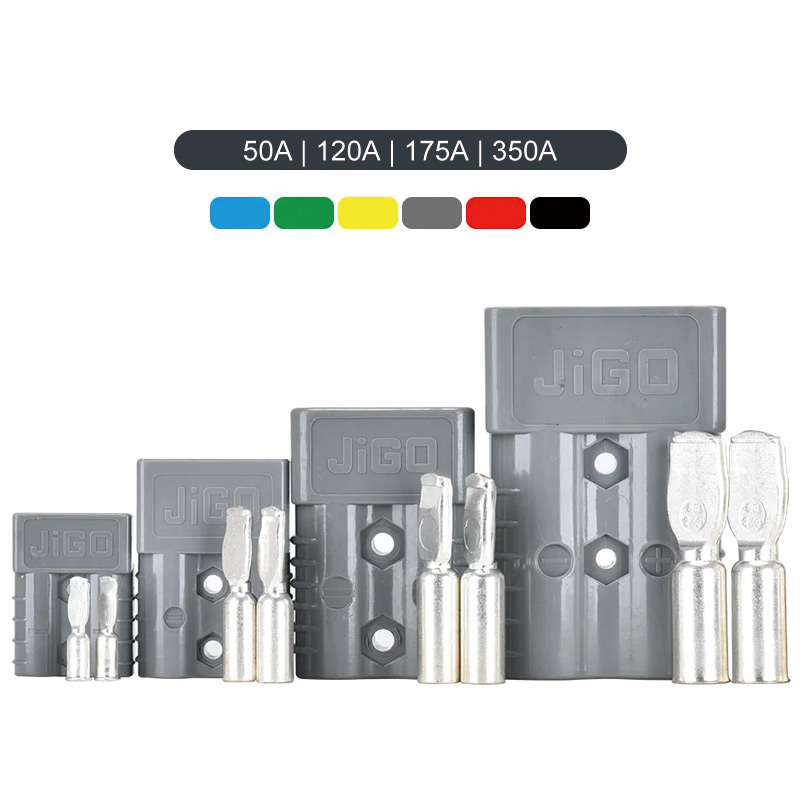

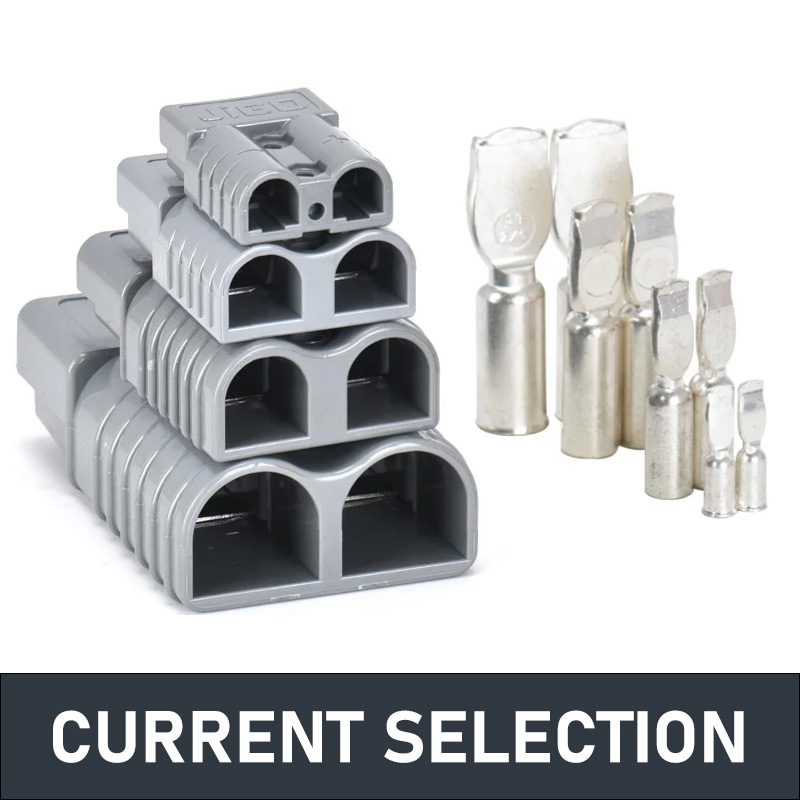

Package: 1 piece connector contains 1 plastic shell and 2 silver-plated copper terminals
Note: This connector does not distinguish between male and female. Connectors of the same amperage can be connected to each other.

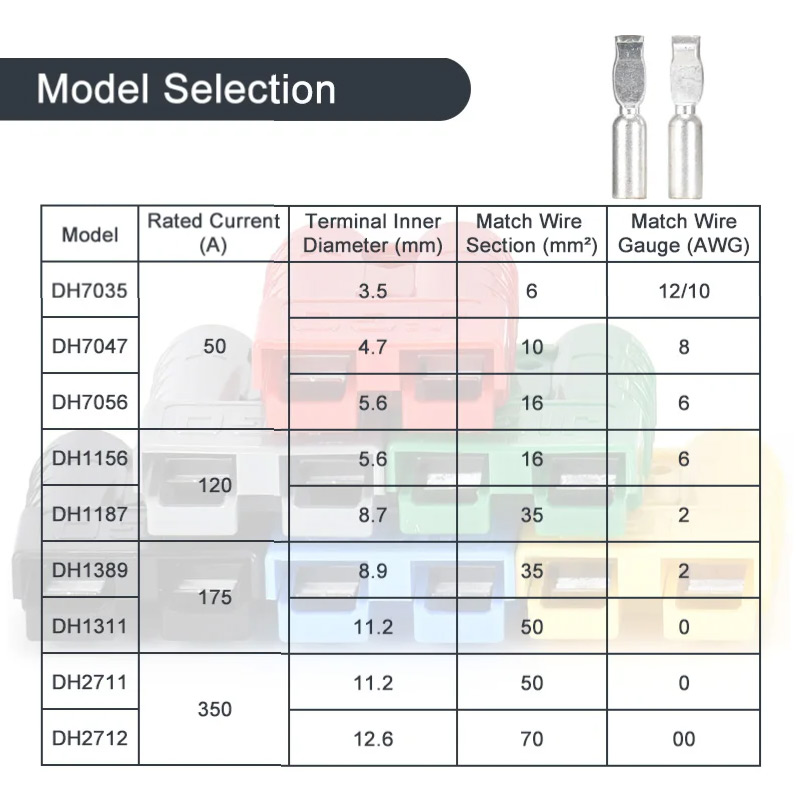

TECHNICAL PARAMETERS

ModelRated Current (A)Terminal Inner Diameter(mm)Match Wire Section(mm²)Match Wire Gauge(AWG)
DH7035503.56 (Max)12/10
DH70474.710 (Max)8
DH70565.616 (Max)6
DH11561205.616 (Max)6
DH11878.735 (Max)2
DH13761757.625 (Max)4
DH13898.935 (Max)2
DH131111.250 (Max)0
DH271135011.250 (Max)0
DH271212.670 (Max)00
