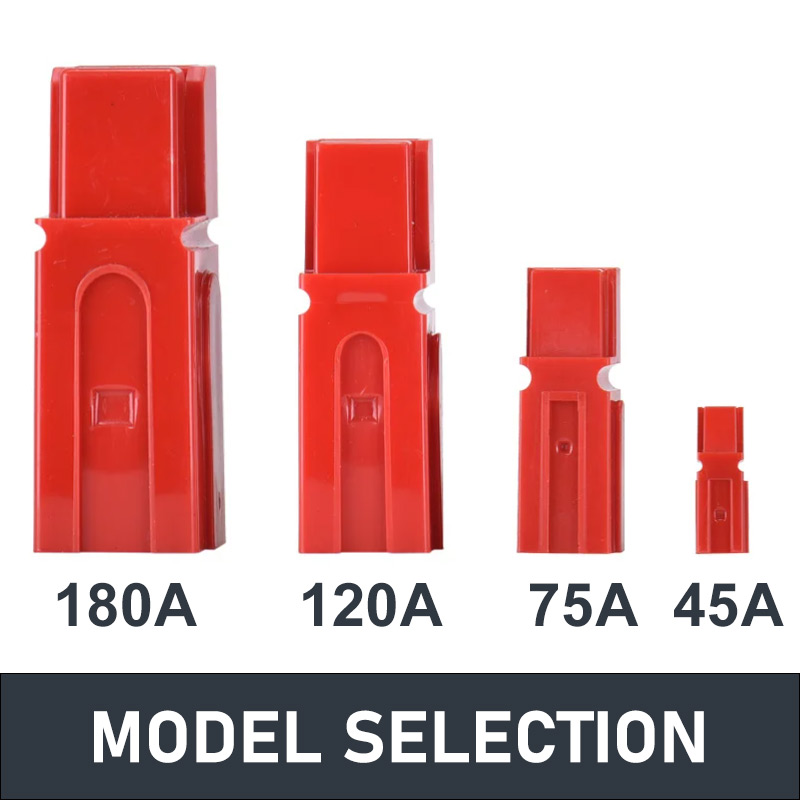

Rated current: 45A/75A/120A/180A

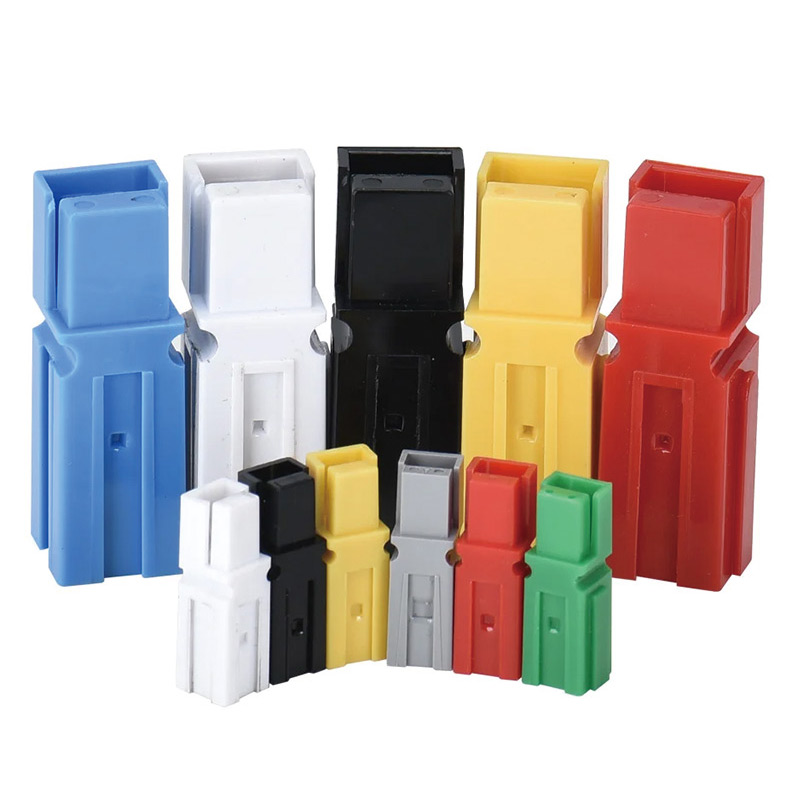

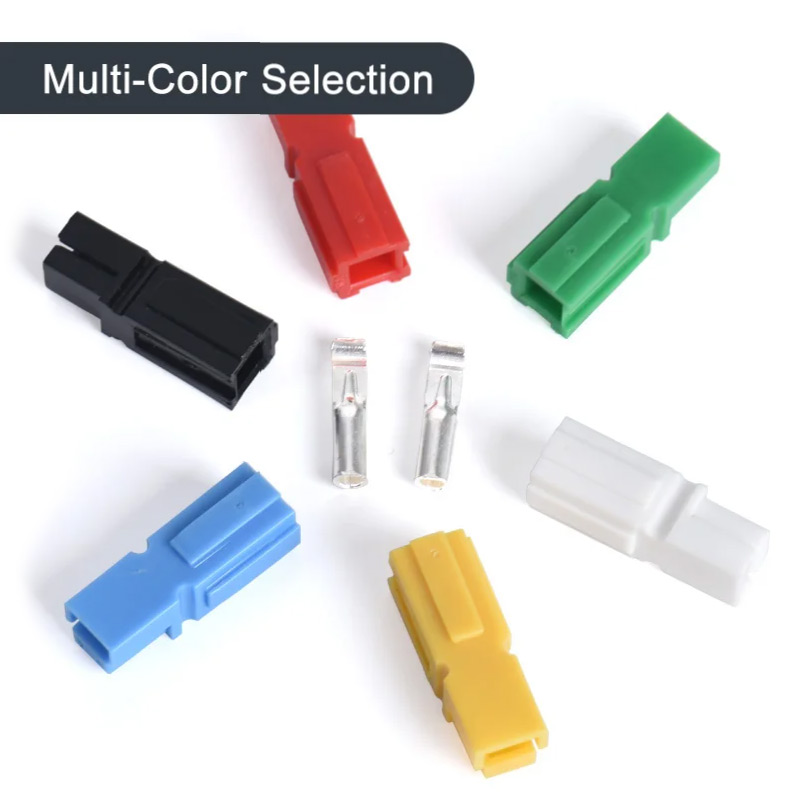

Color: White/Black/Red/Green/Yellow/Blue/Grey
Wire Diameter : Various American Standard Wire Diameters

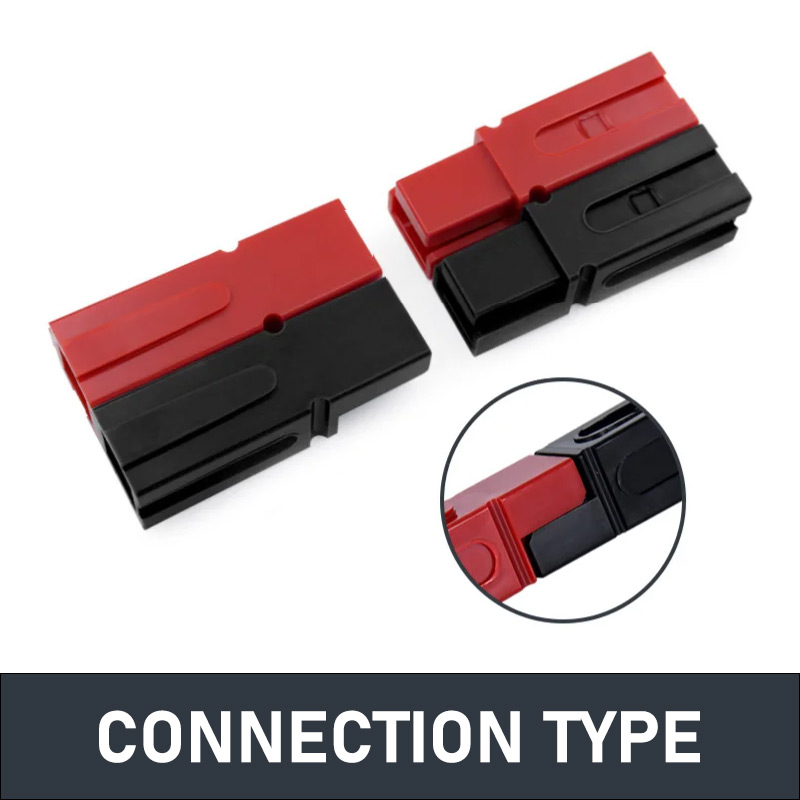

Interface type: AC or DC
Rated voltage: 600V
Working Temperature:-25℃-105 ℃
Shell material: PC UL94V0
Terminals material: Silver-plated Copper
Shrapnel material: 65Mn Steel
Package: 1 piece connector contains 1 plastic shell and 1 silver-plated copper terminals

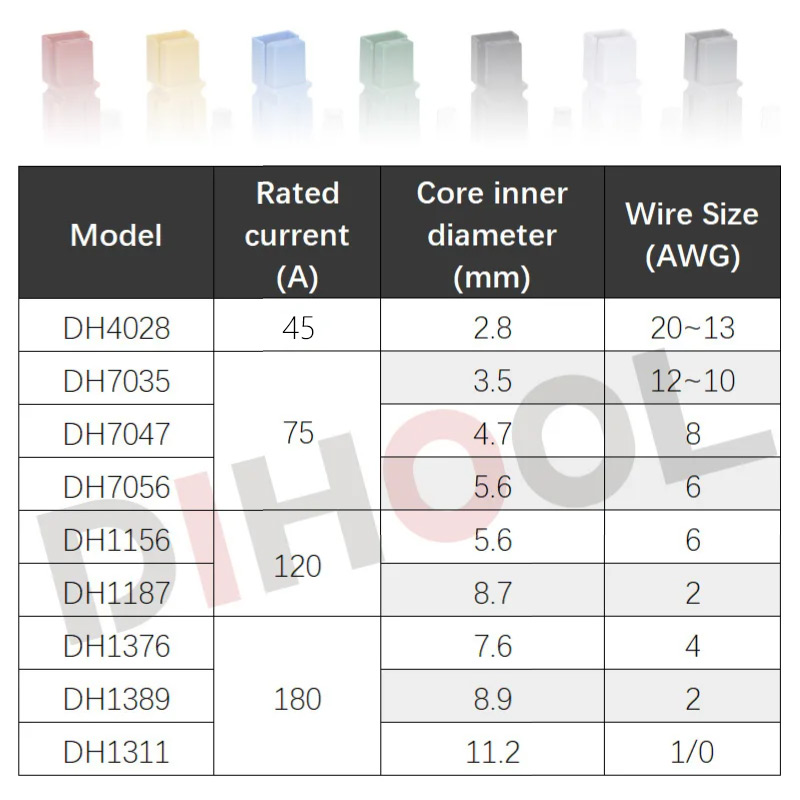

| Model | Rated Current (A) | Terminal Inner Diameter (mm) | Match Wire Section (mm²) | Match Wire Gaug (AWG) |
| DH4028 | 45 | 2.8 | 2.5(Max) | 20~13 |
| DH7035 | 75 | 3.5 | 6 (Max) | 12/10 |
| DH7047 | 4.7 | 10 (Max) | 8 | |
| DH7056 | 5.6 | 16 (Max) | 6 | |
| DH1156 | 120 | 5.6 | 16 (Max) | 6 |
| DH1187 | 8.7 | 35 (Max) | 2 | |
| DH1389 | 180 | 8.9 | 35 (Max) | 2 |
| DH1311 | 11.2 | 50 (Max) | 1/0 |
