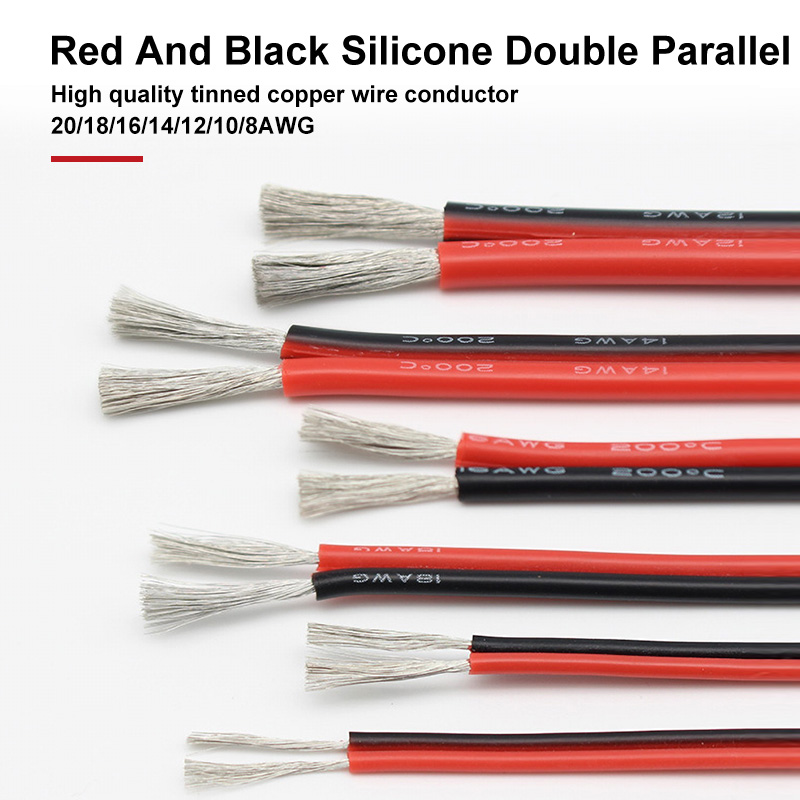

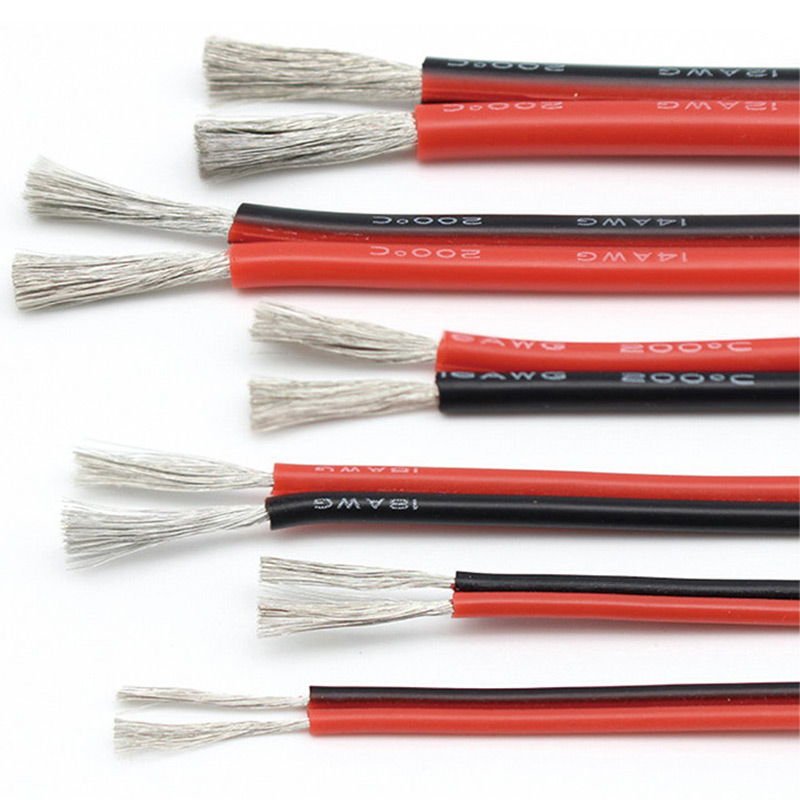

Model: 2 Pins Silicone Cable
Conductor Material: Tinned Copper Wire
Insulation Material: Silicone
Conductor Section: 20/18/16/14/12/10/8AWG
Temperature Range: -60℃~200℃
Rated Voltage: 600V
Color: Red and Black

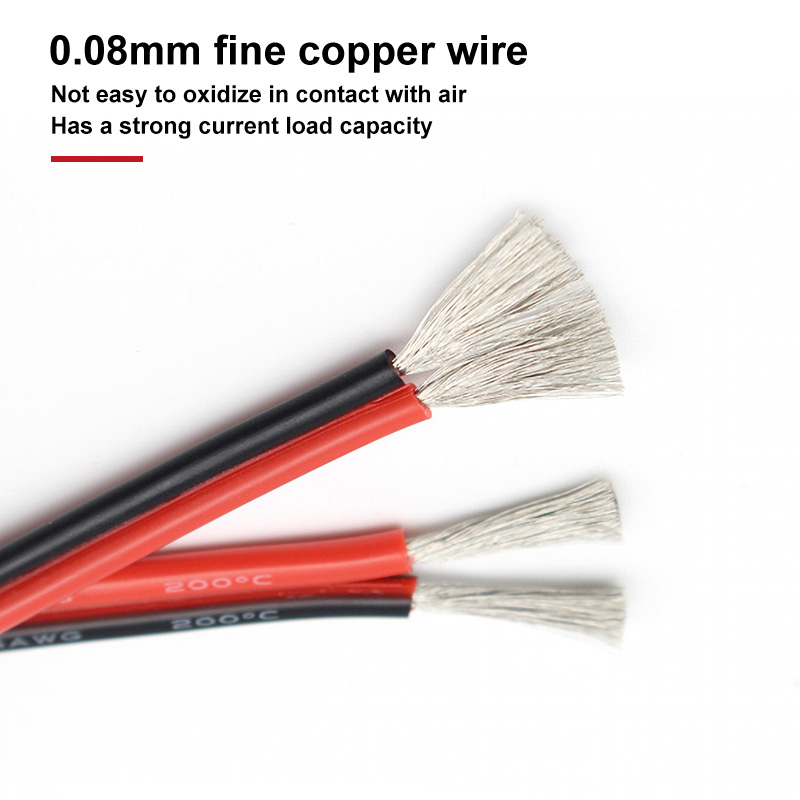

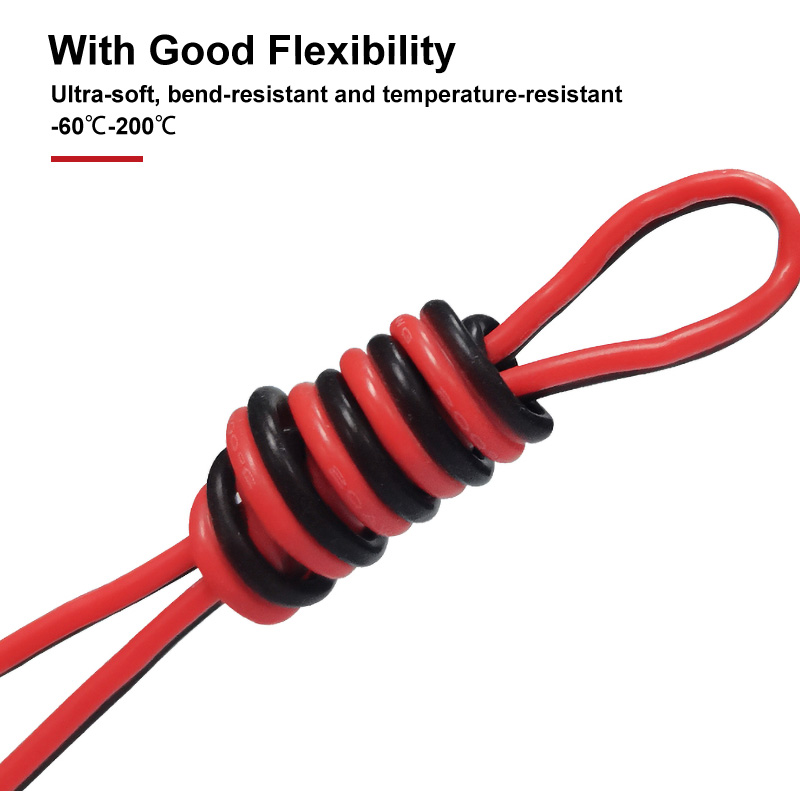

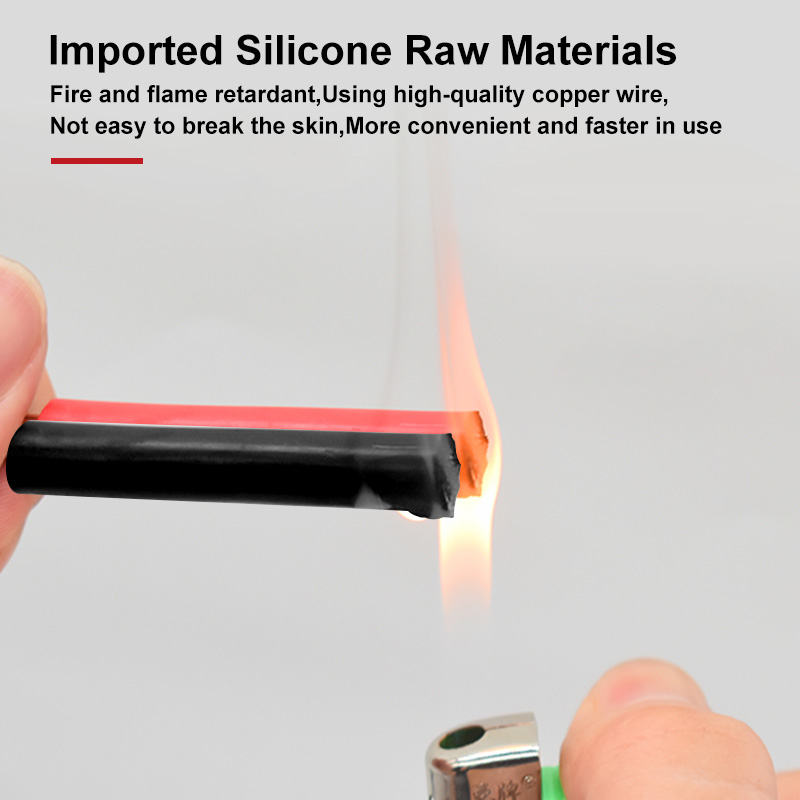

Product Features: The wire core is made of multiple strands of high-quality oxygen-free tinned copper, and the outer insulation layer is extra-soft silica gel, which is resistant to high temperature and can pass large currents. The outer skin is soft and easy to install into small model parts.
Product Uses: Electrical equipment wiring, mechanical internal connecting wires, automobile clip wires, temperature sensor wires, test instrument power wires, car cables, and so on.
| Conductor | Insulator | Electrical Character | Max Current | ||||
| Gauge Size | NO./Dia. | Cross-Sectional Area | Diameter | Thickness | Outer Diameter | Conductor Resistance | Ampere |
| AWG | mm | mm² | mm | mm | mm | Ω/km | A |
| 8 | 1650/0.08TS | 8.3 | 3.75 | 1.5 | 6.3 | 3.7 | 190 |
| 10 | 1050/0.08TS | 5.3 | 3 | 1.3 | 5.5 | 6.3 | 140 |
| 12 | 680/0.08TS | 3.4 | 2.41 | 1 | 4.5 | 9.8 | 88 |
| 14 | 400/0.08TS | 2 | 1.85 | 0.9 | 3.5 | 15.6 | 55 |
| 16 | 252/0.08TS | 1.27 | 1.47 | 0.75 | 3 | 24.4 | 35 |
| 18 | 150/0.08TS | 0.75 | 1.13 | 0.55 | 2.3 | 39.5 | 22 |
| 20 | 100/0.08TS | 0.5 | 0.92 | 0.45 | 1.8 | 62.5 | 13 |
If there is any error, please refer to the actual product.
