MDQ

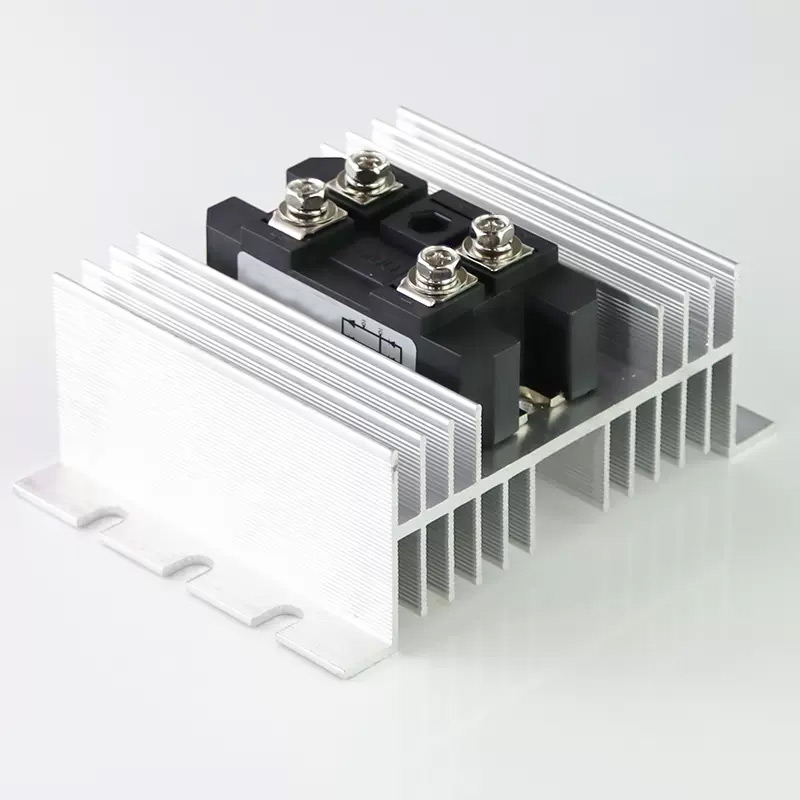

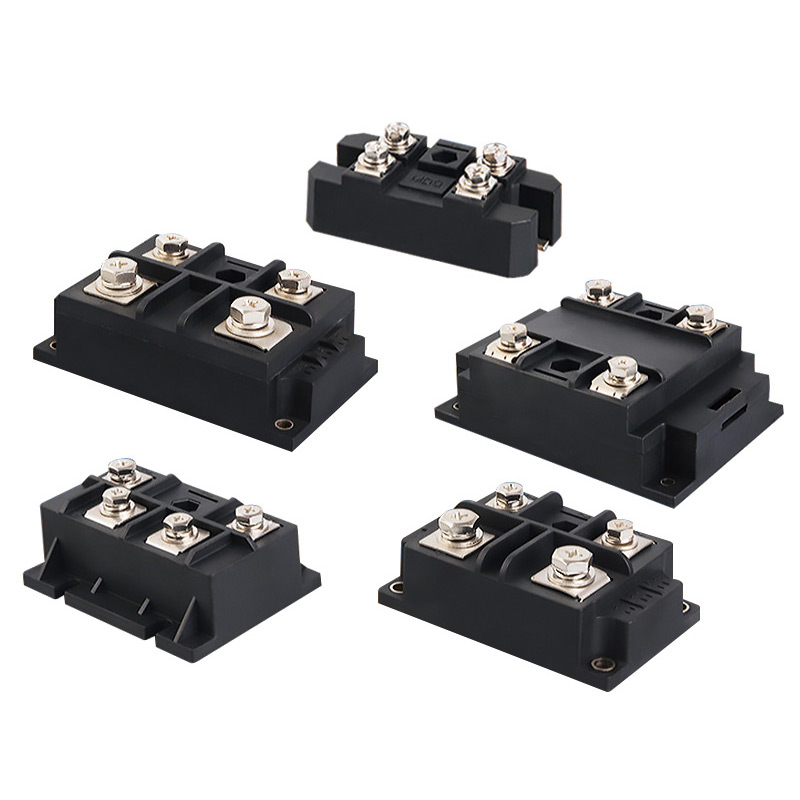

MDQ 30A-1200A Single-Phase Diode Bridge Rectifier Module With Radiator High Power AC to DC

Current:
  • 30A
  • 60A
  • 75A
  • 100A
  • 150A
  • 200A
  • 250A
  • 300A
  • 400A
  • 500A
  • 600A
  • 800A
  • 1000A
  • 1200A
Quantity:

Application

- Inverter DC power supply for equipment; AC and DC motor control; Electric Welding Machine; Various rectifier power supplies; Battery charging and discharging; Motor soft start.


AC Breaker & Box
Technical Data
Download

Product Parameters

Model NumberOutput DC CurrentEquipped With A RadiatorShape
Resistive loadInductive load
MDQ 30A27A18A125*95*50102A
MDQ 60A42A36A102A
MDQ 75A50A40A102A
MDQ 100A65A45A102A
MDQ 150A100A75A150*100*80103A
MDQ 200A130A100A103A
MDQ 250A175A125A103A
MDQ 300A190A135A150*125*135104A
MDQ 400A250A150A104A
MDQ 500A300A180A105A
MDQ 600A340A204A105A
MDQ 800A360A216A250*141*135106A
MDQ 1000A540A324A106A
MDQ 1200A580A340A106A

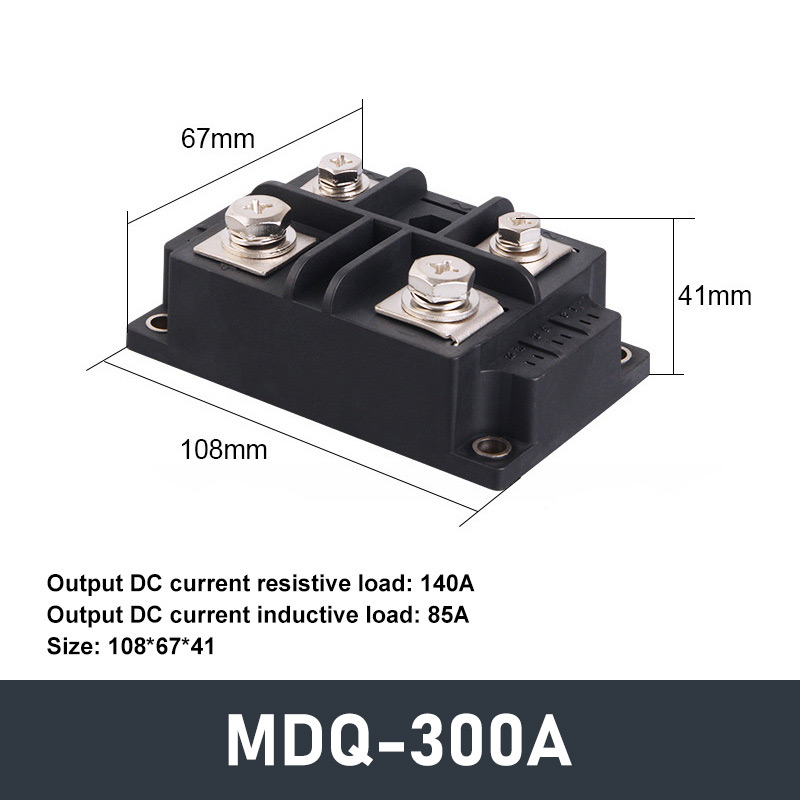

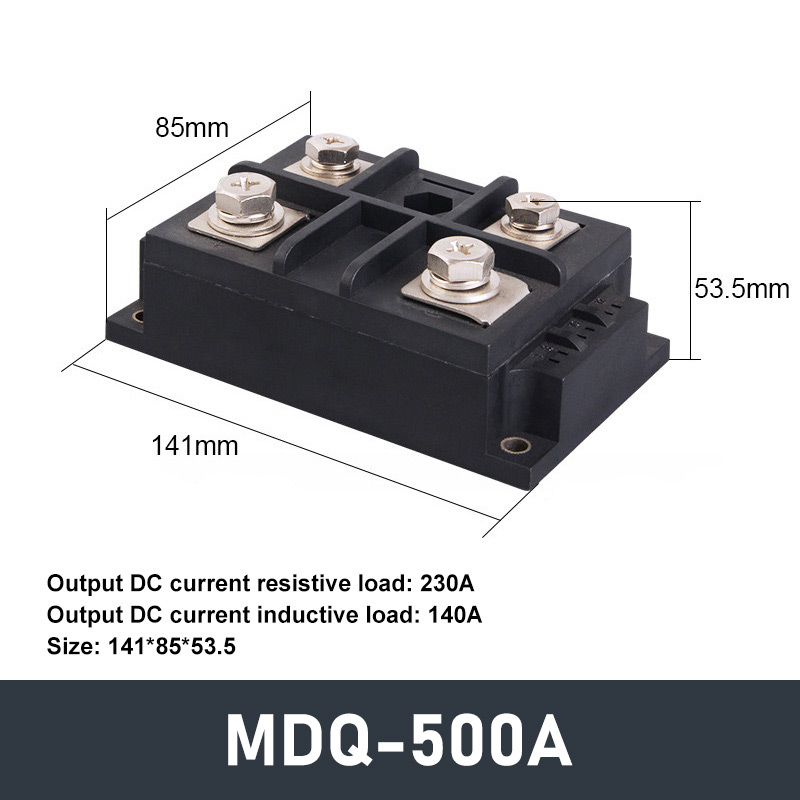

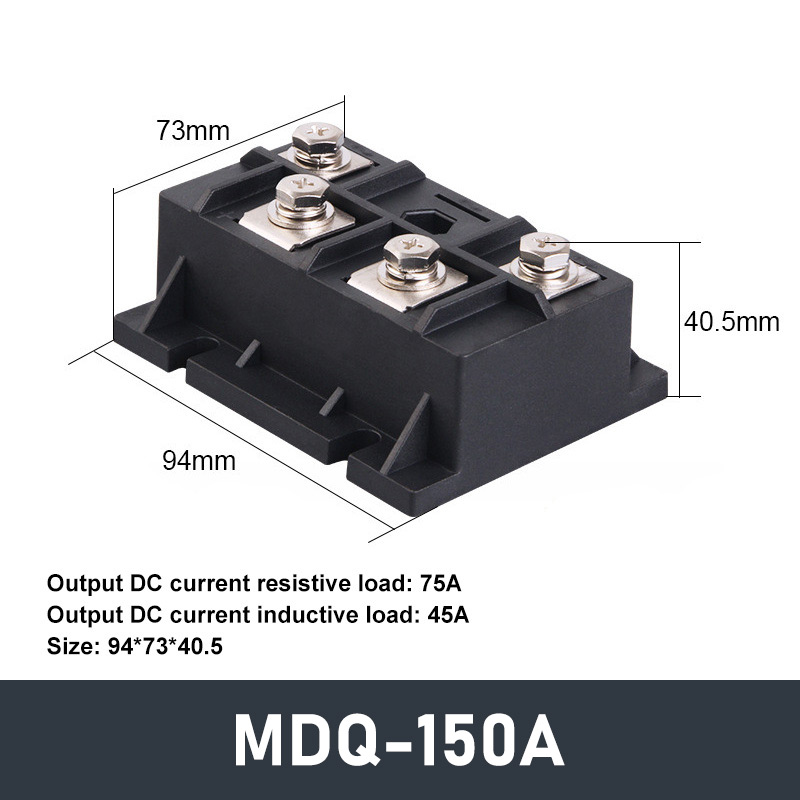

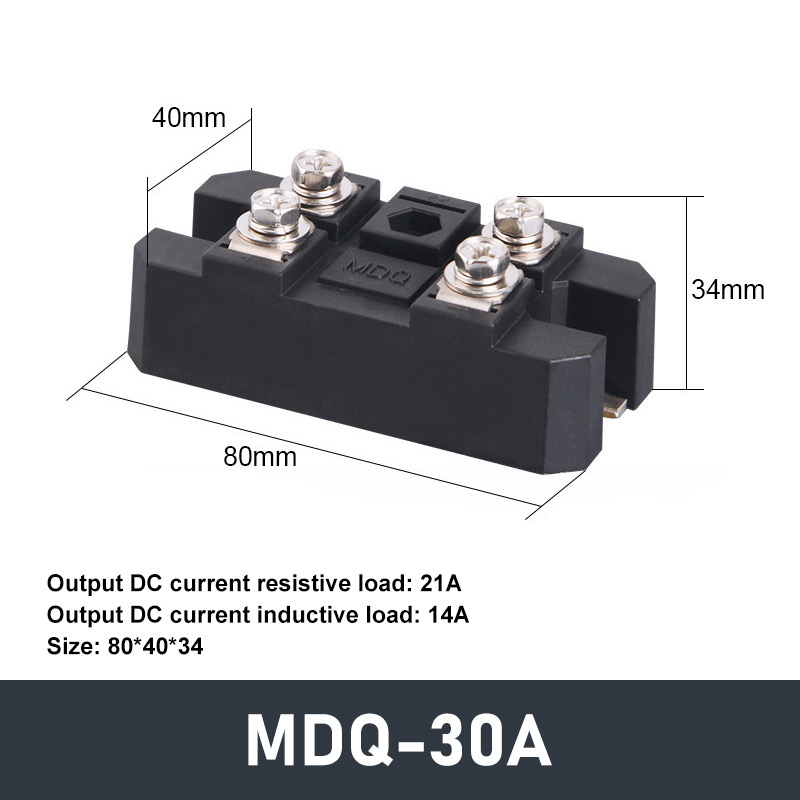

Outline Dimension Drawing
